Conveyor Pipe Feeder vs Cylinder Pipe Pusher: Which System Is Right for Your Project?
Choosing between a conveyor-based pipe feeder and a cylinder-based pipe pusher is one of the most consequential equipment decisions on a large-diameter trenchless pipeline project. Each system has distinct operational characteristics, and selecting the wrong one can cost significant time and money.
The Core Mechanical Difference
Cylinder-Based Pipe Pushers
Cylinder-based systems use hydraulic cylinders to apply force in strokes. Each stroke covers a fixed distance — typically 3 to 10 feet. At the end of each stroke, the system must release the grip on the pipe, retract the cylinders to the starting position, and re-engage the pipe for the next stroke. This stop-and-start sequence is the defining limitation of cylinder-based systems.
Conveyor-Based Pipe Feeders

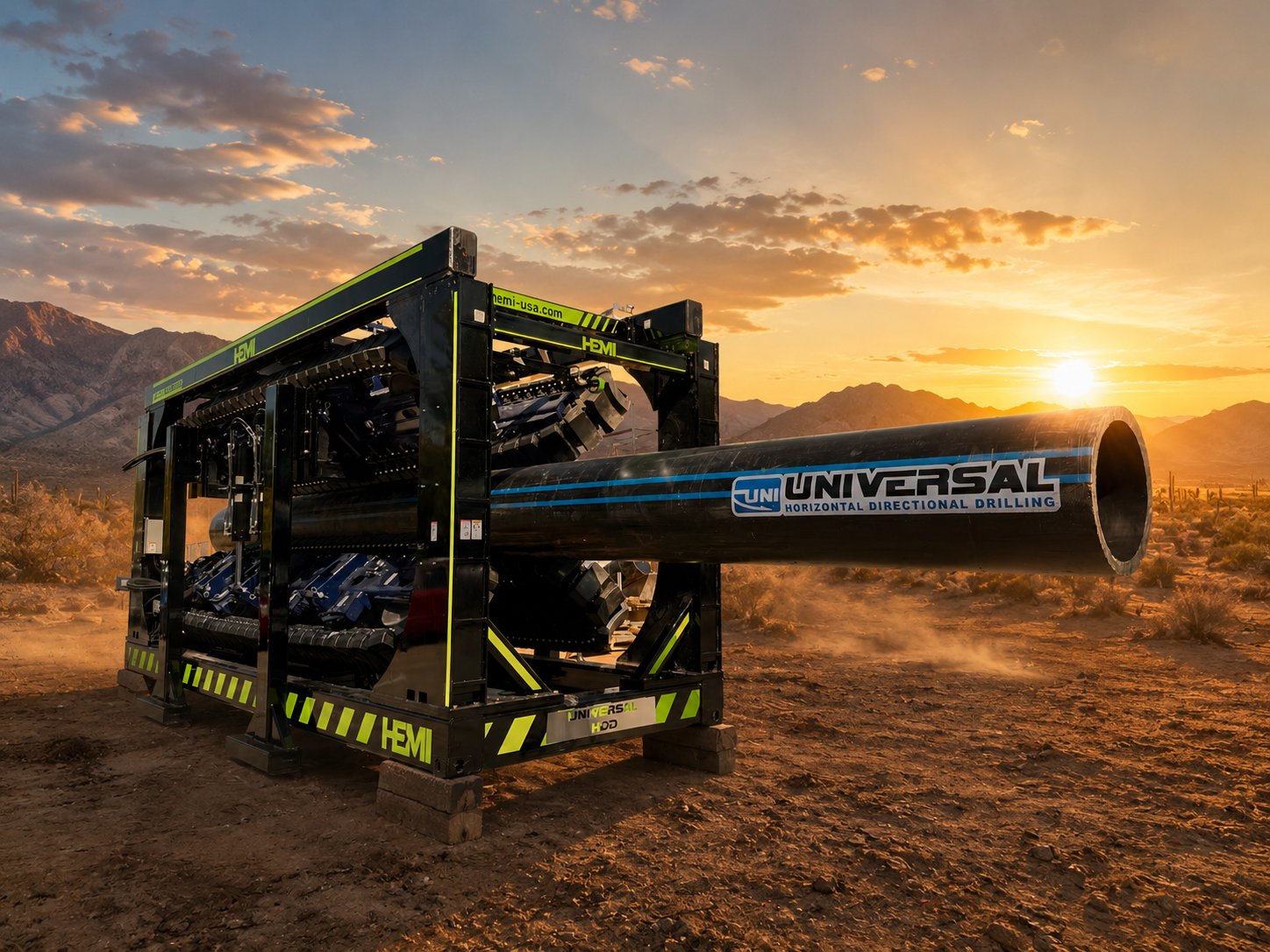

A conveyor pipe feeder uses multiple hydraulic tracks — in the case of the UNI-PF250, four tracks arranged at 45° intervals around the pipe — to apply force continuously. The tracks grip the pipe and drive it forward without stopping. There is no stroke cycle, no release, and no retraction.
Why Continuous Movement Matters
Every time a cylinder-based system stops and restarts, it must overcome static friction — the resistance between the pipe surface and the surrounding soil. Static friction is consistently higher than dynamic friction. In practice this means:
•      The system must generate a spike of force at each restart to break static friction
•      This spike transmits shock loads into the pipe wall
•      The bore face experiences sudden pressure changes, which can cause soil instability
•      In water crossings, pressure fluctuations can compromise bore integrity
A conveyor-based pipe feeder eliminates static friction spikes entirely. Because the pipe never stops moving, dynamic friction remains the only resistance — which is lower, more predictable, and easier to control.
Performance Comparison
Push Force
The UNI-PF250 delivers 200 short tons continuously and 250 short tons intermittently. Cylinder-based systems of comparable ratings exist, but their effective output is reduced by the inefficiency of the stroke cycle.
Installation Speed
Conveyor systems typically achieve higher average installation rates because there is no dead time between strokes. On long crossings, this advantage compounds significantly.
Pipe Protection
High-durometer rubber pads on the UNI-PF250 distribute clamping force across the pipe surface without concentrating stress at contact points. Cylinder systems often use rigid clamping shoes that can mark or deform pipe coating.
Site Logistics
The UNI-PF250 ships as three modular units and requires no crane for assembly. Many cylinder-based systems require crane lifts and larger mobilization crews.
When to Choose a Cylinder-Based System
Cylinder-based systems remain appropriate for:
•      Pipe diameters below 20 inches where clamping area is limited
•      Short crossings where the reset cycle does not materially impact schedule
•      Budget-constrained projects where lower capital cost outweighs operating efficiency
When to Choose a Conveyor Pipe Feeder
A conveyor pipe feeder like the UNI-PF250 is the correct choice when:
•      Pipe diameter is 20 inches or larger (up to 56 inches)
•      The crossing is long enough that stop-start cycles create measurable delay
•      Ground conditions require consistent face pressure — river crossings, soft soils, high water table
•      Pipe coating or wall integrity must be protected from shock loads
•      Microtunneling, pipe jacking, or Direct Pipe® tunneling operations require continuous TBM feed
Total Project Cost Perspective
The capital cost of a conveyor pipe feeder is higher than a basic cylinder system. However, on a project level:
•      Faster installation = fewer crew-days on site
•      No bore instability incidents = no costly recovery operations
•      No pipe coating damage = no inspection failures or repair costs
•      Modular installation = lower mobilization cost per project
Talk to Our Engineering Team
Universal HDD engineering provides project-specific recommendations based on pipe diameter, crossing length, and ground conditions. Contact us at unihdd.com or call (847) 857-7009
