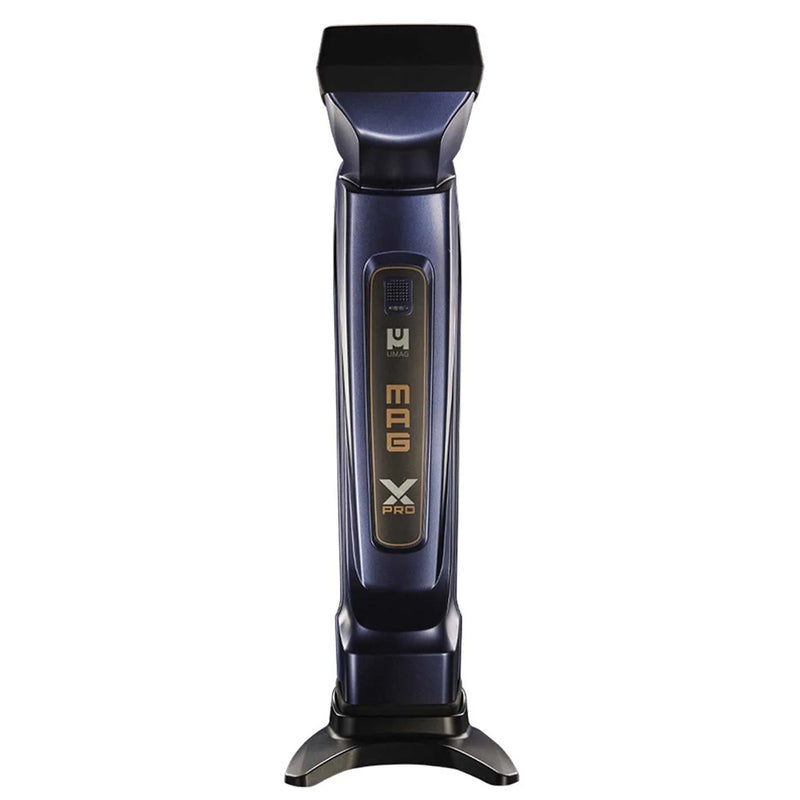

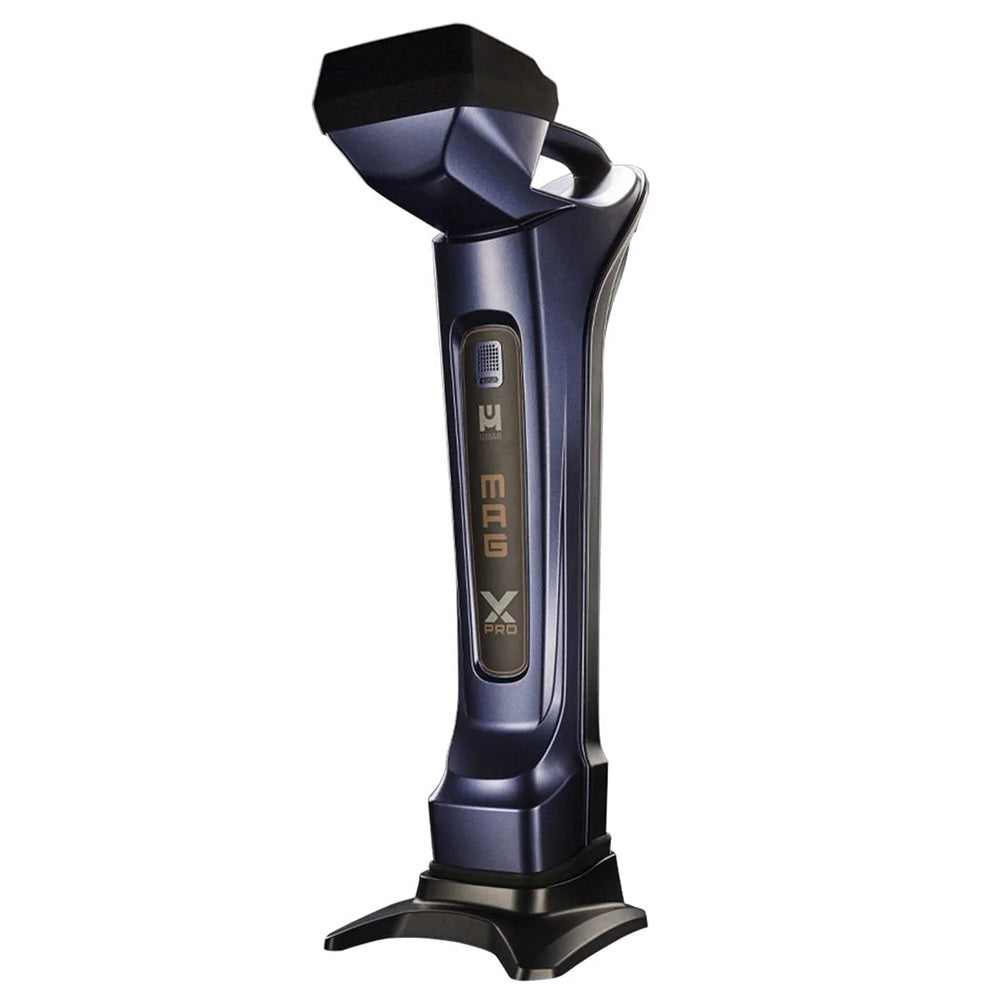

Underground Magnetics Mag X PRO
Underground Magnetics Mag X PRO
Underground Magnetics Mag X PRO
Underground Magnetics Mag X PRO
Underground Magnetics Mag X PRO

Underground Magnetics Mag X PRO

by Underground Magnetics
$20,000.00 - $20,000.00
$20,000.00
$20,000.00 - $20,000.00
$20,000.00
Parameter Specification
Weight 8.5 lbs
Dimensions 29 × 9 × 13 in
Antenna Solid Core 3D Antenna Cluster
Compatible Transmitter Echo 110, Echo 50, Echo 50XF, Echo 70, Echo 90, Echo X-Mini, Echo 60, Echo 75XF, Echo ST
System Frequency 16 Frequencies, .325kHz – 41kHz
Temperature Range -4°F to 140°F (-20°C to 60°C)
Radio Frequency 915 MHz (US) / 433MHz (EU) / 867 MHz (IN)
Telemetry 4 Radio Channels with range up to 3,000 ft (900m)
Power Rechargable Lithium Battery 12.5V
Battery Life 50 hours

Key Features  Mag X PRO

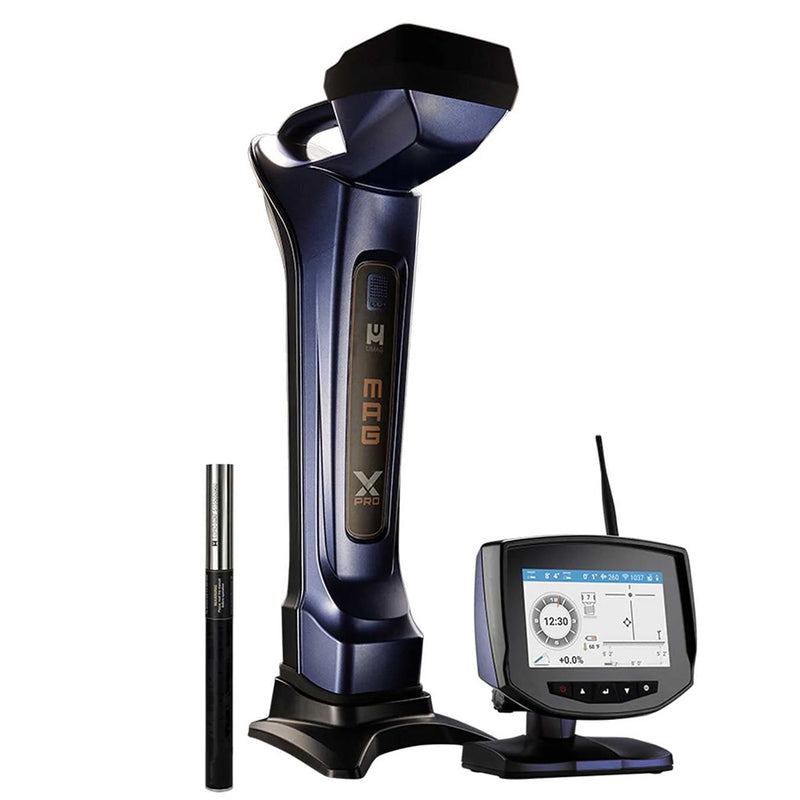

Mag X PRO System — Power and Precision for Every Bore

Paired with the Echo 75XF 19" transmitter and driven by a revolutionary solid-core 3D antenna cluster, the Mag X PRO pushes locating performance further than any system in its class — with extended range at sub-kHz frequencies where other locators fall short.

Core Features

Revolutionary Solid Core 3D Antenna Cluster
— Extended range for superior performance in sub-kHz frequencies

Echo 75XF 19" Transmitter
— Three adjustable power levels for versatile operation:

  • Low: 114 feet / 100-hour battery life
  • Medium: 180 feet / 60-hour battery life
  • High: 278 feet / 11-hour battery life

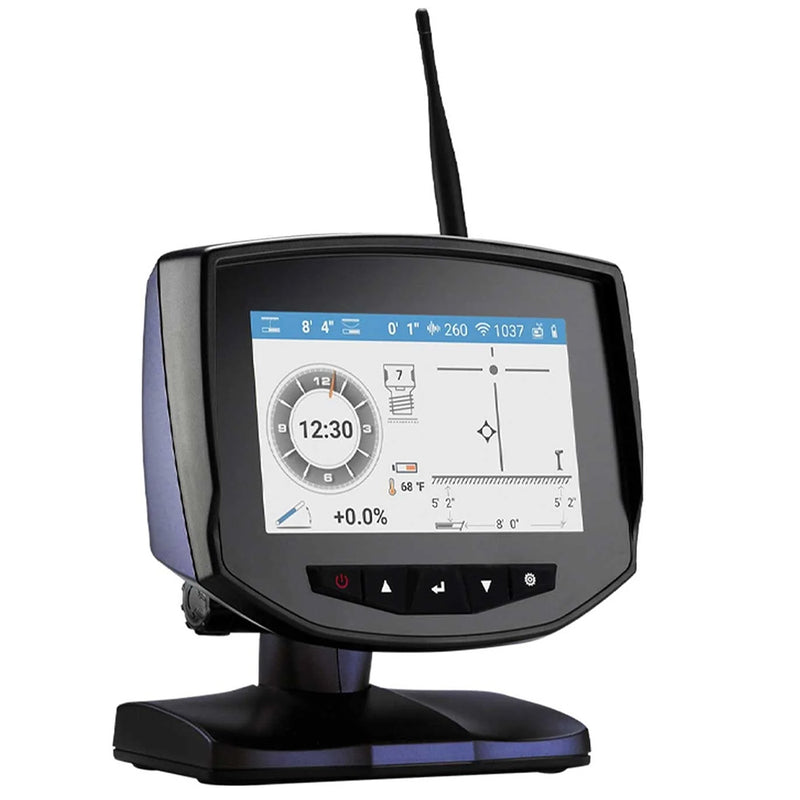

Advanced Data Management
— Built-in, one-touch data logging integrated into the remote drill display
— Rodwise and chart views with options to edit and add utility crossings
— Data easily emailed directly from the display or synced with the UMmaps web portal

DOWNLOAD SPECIFICATIONS CALL (847) 955-0050

Data Logging Underground Magnetics Mag X COR

Mag X COR HDD Locating System — Professional Underground Locating for Directional Drilling

The Mag X COR HDD Locating System is a professional locating solution designed for horizontal directional drilling operations. Built by Underground Magnetics and available through Universal HDD — an authorized dealer serving HDD contractors across the United States — this system delivers reliable underground tracking, accurate bore guidance, and integrated data logging for modern drilling crews.

Engineered for contractors performing utility installation, telecommunications infrastructure, pipeline construction, and municipal projects, the Mag X COR provides consistent locating performance across a wide range of soil conditions — from urban environments with heavy interference to open-field utility crossings.

The system combines a rugged stand-up receiver with a high-visibility 4" reflective LCD display and a 7" Android-based touchscreen drill monitor, giving operators real-time access to depth, pitch, and bore path data directly at the rig. With 16 operating frequencies ranging from 0.325 kHz to 41 kHz, the Mag X COR maintains accurate signal detection in challenging underground conditions including rebar-dense areas, active utility corridors, and high-interference job sites.

Integrated data logging allows drilling crews to document every bore rod by rod, record utility crossings, and generate project reports directly from the drill display — simplifying compliance and project documentation without additional equipment or manual record-keeping.

With a telemetry range of up to 3,000 feet, IP65 waterproof rating, and 50-hour battery life, the Mag X COR HDD locating system is built to perform through full working days in demanding field conditions.

Universal HDD supplies the complete Underground Magnetics product line with full dealer support, operator training, and nationwide delivery. Contact our team to learn more about the Mag X COR system or to request a quote for your operation.
