What Is a Pipe Feeder? Complete Guide to Conveyor-Based Pipe Pushing Systems
A pipe feeder is a specialized piece of heavy equipment used in trenchless pipeline construction. Its primary purpose is to apply controlled axial force to a pipeline, pushing it through the ground without the need for open excavation.
Unlike traditional open-cut methods, a pipe feeder enables pipeline installation under rivers, roads, railroads, and other surface obstacles while maintaining full surface integrity.
How Does a Pipe Feeder Work?
A pipe feeder grips the exterior of a steel pipeline and applies continuous longitudinal force — pushing the pipe forward through pre-bored soil or alongside a TBM in microtunneling operations.
The UNI-PF250 uses a 4-track conveyor system that maintains steady contact with the pipe surface at all times. Four hydraulic tracks, each equipped with high-durometer steel-backed rubber pads, generate the clamping force necessary to push without damaging the pipe wall.
This conveyor-based design delivers continuous movement — as opposed to cylinder-based systems that stop and reverse every few feet to reset.
Conveyor Pipe Feeder vs Cylinder-Based Systems
Cylinder-Based Systems (Traditional)
Cylinder-based pipe pushers use hydraulic cylinders to push the pipe in strokes — typically 3 to 10 feet per cycle. After each stroke, the system must release, retract, and re-engage before the next push. This stop-and-start motion creates:
•      Static friction spikes at each restart
•      Inconsistent face pressure in the bore
•      Risk of ground instability, especially in soft soils
•      Slower overall installation rates
Conveyor-Based Systems (UNI-PF250)
The UNI-PF250 maintains uninterrupted axial movement. The 4-track system continuously drives the pipeline forward, eliminating the cycle of stop, reset, and restart. Benefits include:
•      Zero static friction spikes
•      Consistent and controllable face pressure
•      Faster pipe installation rates
•      Improved bore stability, especially in water crossings
What Pipe Diameters Does a Pipe Feeder Handle?
Pipe feeders are manufactured for specific diameter ranges. The UNI-PF250 is engineered for steel pipelines with outer diameters from 20 to 56 inches — covering the full range of large-diameter oil, gas, and water transmission pipelines.
The clamping system is hydraulically adjustable, allowing it to accommodate different wall thicknesses and OD dimensions within this range.
Where Is a Pipe Feeder Used?
Pipe feeders are essential on any trenchless project where:
•      The bore length requires sustained axial force over a long distance
•      A pipeline must cross under a river, road, or railroad
•      Ground conditions require consistent face pressure to prevent collapse
•      Large-diameter steel pipe (20+ inch) must be installed without welding interruptions
•      Microtunneling, pipe jacking, or Direct Pipe® tunneling operations require continuous push force behind the TBM
Common Applications:
•      River crossings for oil and gas pipelines
•      Road and highway crossings for transmission pipelines
•      Railroad underbores for water and gas mains
•      HDD pullback assistance for large-diameter pipe
•      Direct Pipe® tunneling — simultaneous bore and pipe installation with TBM
•      Urban pipeline installations where surface disruption must be minimized
Key Technical Specifications to Evaluate
Continuous Axial Force
The rated sustained push force the system can deliver without interruption. The UNI-PF250 delivers 200 short tons continuously.
Intermittent Force
Peak force available for short durations when soil resistance increases. The UNI-PF250 reaches 250 short tons.
Pipe Diameter Range
Confirm the system supports your pipeline's OD and wall thickness. The UNI-PF250 supports 20–56 inches.
Drive System
Conveyor-based systems offer continuous movement; cylinder-based systems operate in strokes. The UNI-PF250 uses a 4-track conveyor at 45° radial orientation.
Power Source
The UNI-PF250 operates with a 300 HP autonomous power pack and can also be powered by a connected drilling rig.
Installation Footprint
Crane-free, modular systems simplify logistics on constrained sites. The UNI-PF250 ships in 3 modular units requiring no crane for assembly.

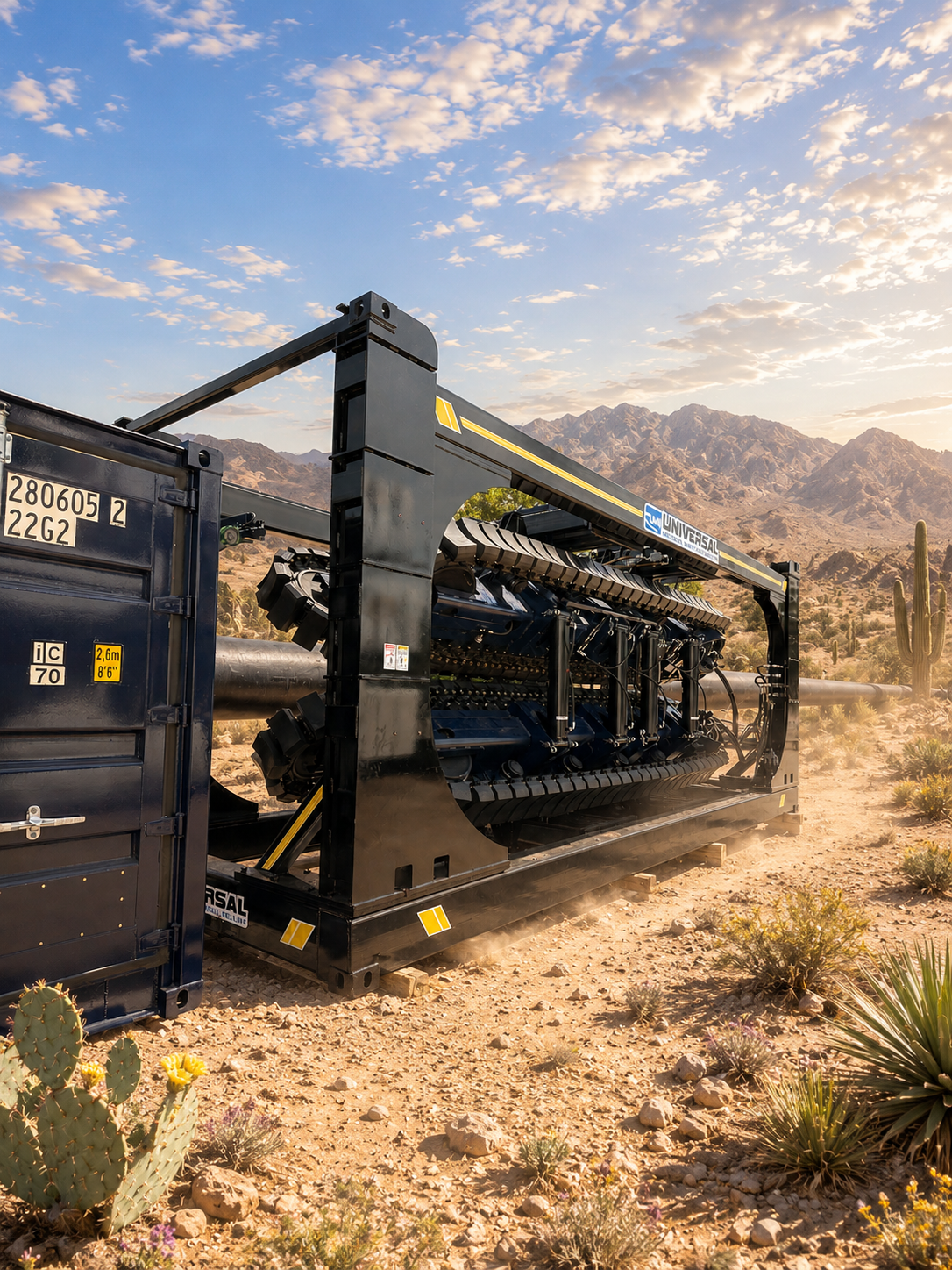

The UNI-PF250 Pipe Feeder by Universal HDD
The UNI-PF250 is a 200-short-ton conveyor-based pipe feeder manufactured by Universal HDD in Lake Zurich, Illinois. It bridges the gap between lightweight pipe feeders and heavy cylinder-based pipe pushers — providing high-force, continuous operation in a modular, crane-free package.
The system ships as three modular units, each transportable by standard flatbed. Assembly on-site does not require a crane, significantly reducing mobilization cost and time.
The UNI-PF250 includes a panoramic climate-controlled operator cab, an integrated diagnostic system, and real-time video monitoring — designed for full-shift operation in extreme field conditions.
How to Request a Quote or Technical Specifications
Universal HDD provides full technical specifications, dimension drawings, and project-specific consultation for the UNI-PF250. To request specifications or discuss your project requirements, contact the Universal HDD engineering team at unihdd.com or call (847) 857-7009. Standard lead time is 16–18 weeks from order confirmation.
