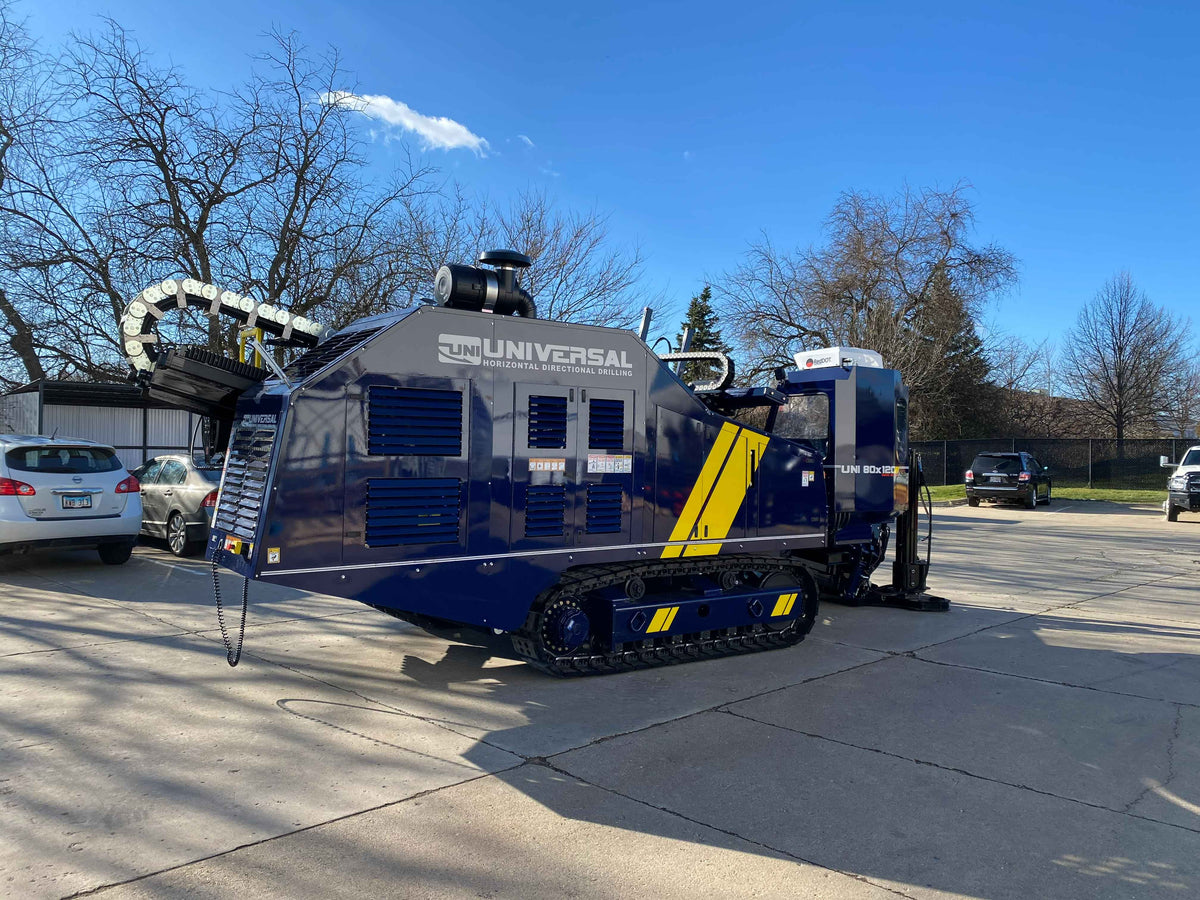

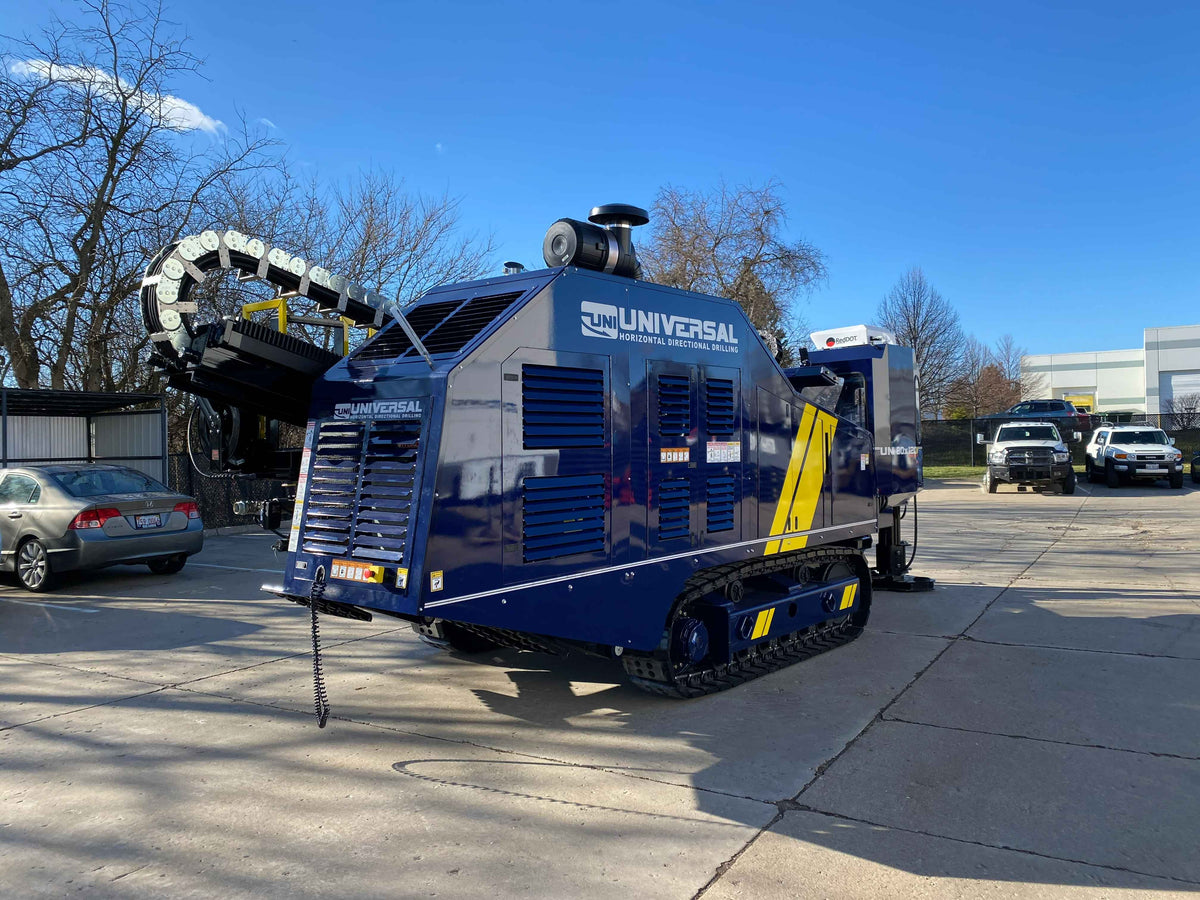

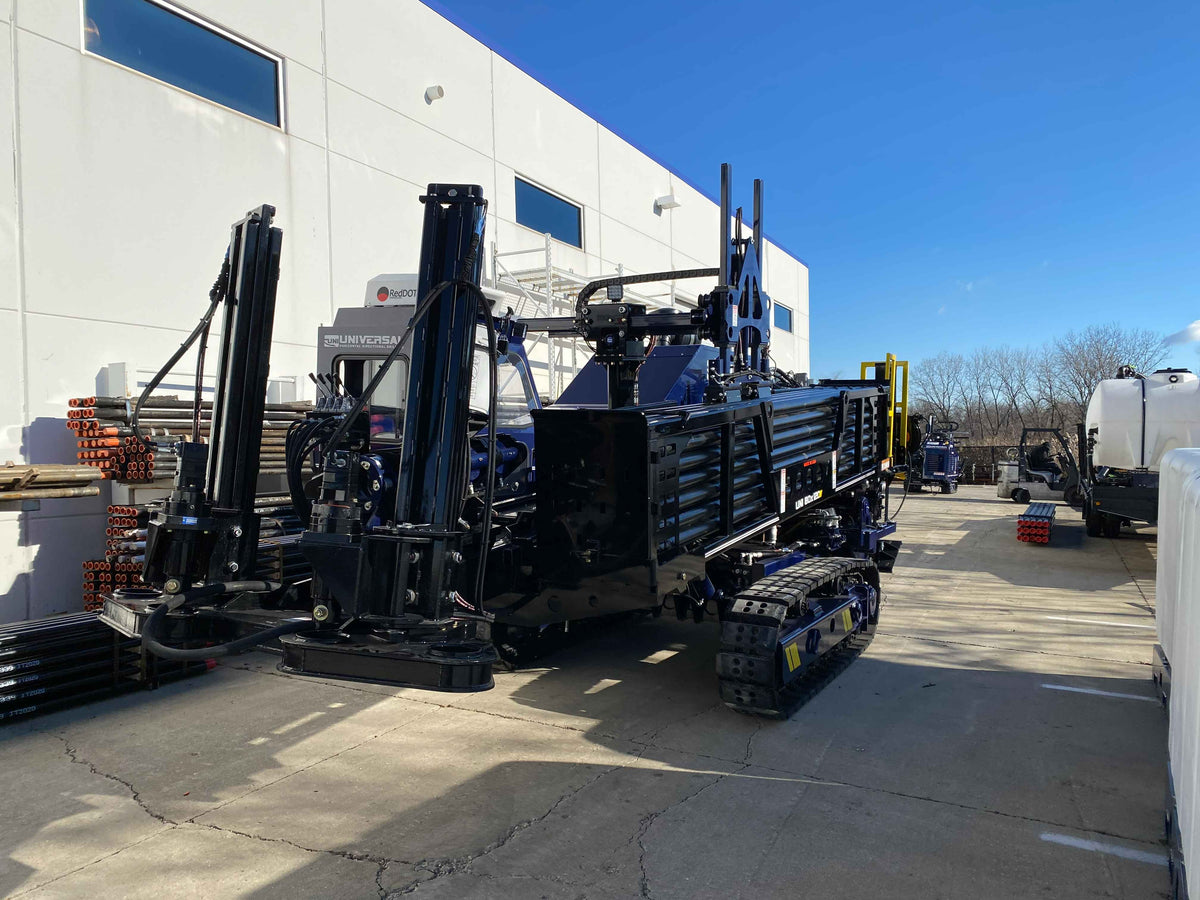

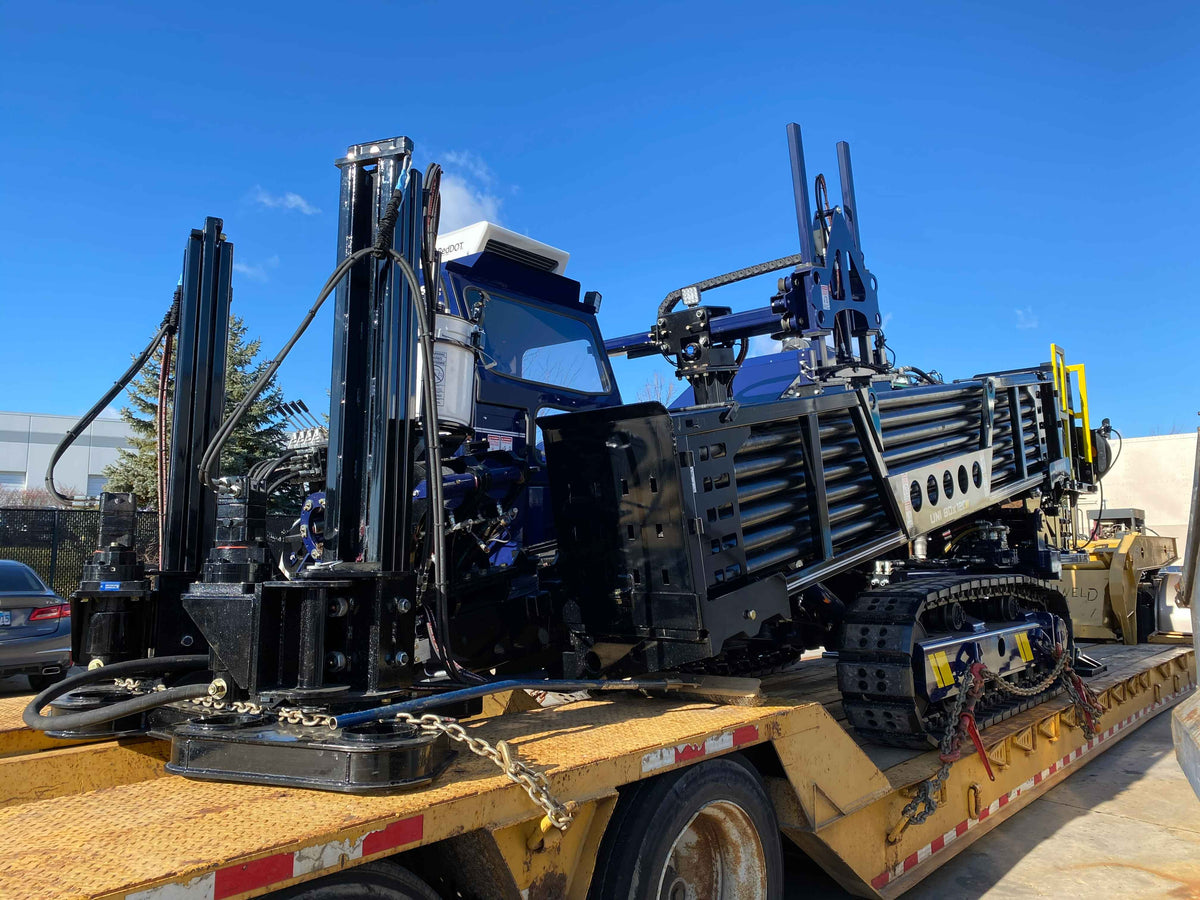

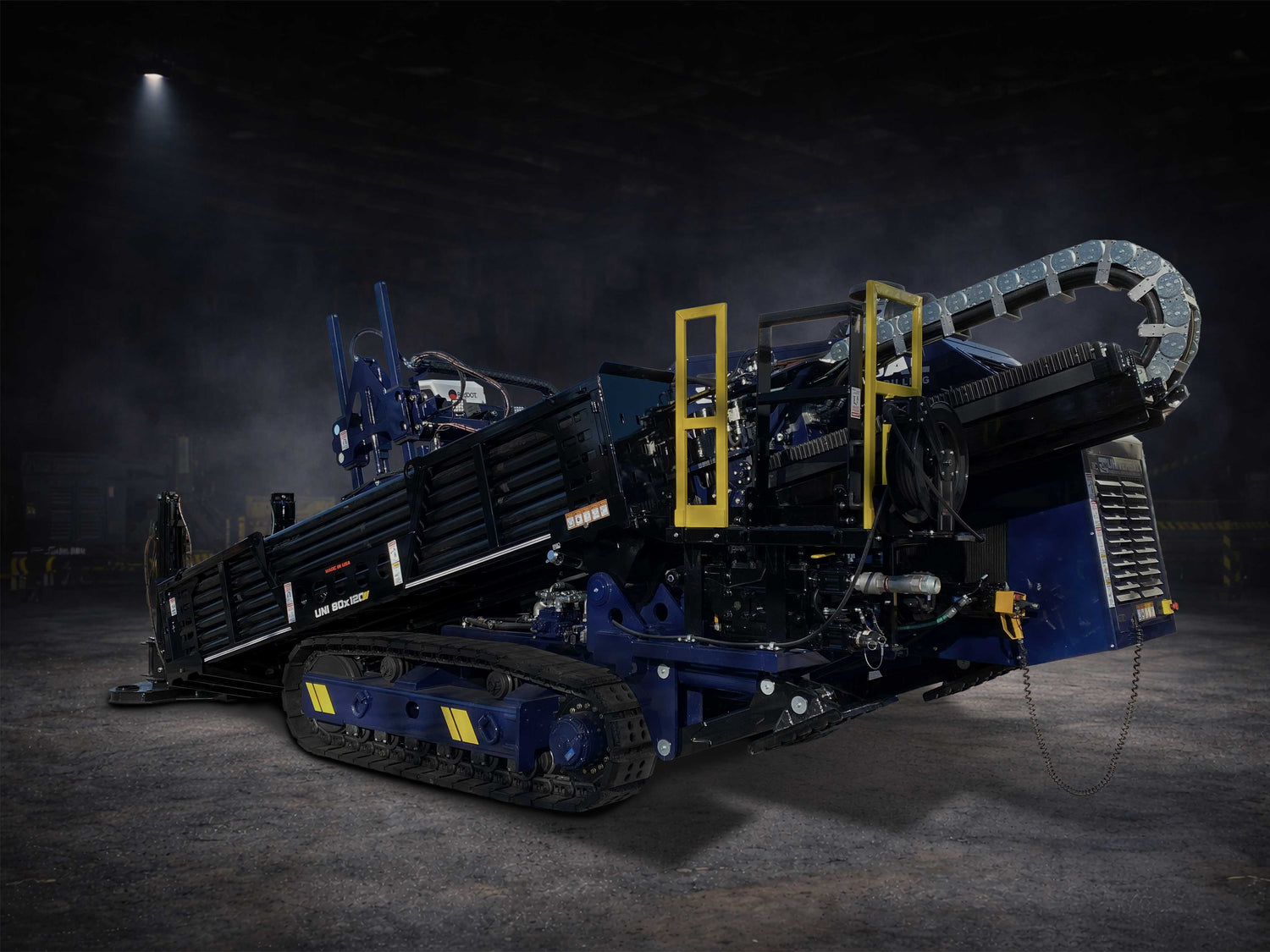

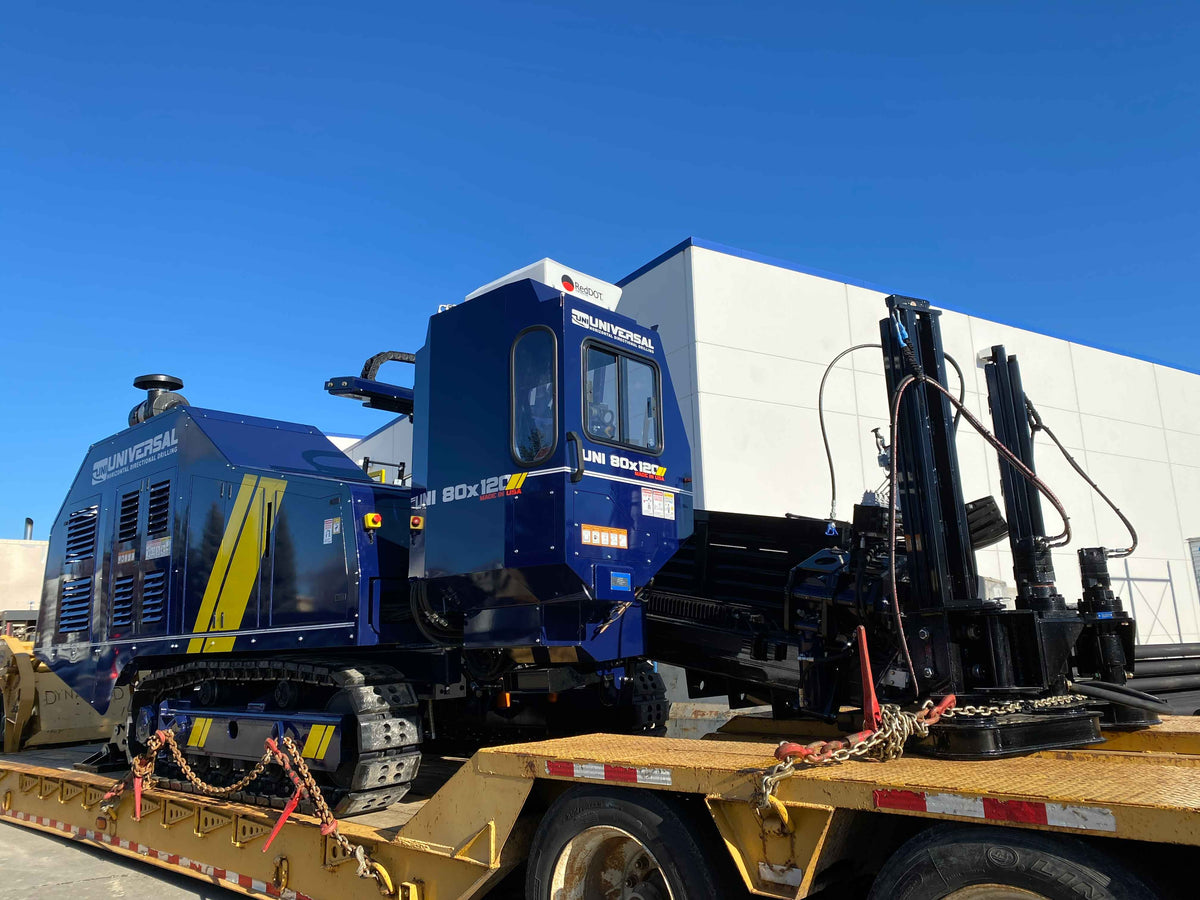

Specification, Dimensions and Features:

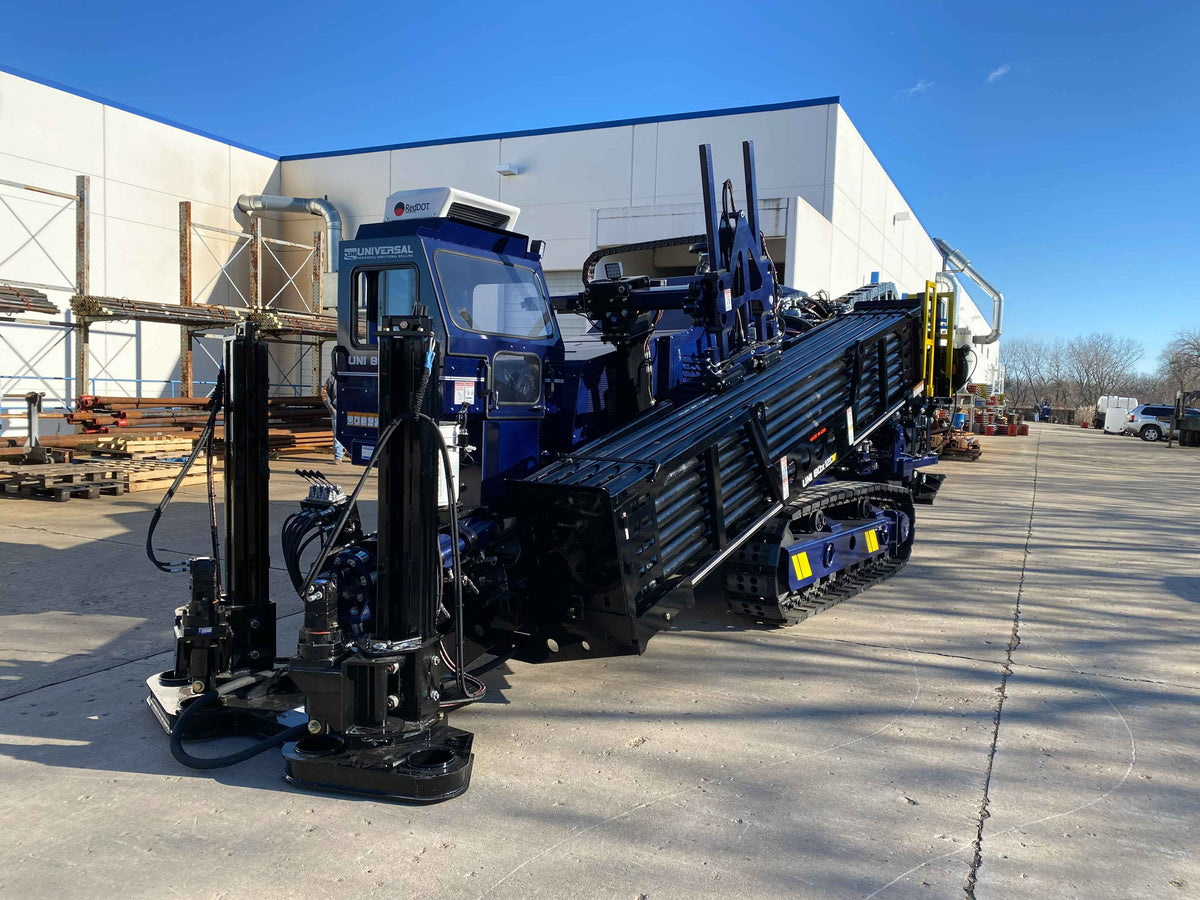

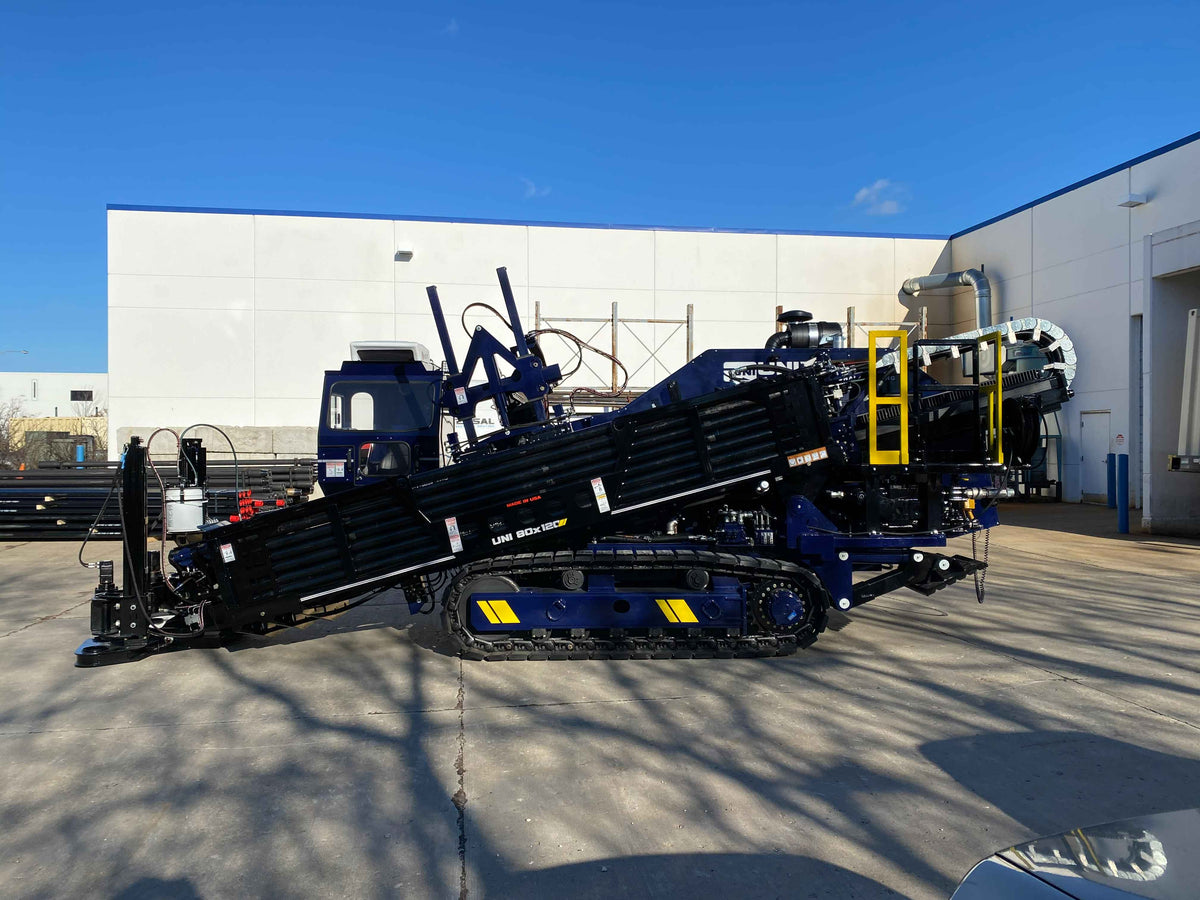

Dimensions and Weight

Parameters USA Metric
Length 322 inch 818 cm
Width 94 inch 239 cm
Height 104 inch 264 cm
Weight (w/o drill rods) 35000 lbs 15876 kg

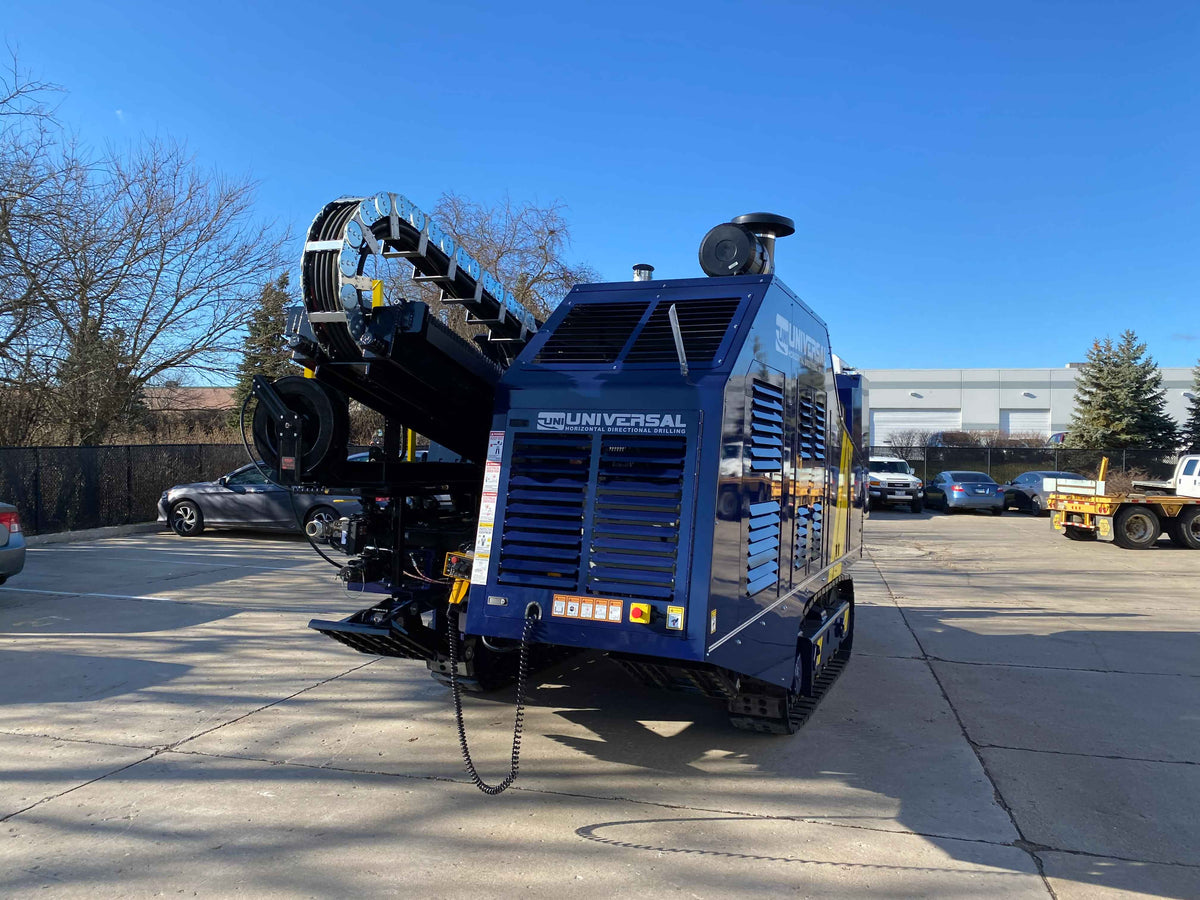

Engine Specification

Parameters USA Metric
Make and model John Deere Turbo Diesel
Fuel Type Diesel
Gross Horsepower 200 hp 149.1 kw
Rated RPM 2400 rpm
EPA Certification Tier IV

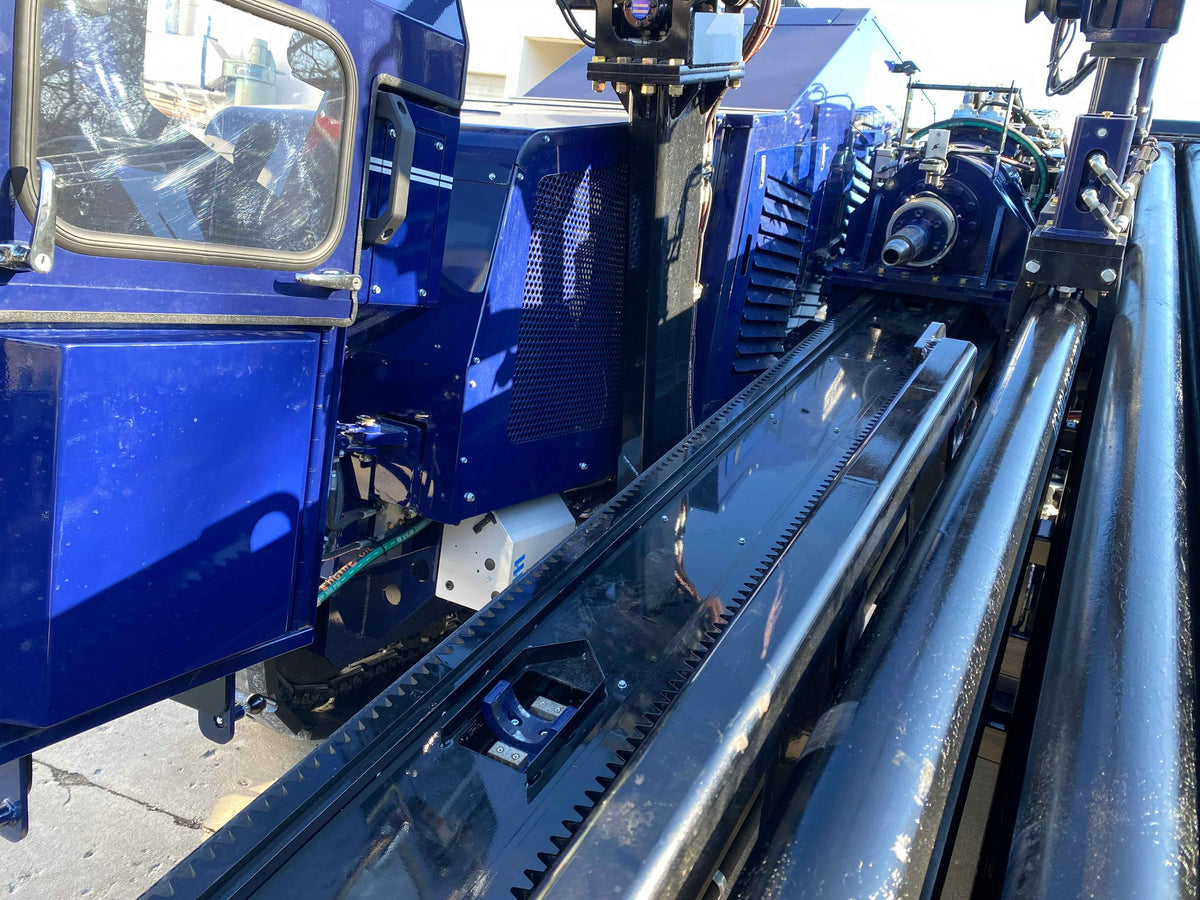

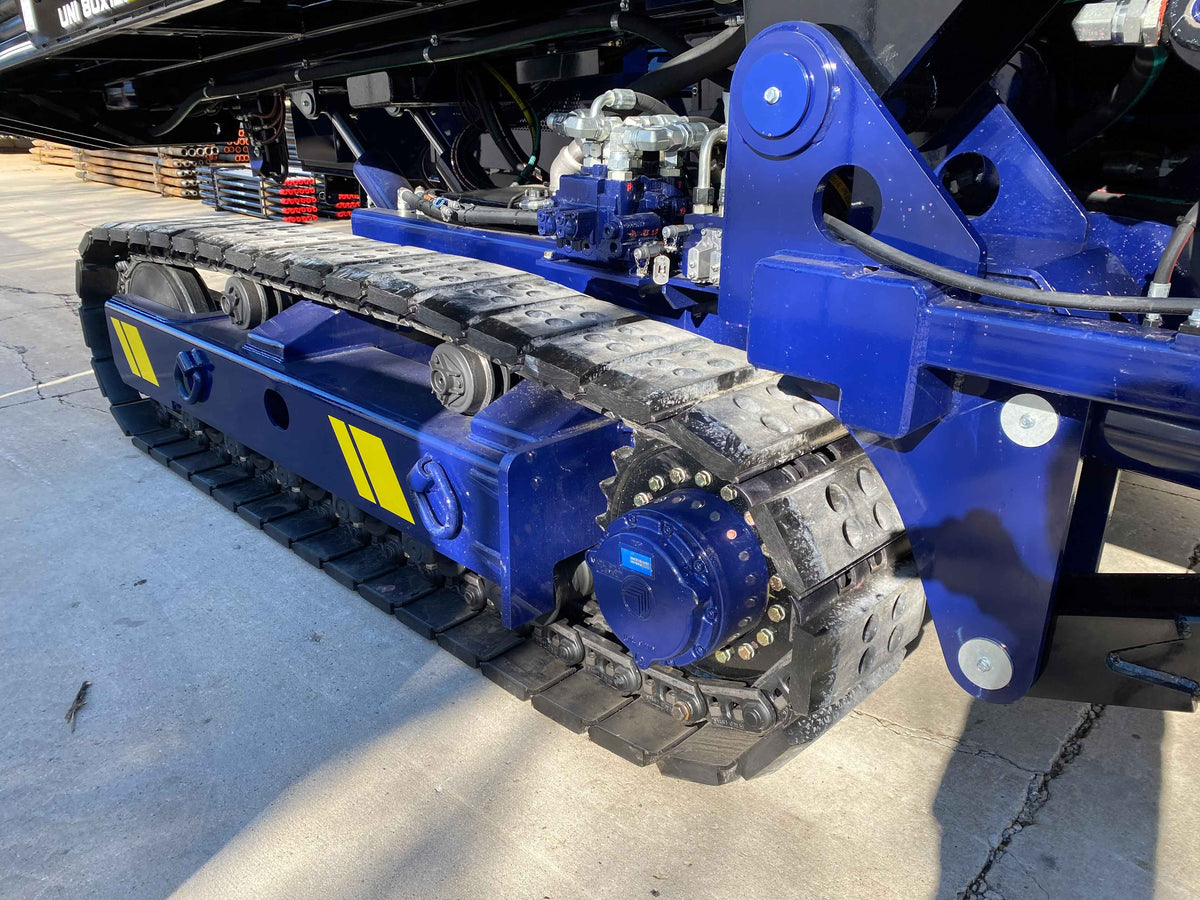

Operational Specification

Parameters USA Metric
Thrust 80000 lbs 355.9 kN
Pullback 80000 lbs 355.9 kN
Spindle Torque (Low) 5000 ft-lb 6779.1 Nm
Spindle Torque (High) 10000 ft-lb 13558.2 Nm
Rotation Speed (Low) 80 rpm
Rotation Speed (High) 160 rpm
Operating Angle 18 °

Drill Pipe Specification

Parameters USA Metric

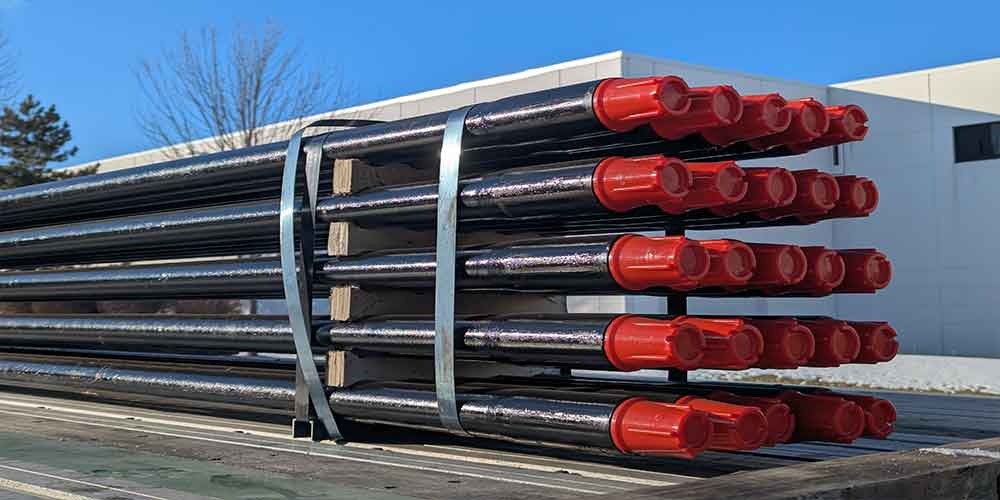

3 1/2" FS1 (Vermeer® compatible) 15 ft 4.6 m

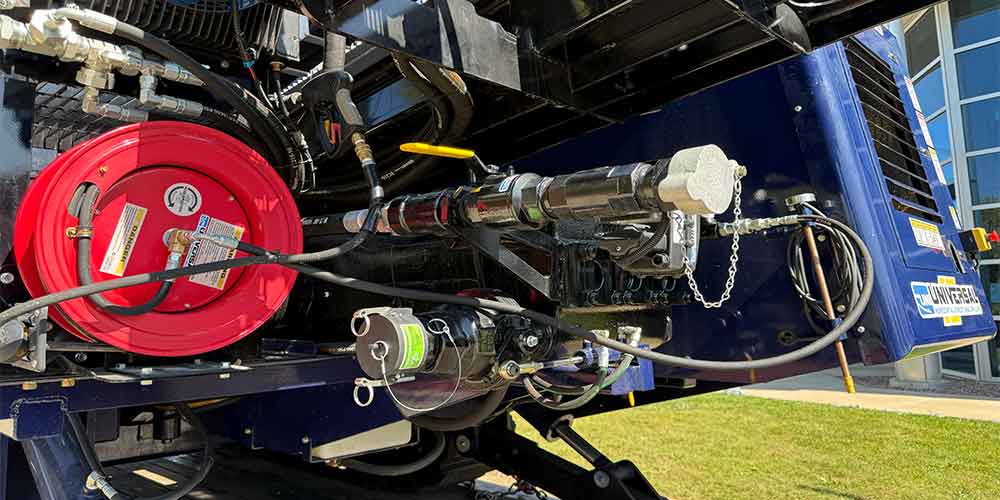

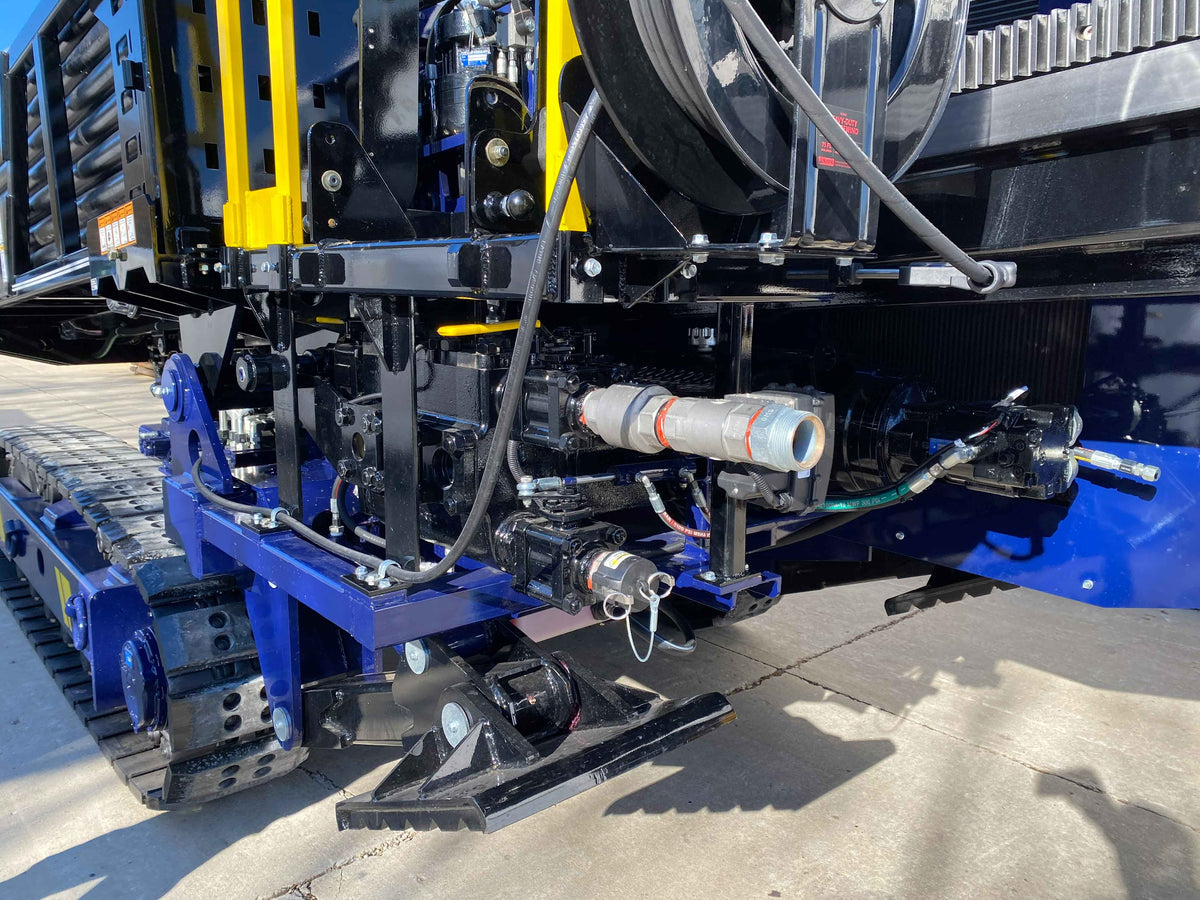

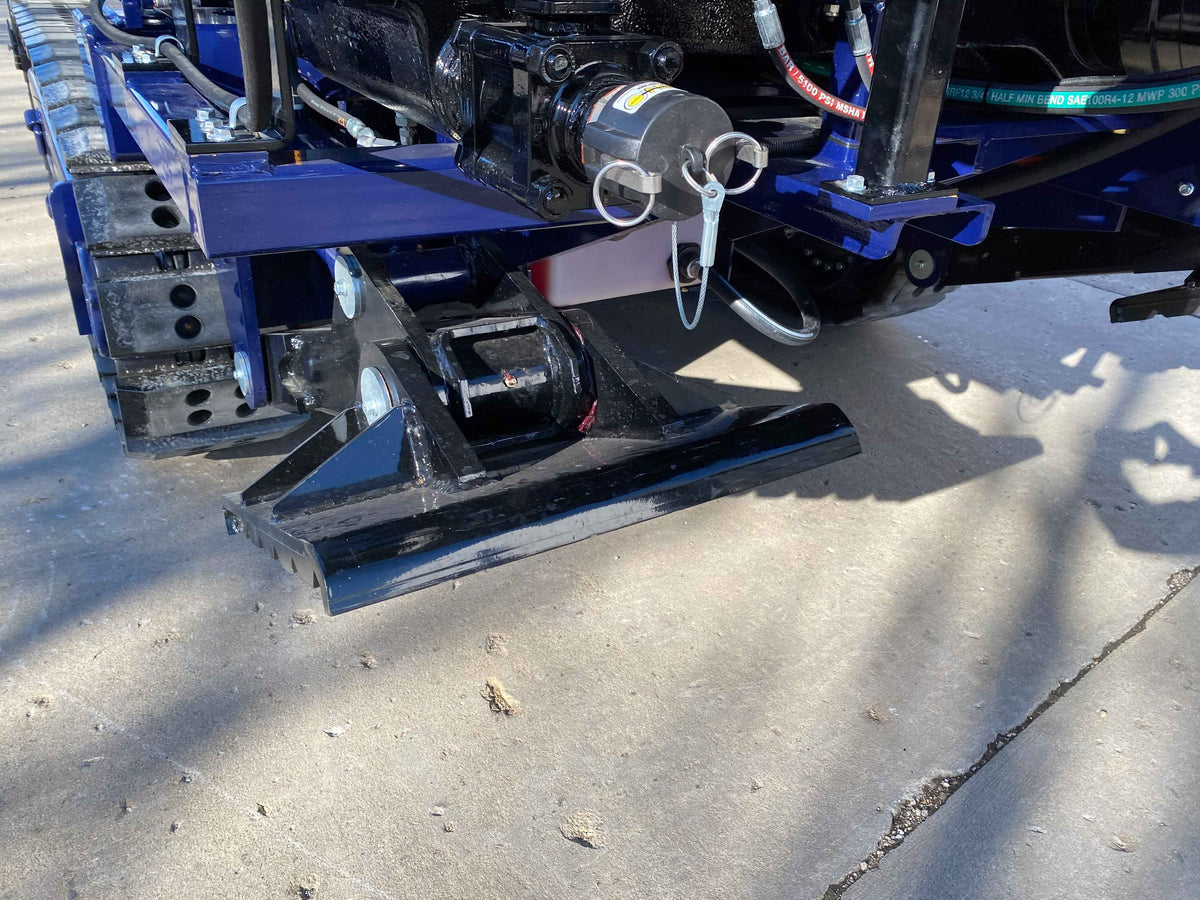

Fluid Specification

Parameters USA Metric
Make and model Kerr KT-3350PT
Flow (*Max) 188 gpm 712.5 lpm
Pressure (*Max) 963 psi 66.4 bar
Fuel Tank 43 gal 162.8 lit
Hydraulic Tank 109 gal 412.6 lit

Features

Feature Available Notes

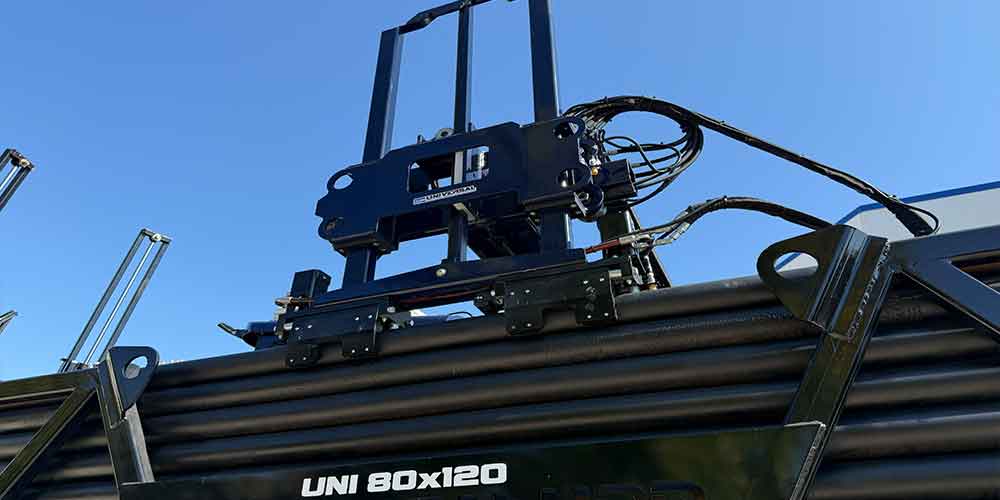

Automatic Rod Loader Yes

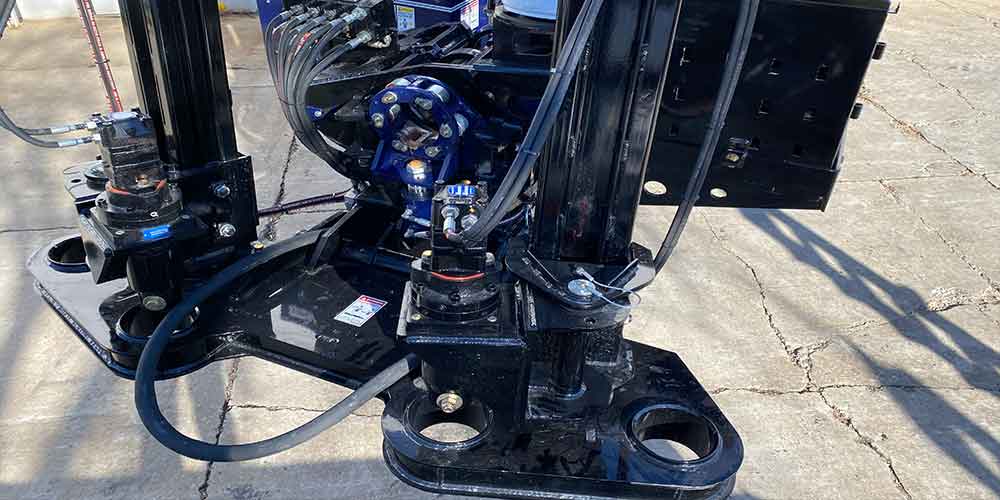

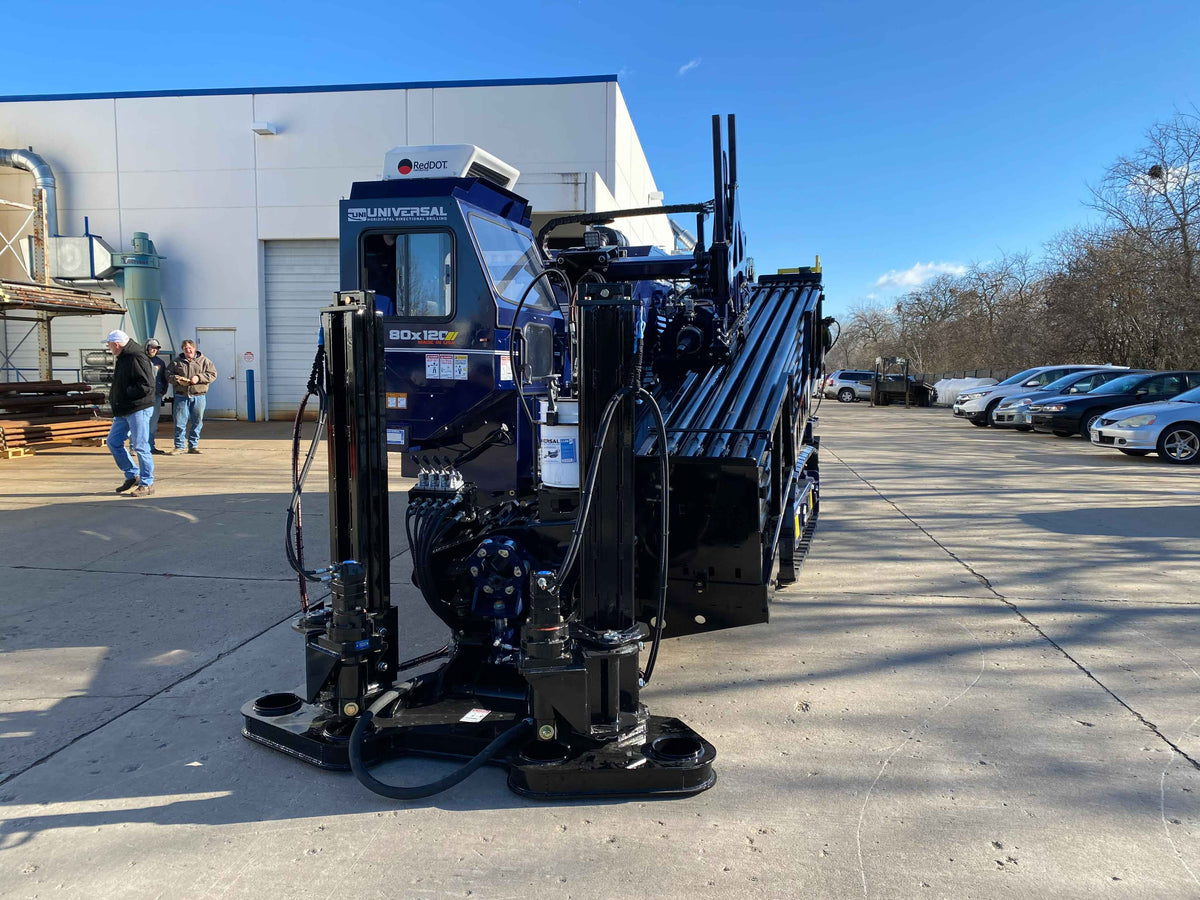

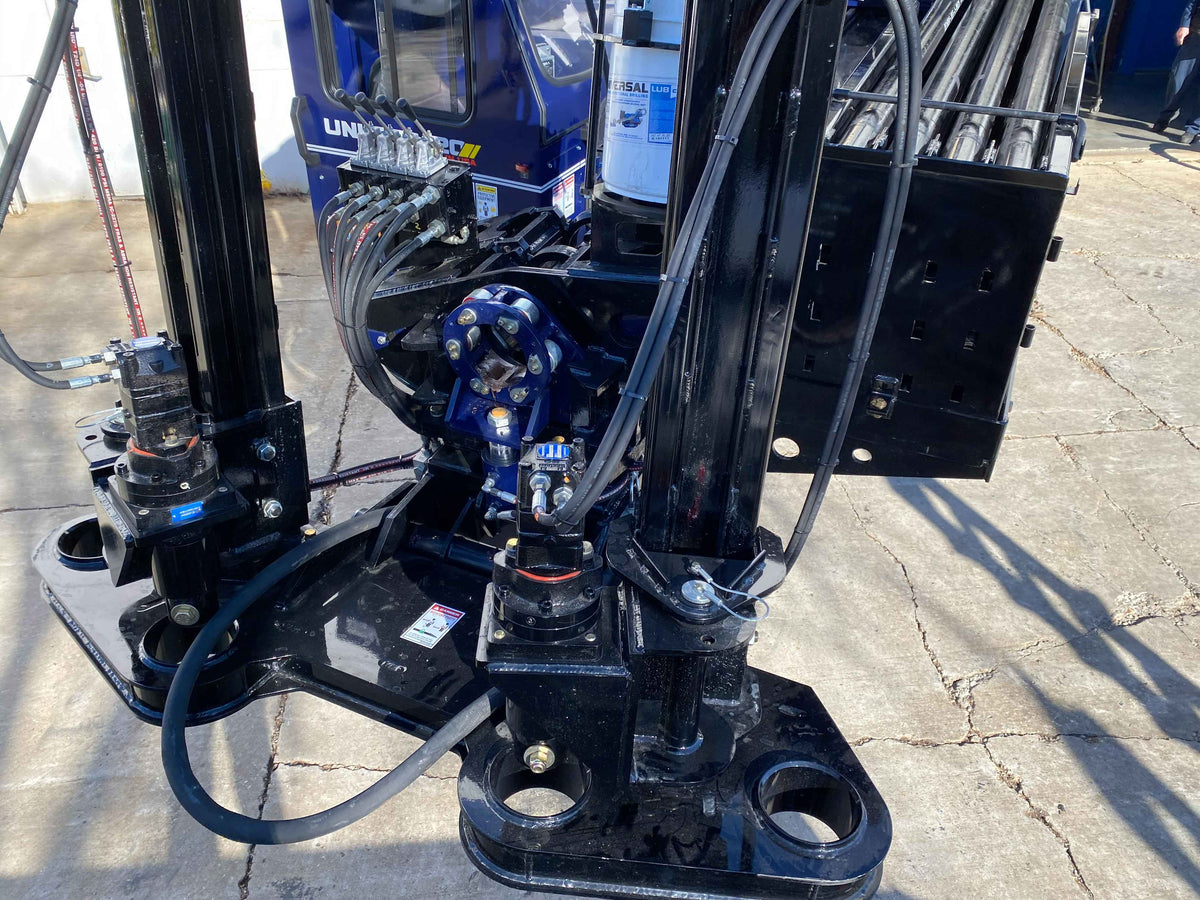

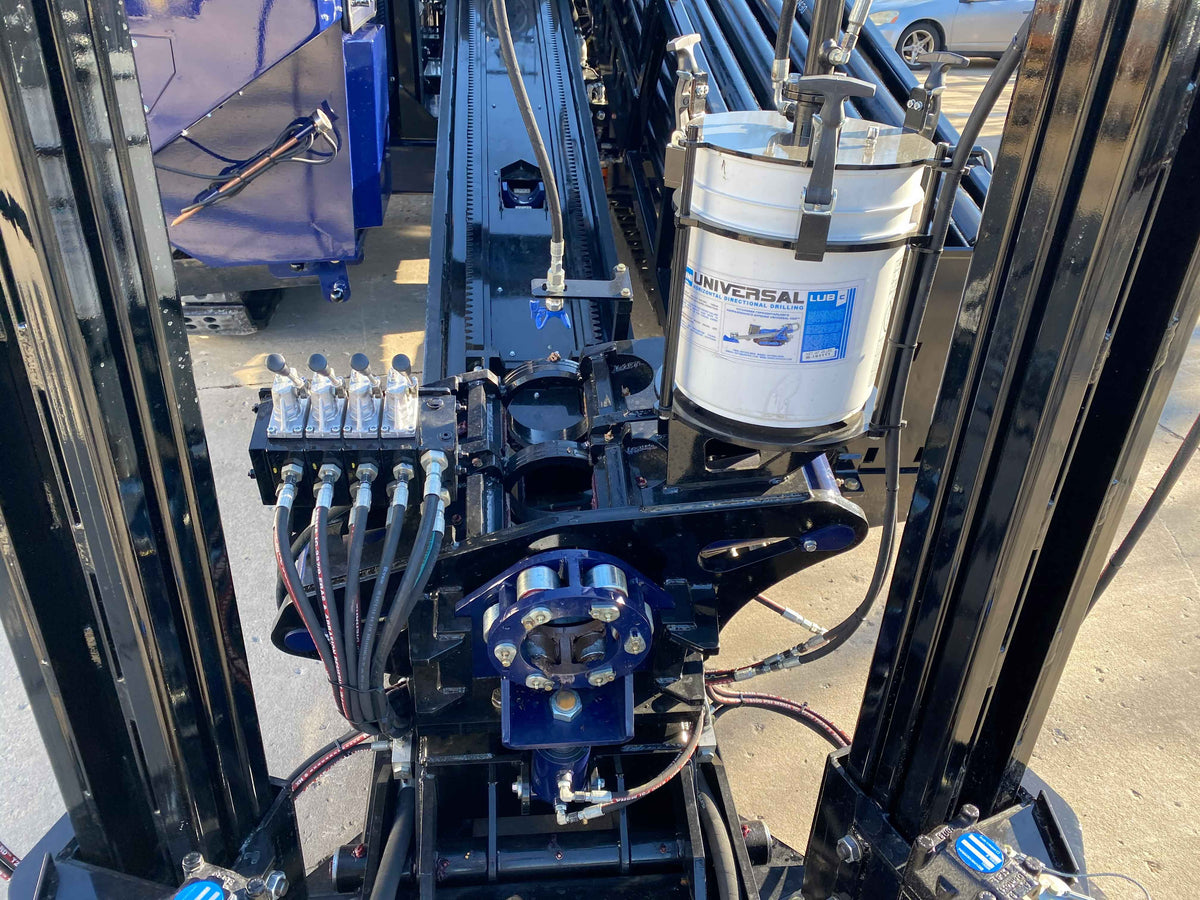

Stake-down System Yes 4 Point Auger System
Strike Alert Yes
Mud Flow Indicator Yes
Support Lights Yes
Auto Rod Greaser Yes
Air Hammer Ready Yes
Locating System Yes On-board remote display

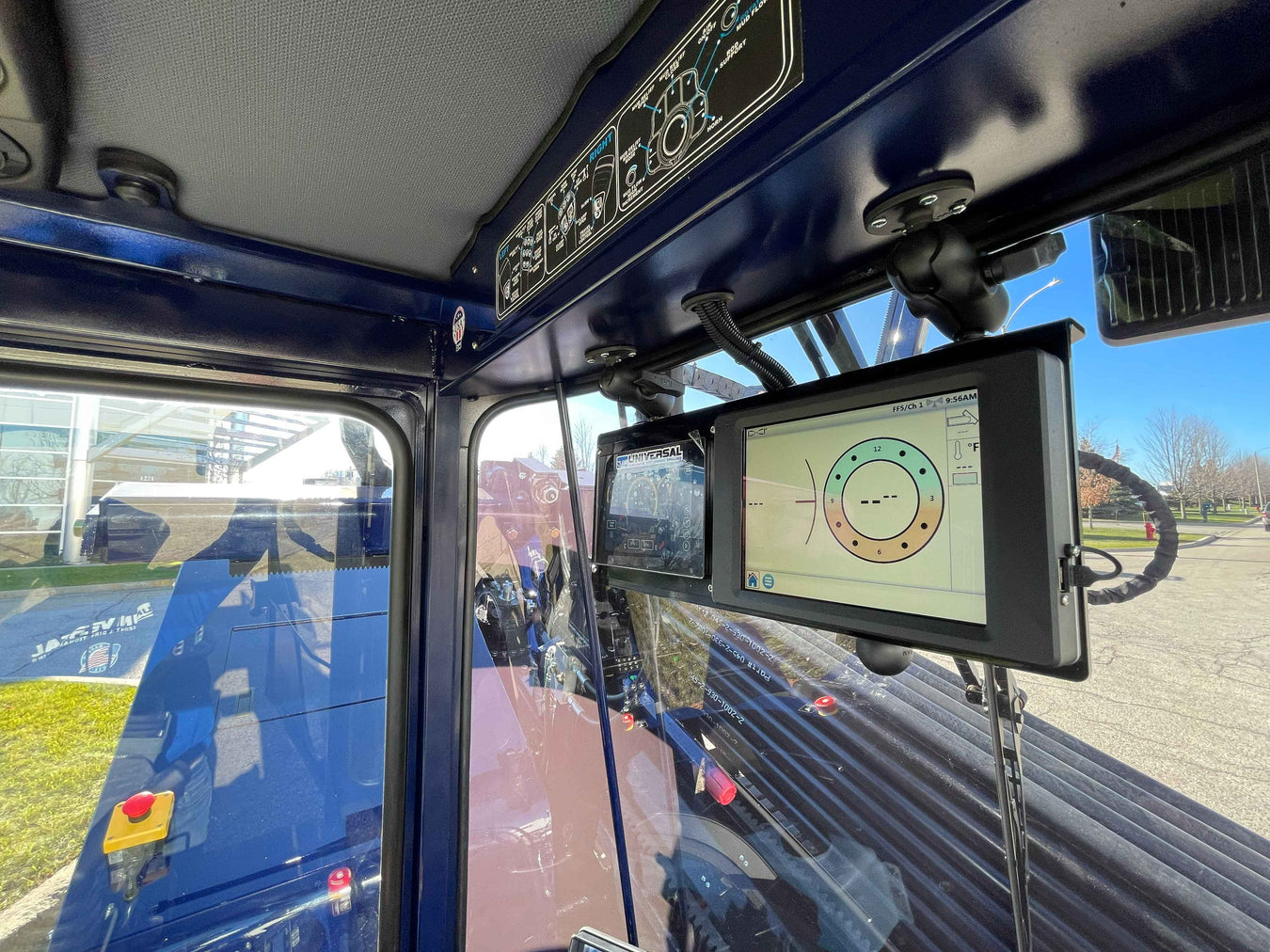

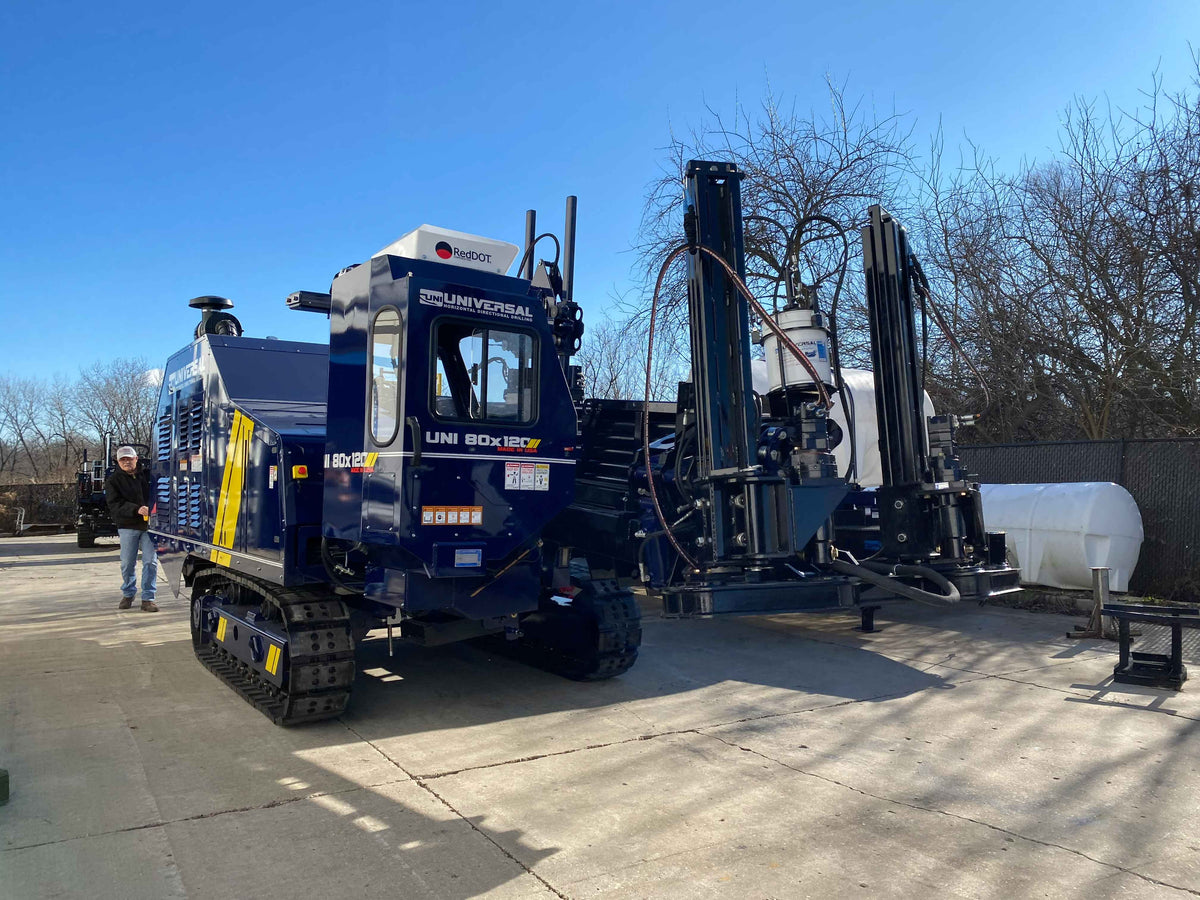

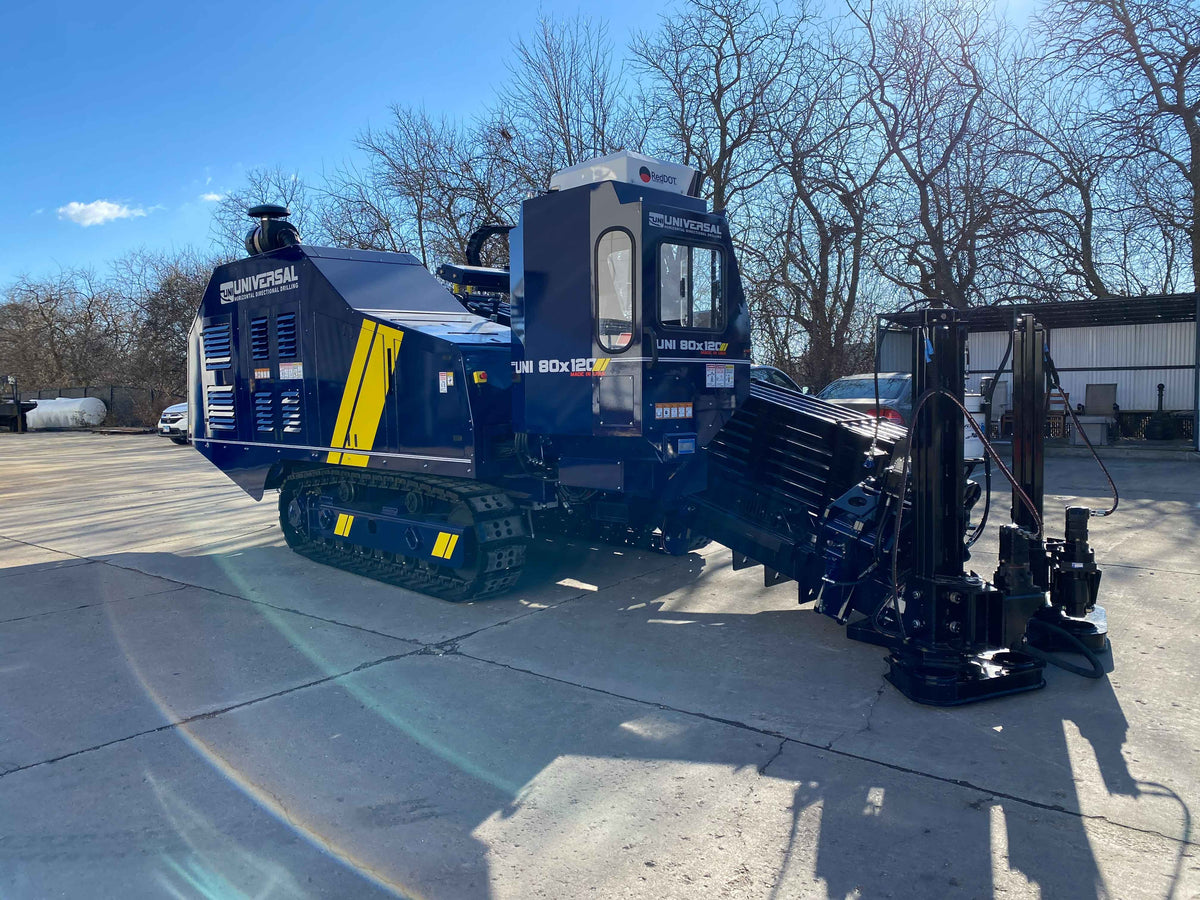

Operator's Station Glassed Cab (Heater & Air Conditioner, Aurora Digitrak Display, Video Camera with LCD monitor)
Auto Curve Yes

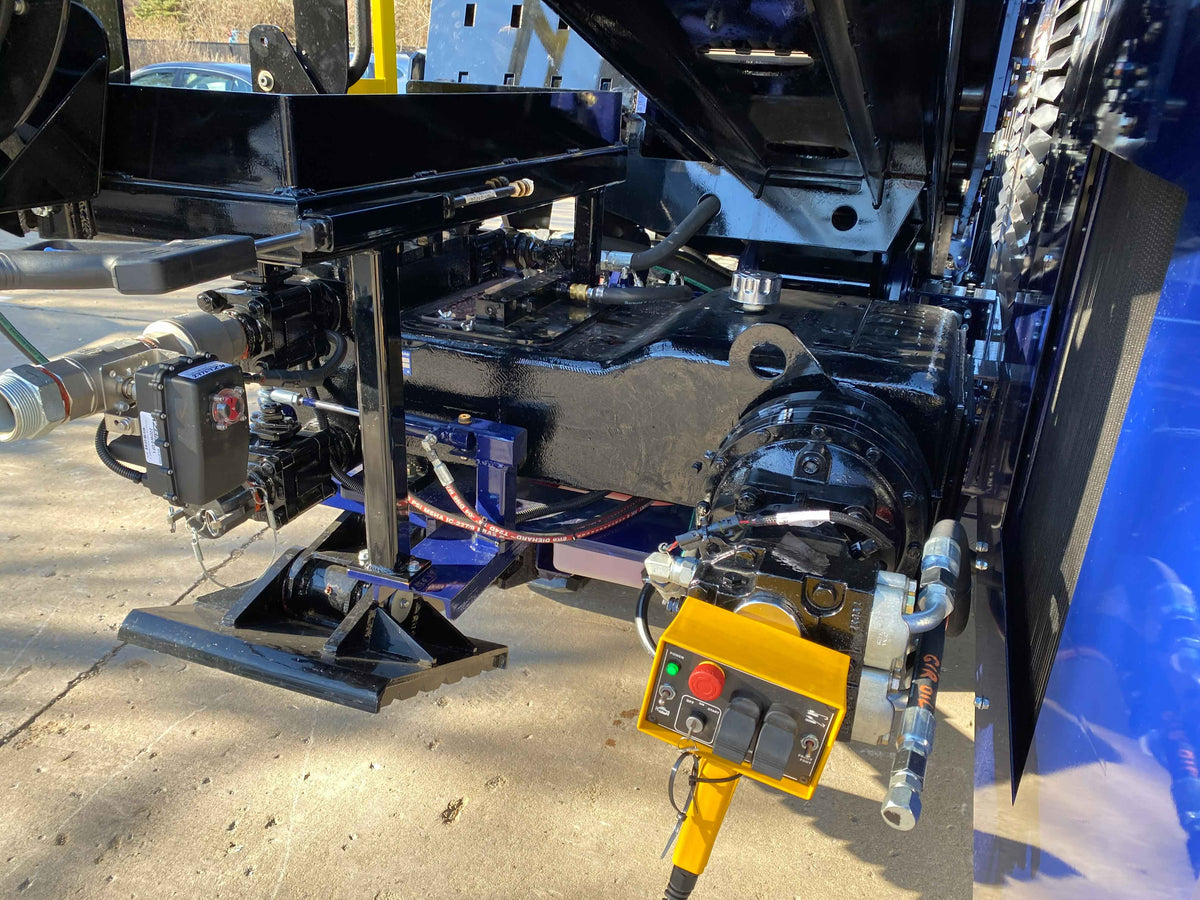

Wired Remote Yes Maneuver, load, unload and setup your rig
Wireless Remote Yes Control essential functions from safe distance
Wire Line Ready Optional
