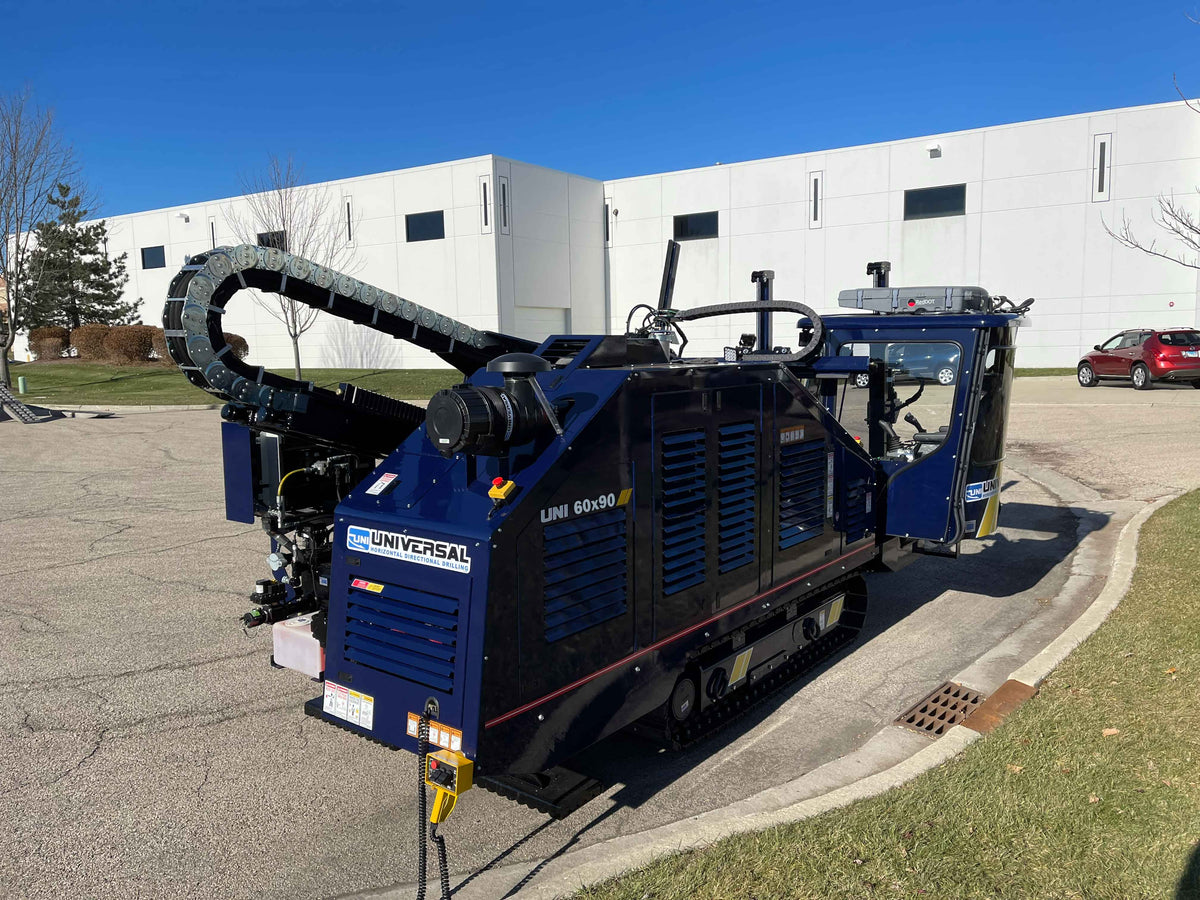

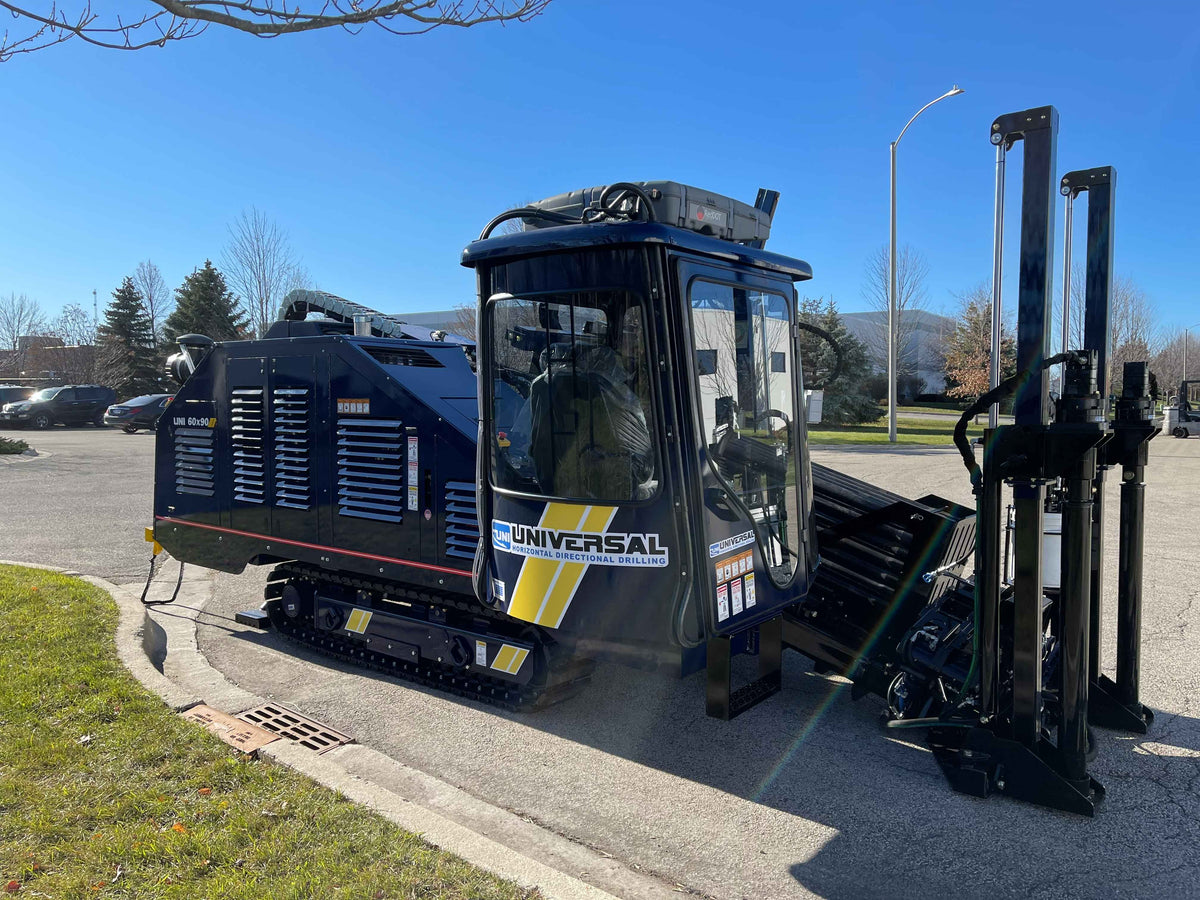

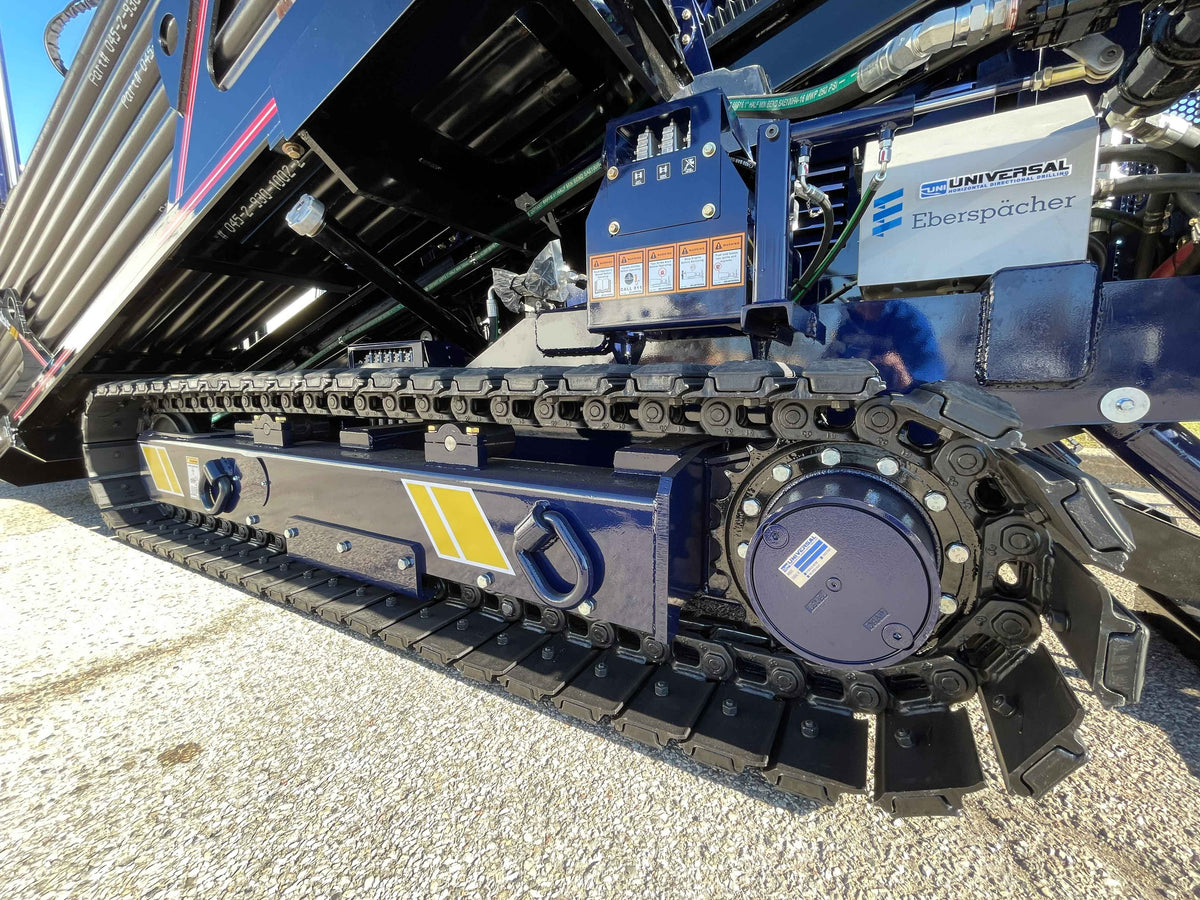

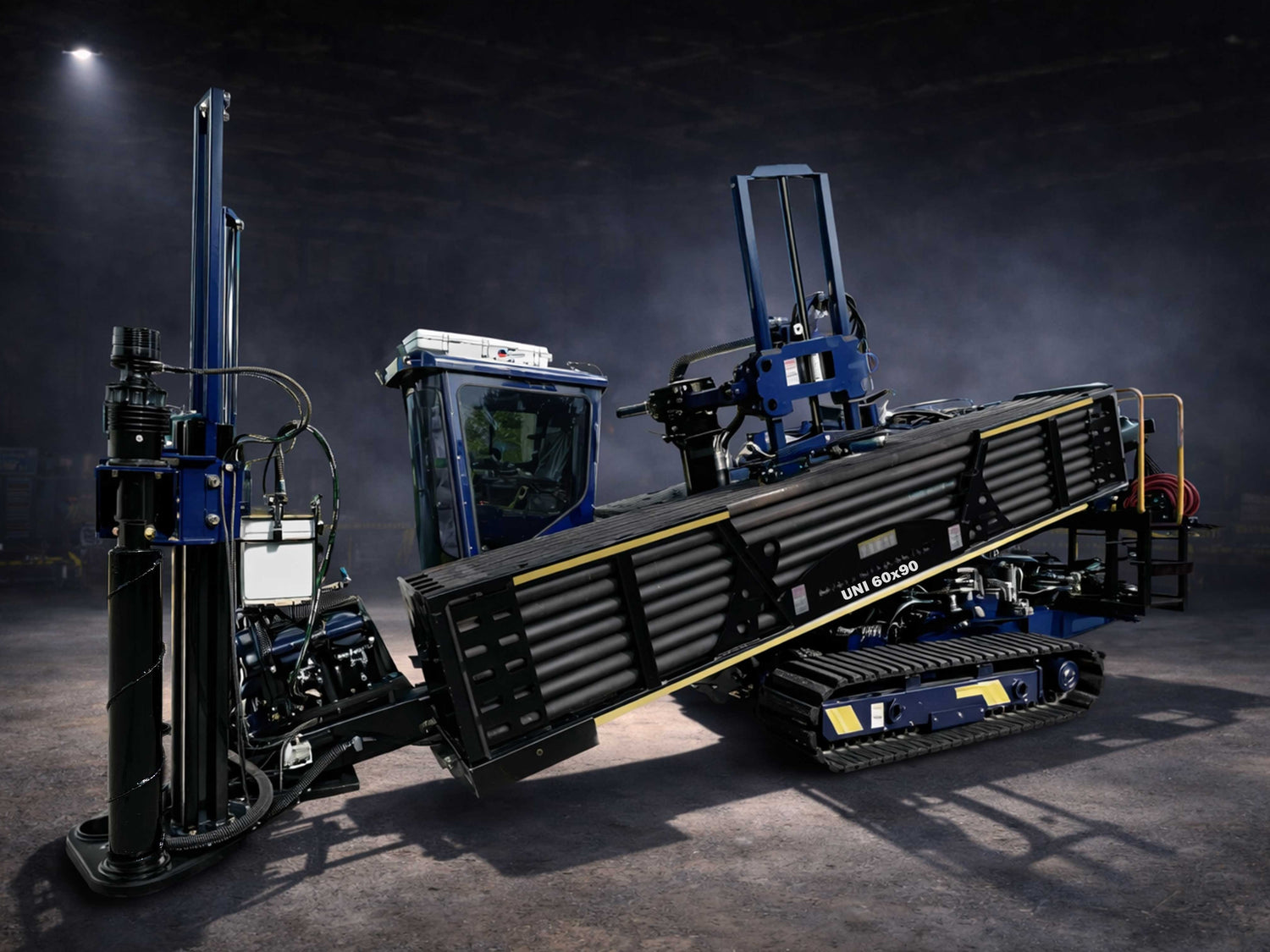

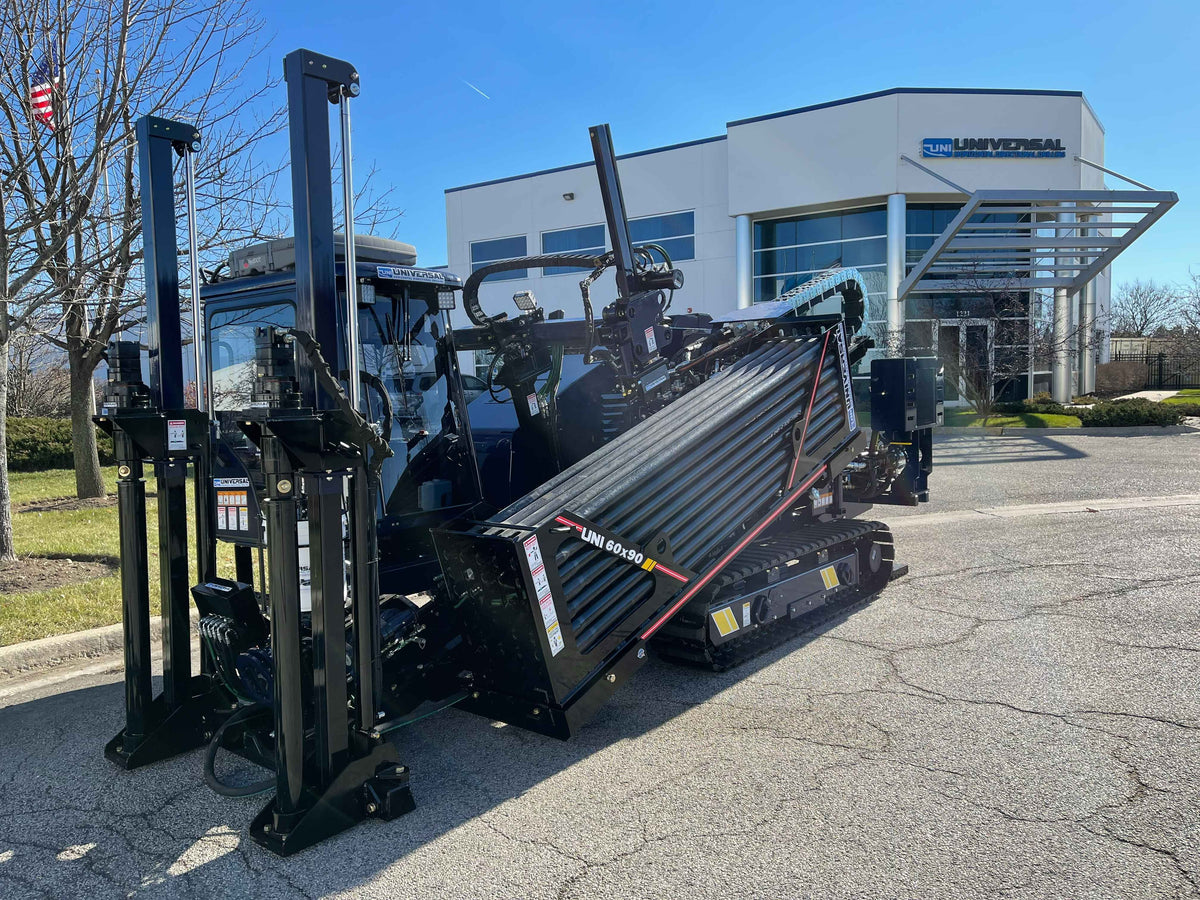

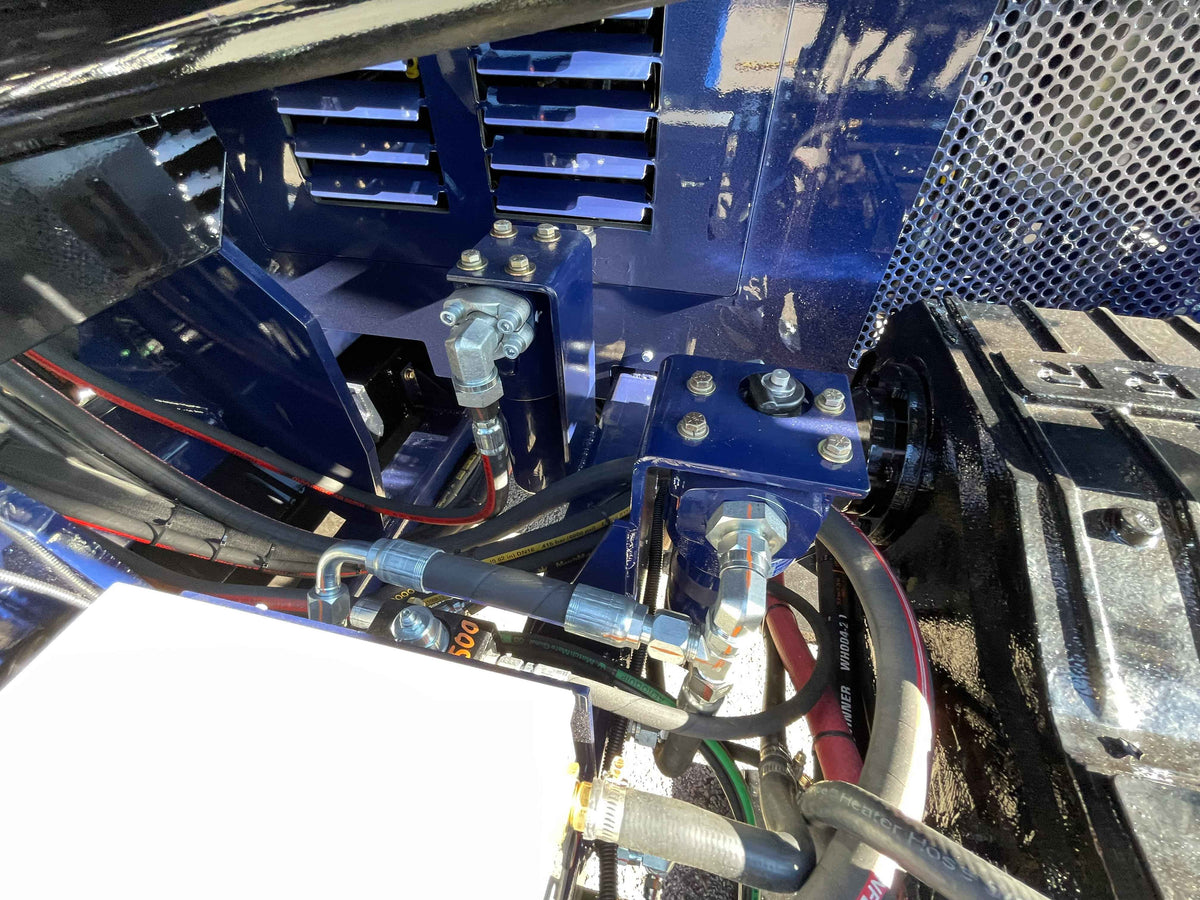

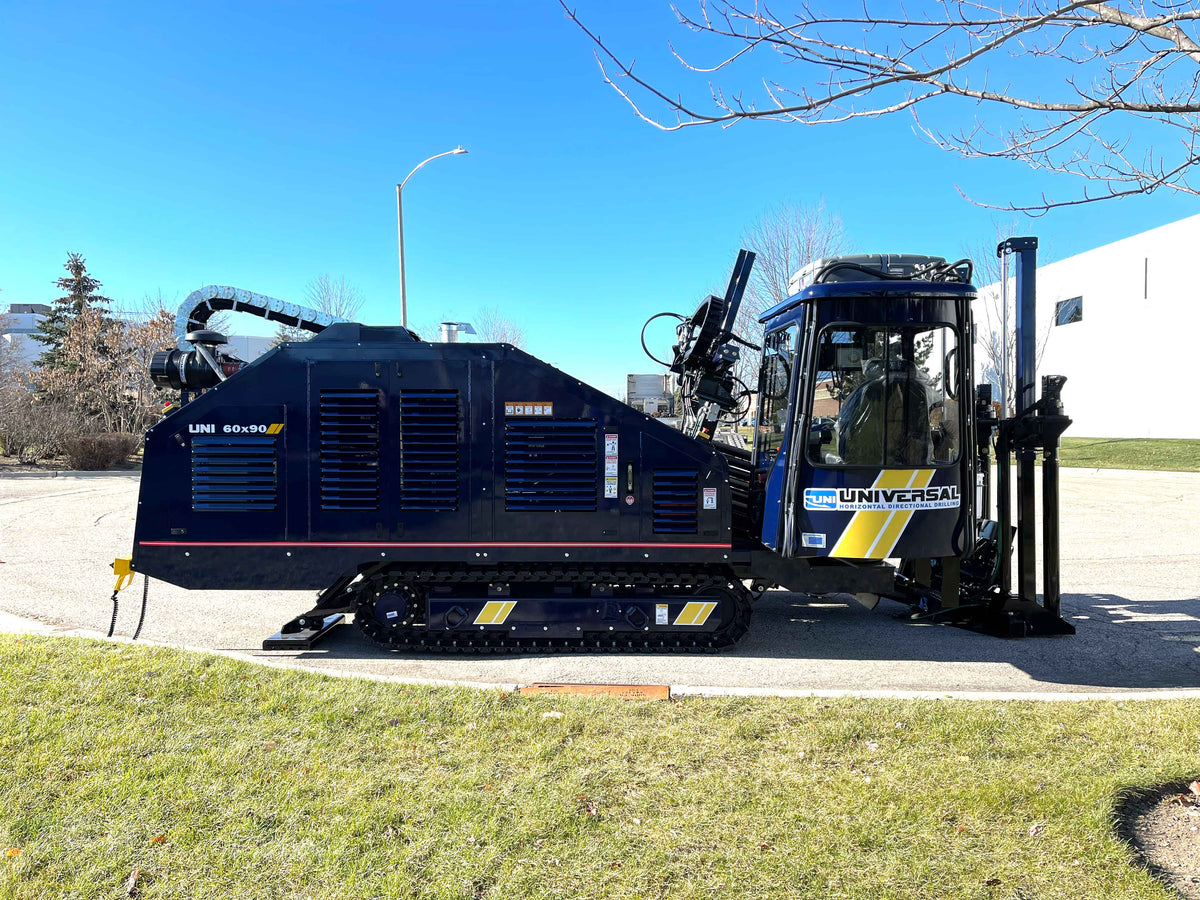

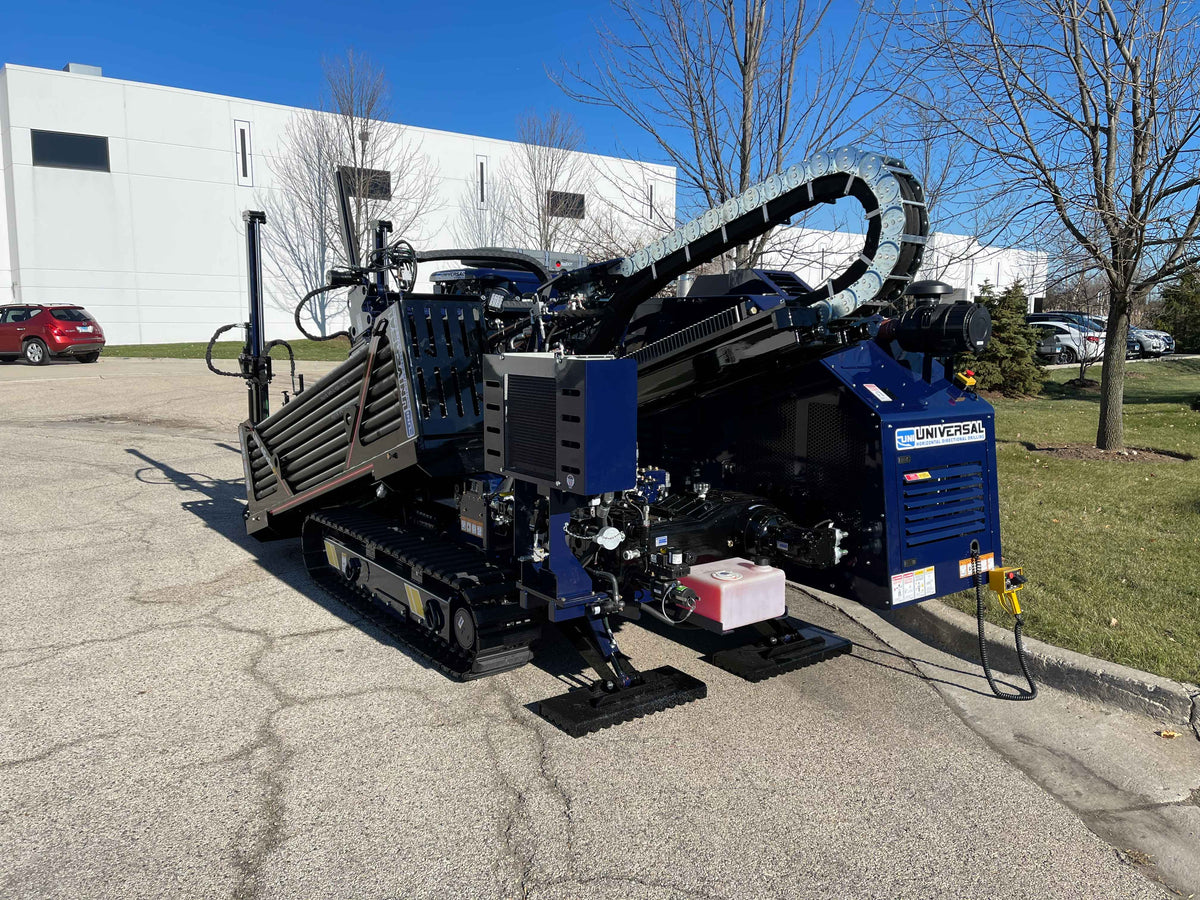

UNI 60x90 Directional Drill

The following directional drill is available in two configurations:

  • 10 ft drill rods
  • 15 ft drill rods

Quick Specs:

Push/Pull

60000 lbs

Torque

9000 ft-lb

Engine

173 hp

Mud Pump

188 gpm

See Full Specification

Specification, Dimensions and Features:

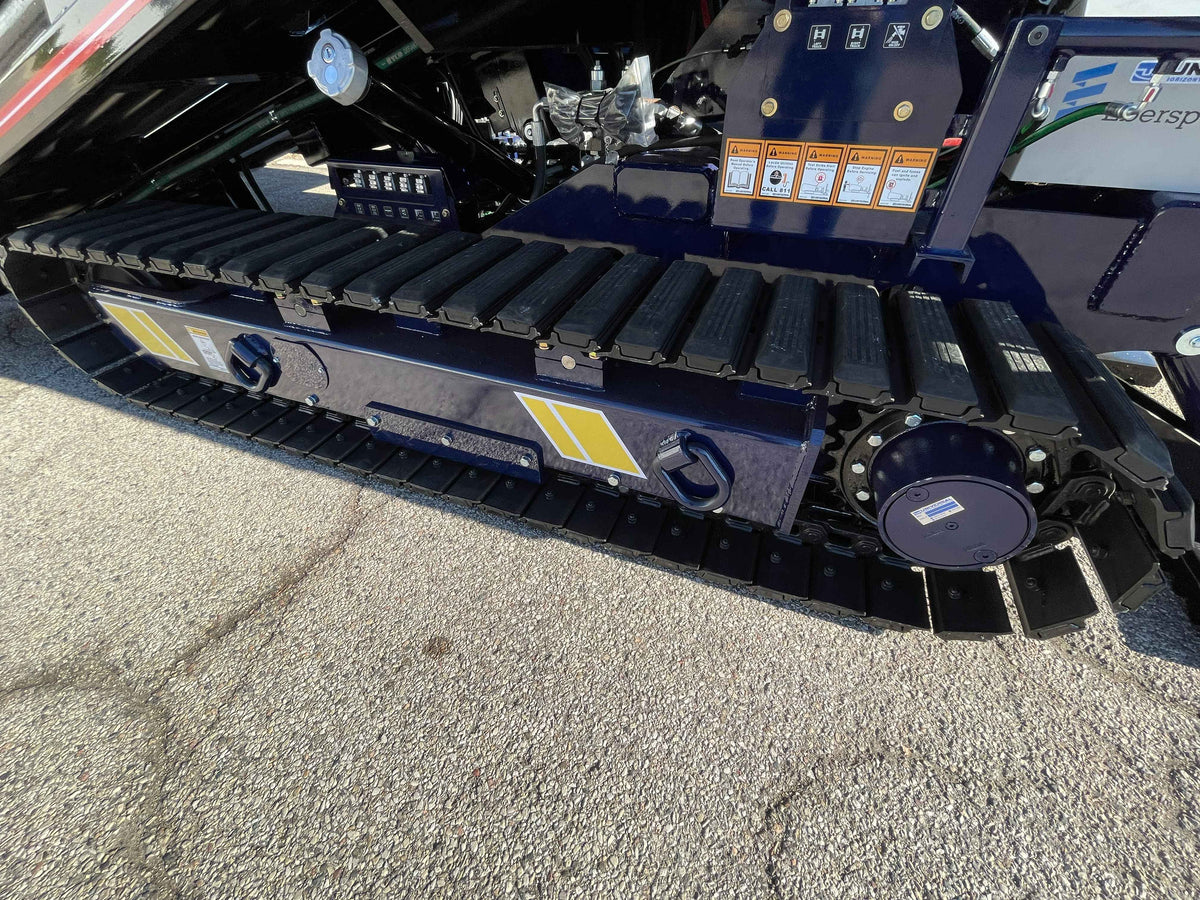

Dimensions and Weight

Parameters USA Metric
Length 253 inch 643 cm
Width 92 inch 234 cm
Height 103 inch 262 cm
Weight (w/o drill rods) 28600 lbs 12973 kg

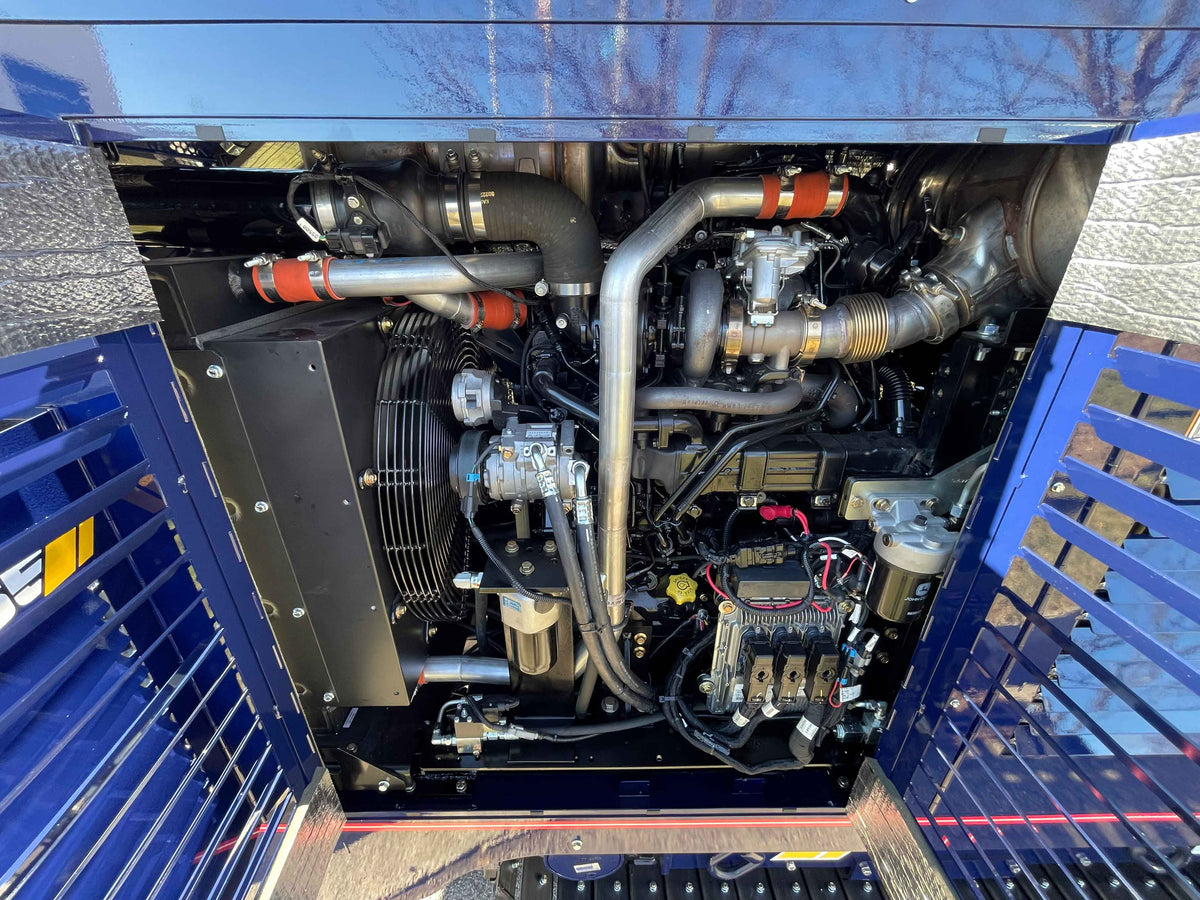

Engine Specification

Parameters USA Metric
Make and model Turbo Diesel
Fuel Type Diesel
Gross Horsepower 173 hp 129.0 kw
Rated RPM 2400 rpm
EPA Certification Tier IV

Operational Specification

Parameters USA Metric
Thrust 60000 lbs 266.9 kN
Pullback 60000 lbs 266.9 kN
Spindle Torque (Low) 4500 ft-lb 6101.2 Nm
Spindle Torque (High) 9000 ft-lb 12202.4 Nm
Rotation Speed (Low) 100 rpm
Rotation Speed (High) 200 rpm
Operating Angle 18 °

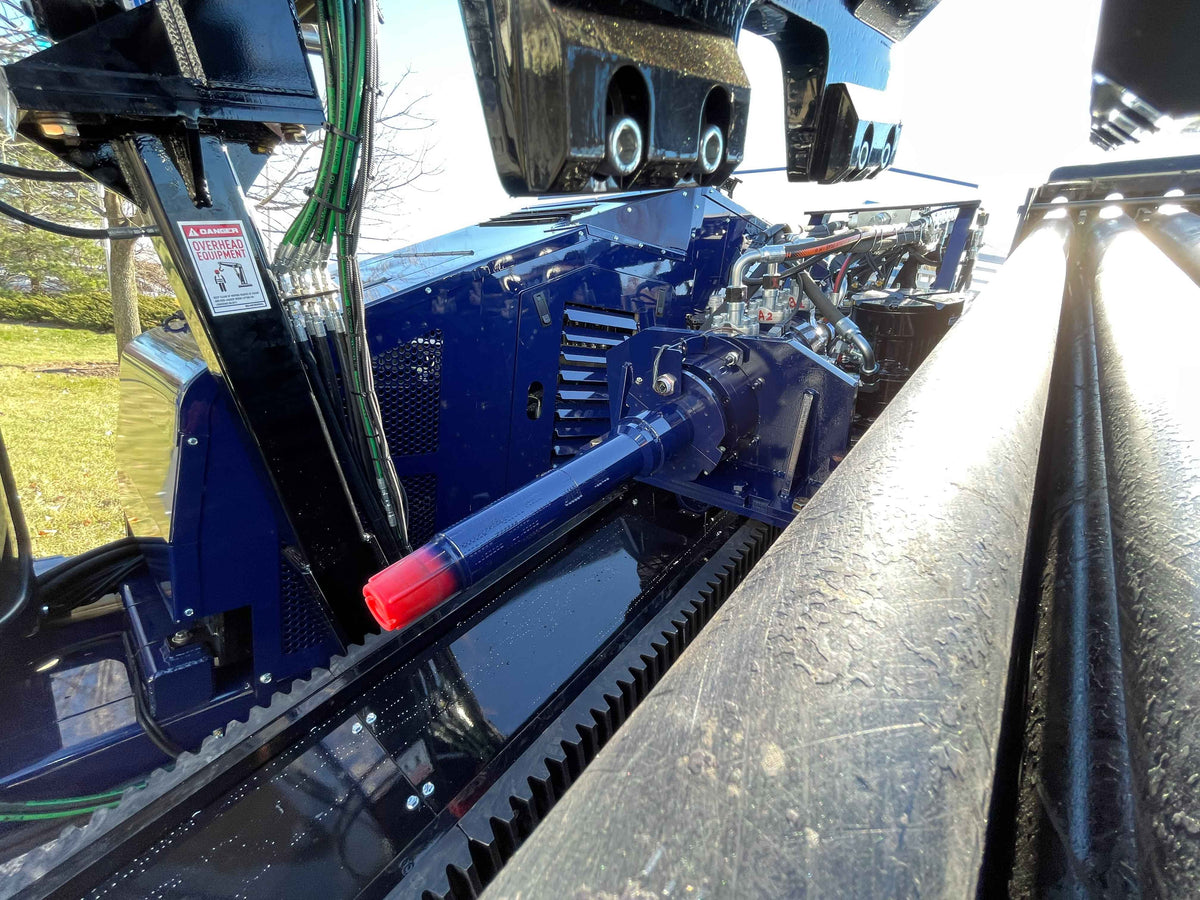

Drill Pipe Specification

Parameters USA Metric
2 7/8" FS1 (Vermeer® compatible) 10 ft 3.0 m
Basket Capacity 40 rods
2 7/8" FS1 (Vermeer® compatible) 15 ft 4.6 m
Basket Capacity 40 rods

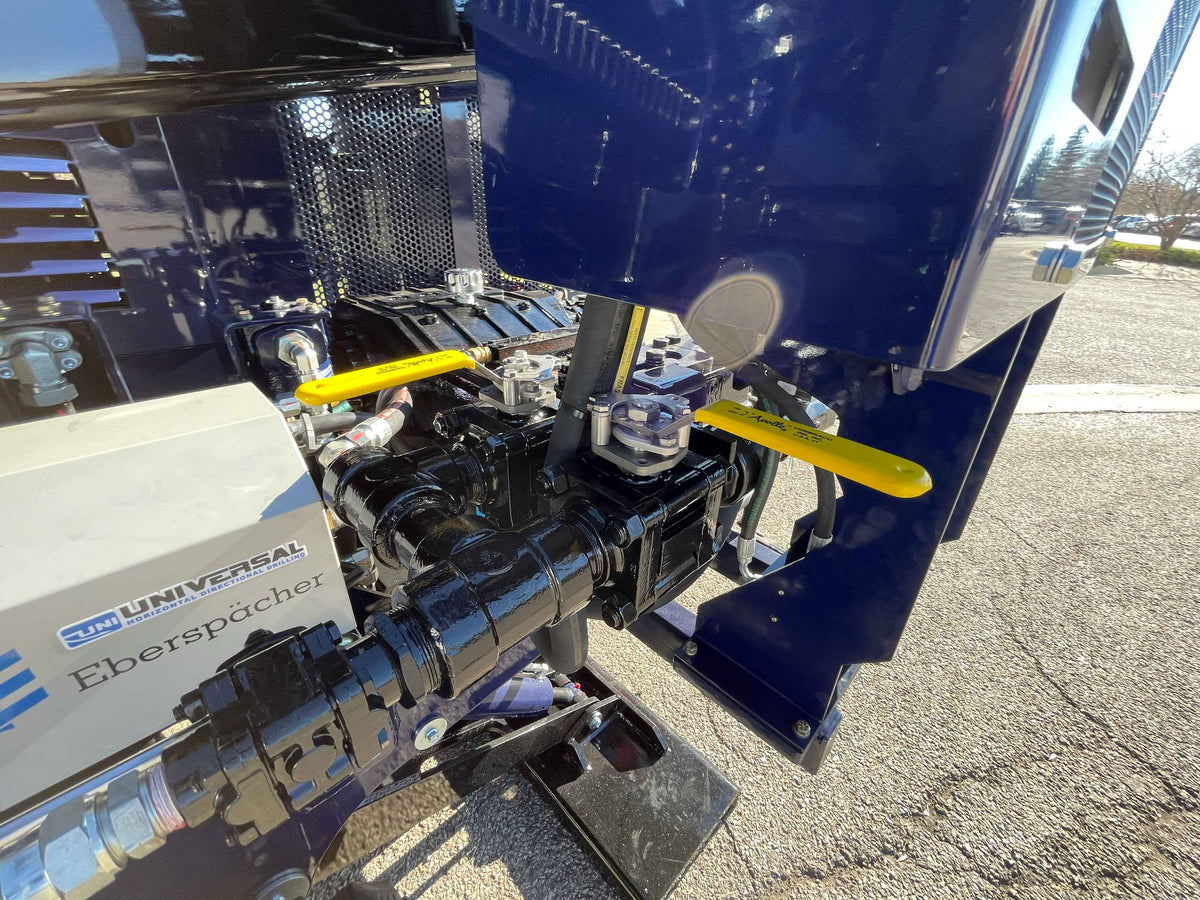

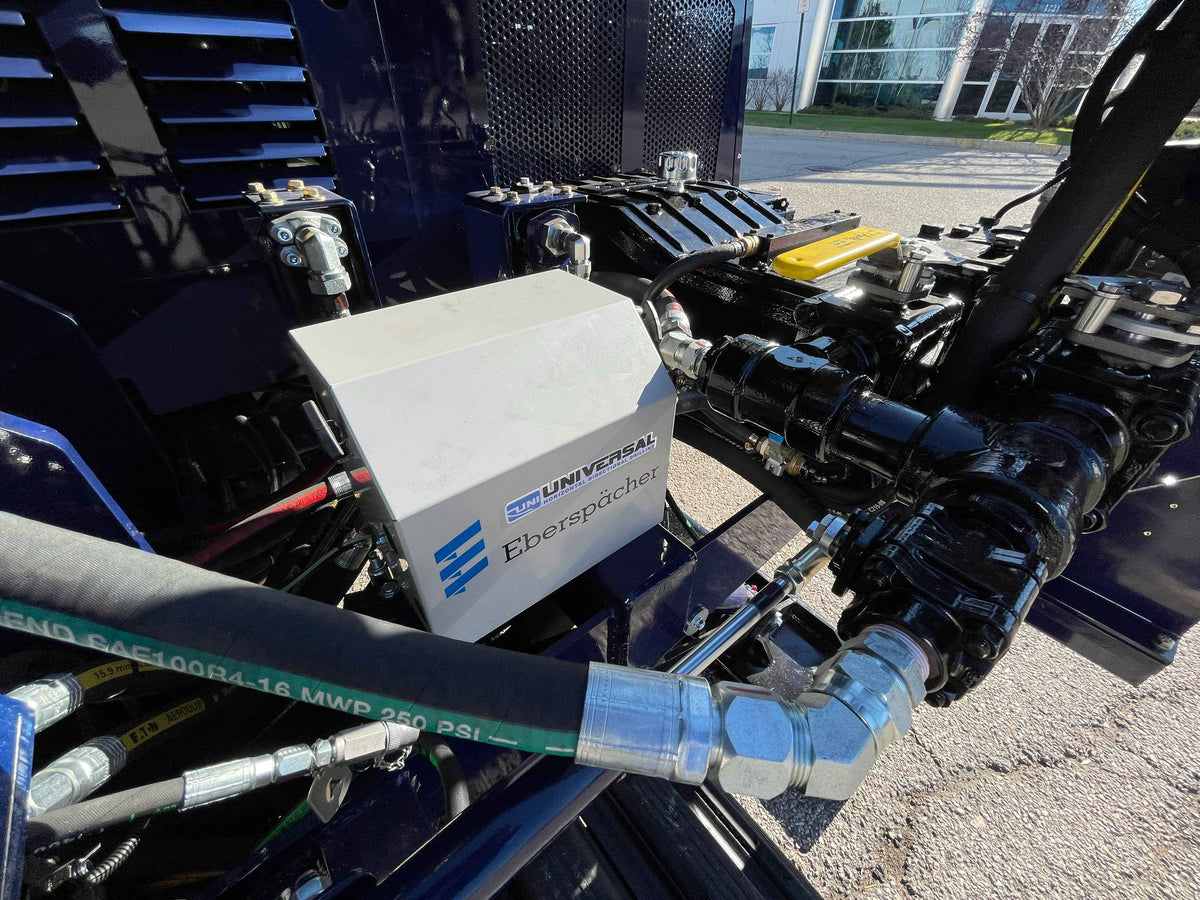

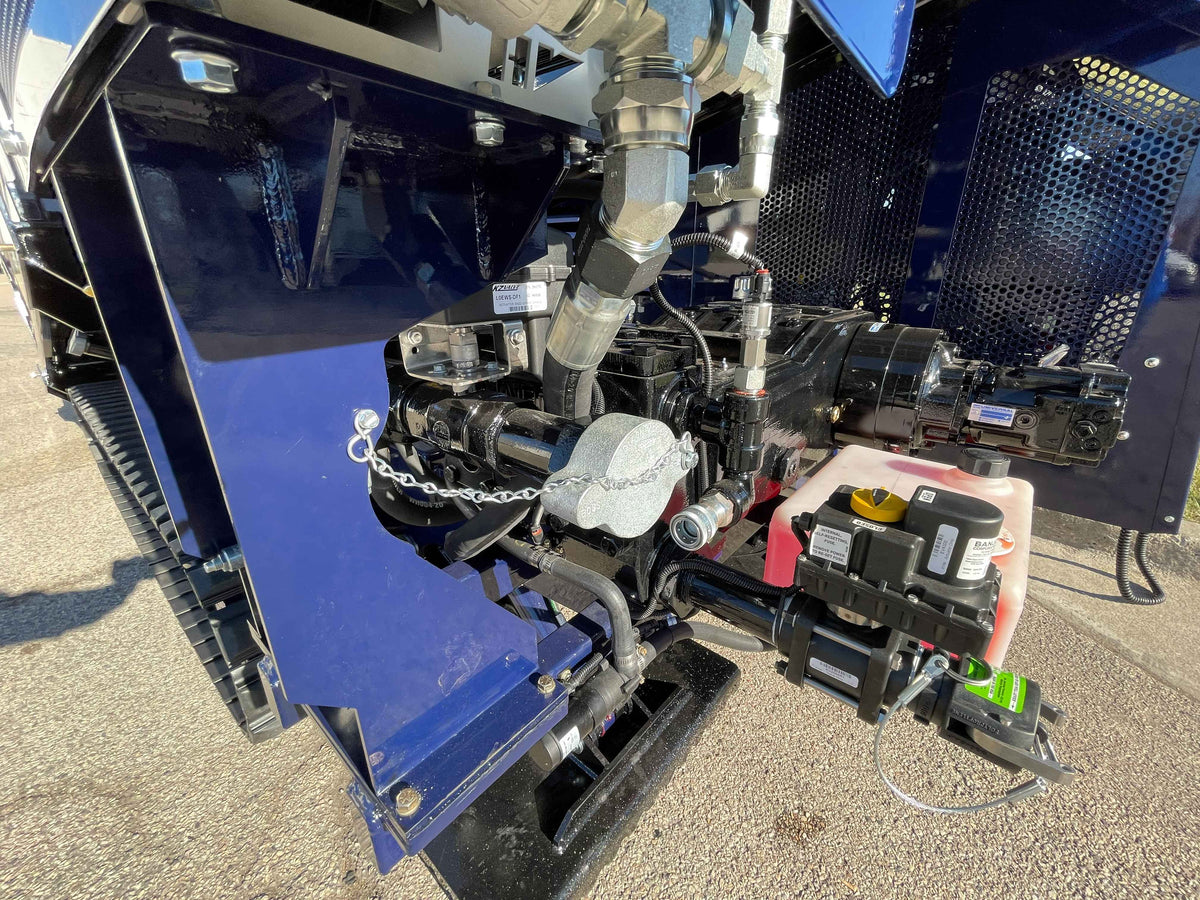

Fluid Specification

Parameters USA Metric

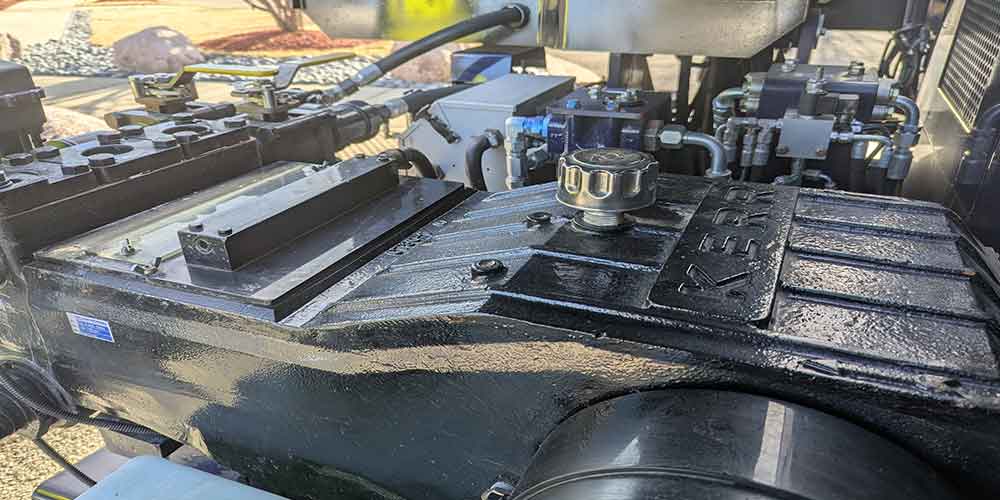

Make and model Kerr KT-3350PT
Flow (*Max) 188 gpm 712.5 lpm
Pressure (*Max) 963 psi 66.4 bar
Fuel Tank 68 gal 257.4 lit
Hydraulic Tank 84 gal 318.0 lit

Features

Feature Available Notes

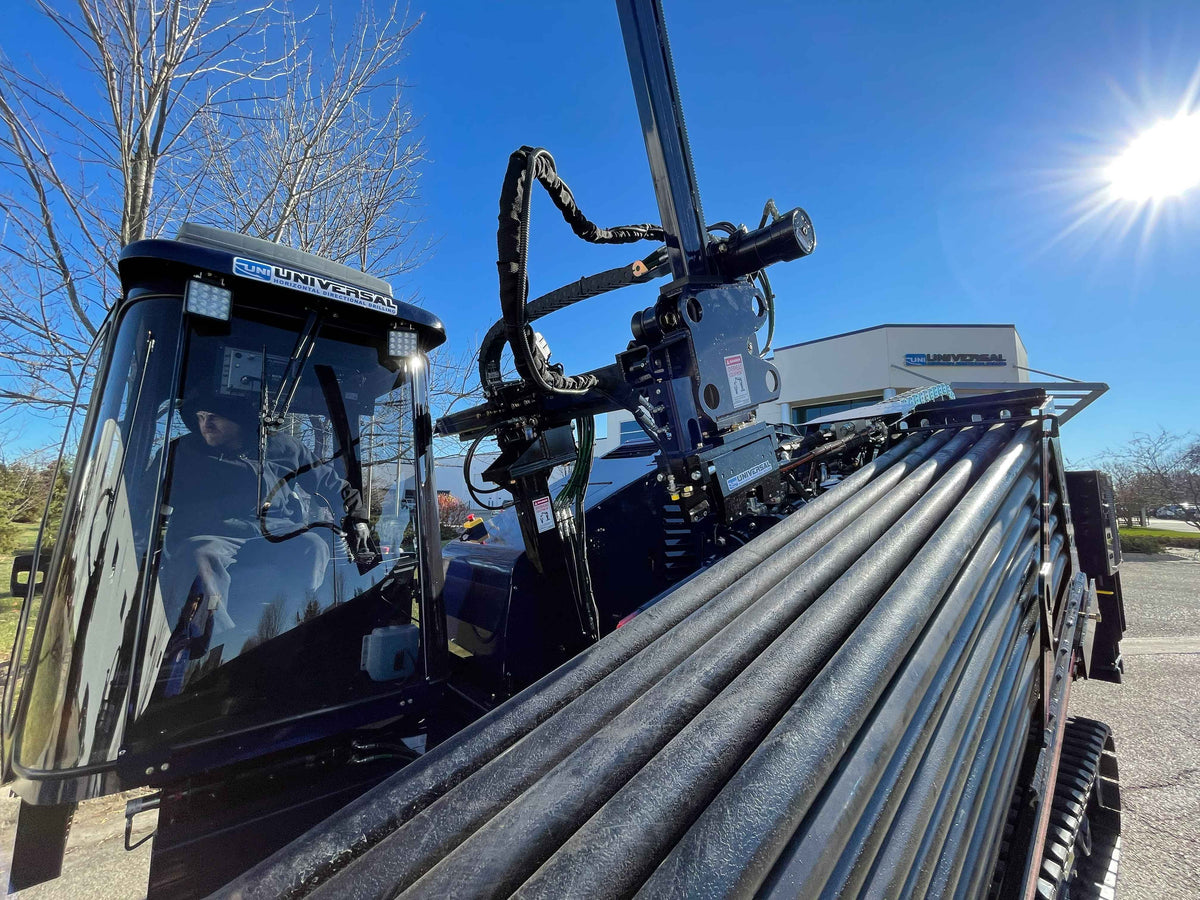

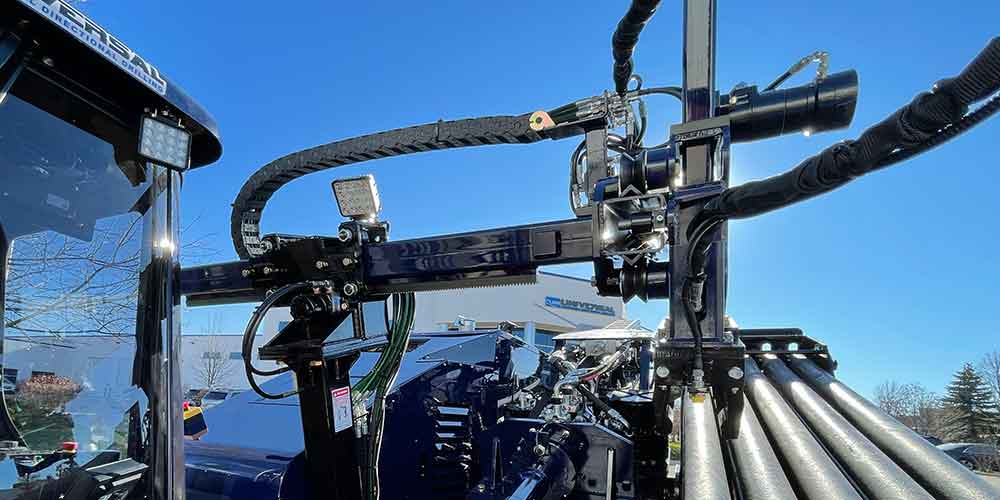

Automatic Rod Loader Yes

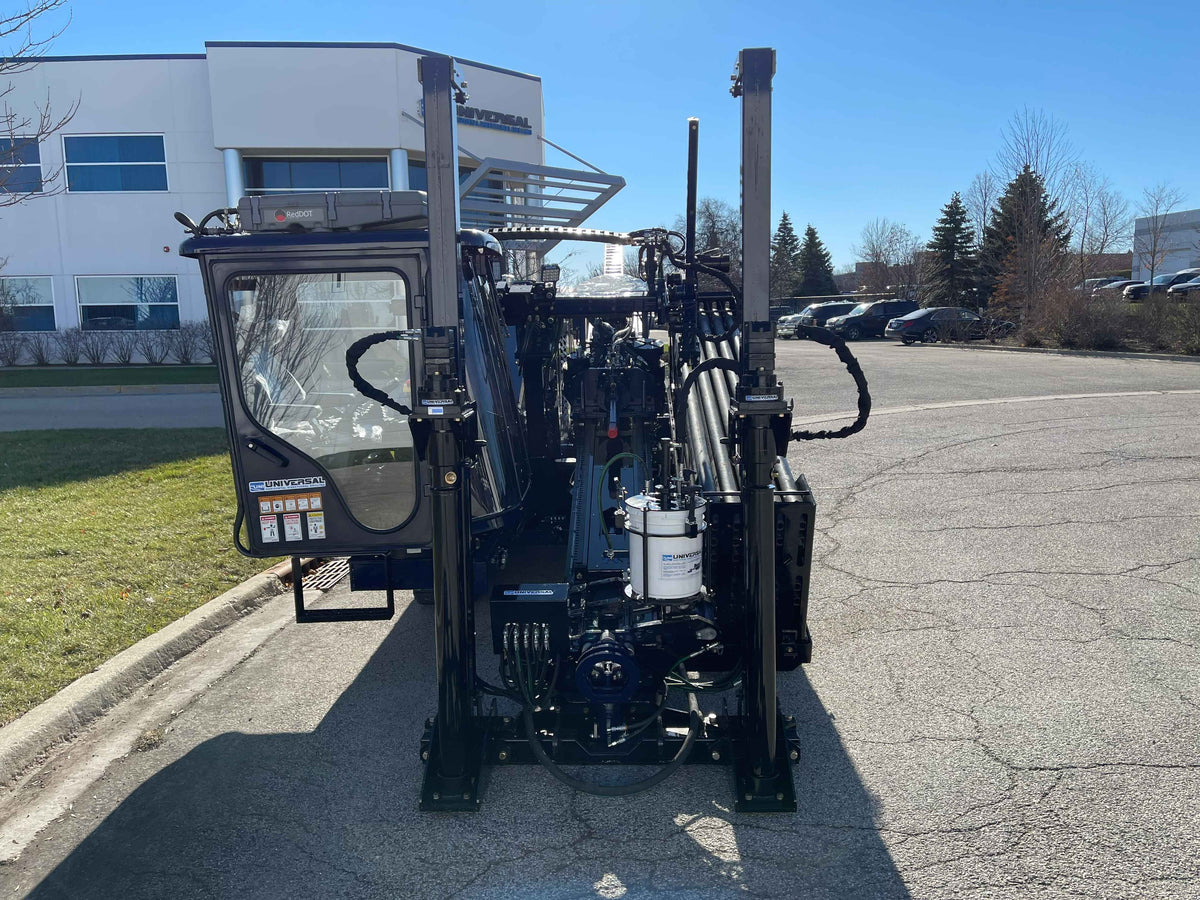

Stake-down System Yes 4 Point Auger System (Tubular)
Strike Alert Yes
Mud Flow Indicator Yes
Support Lights Yes
Auto Rod Greaser Yes
Air Hammer Ready Yes

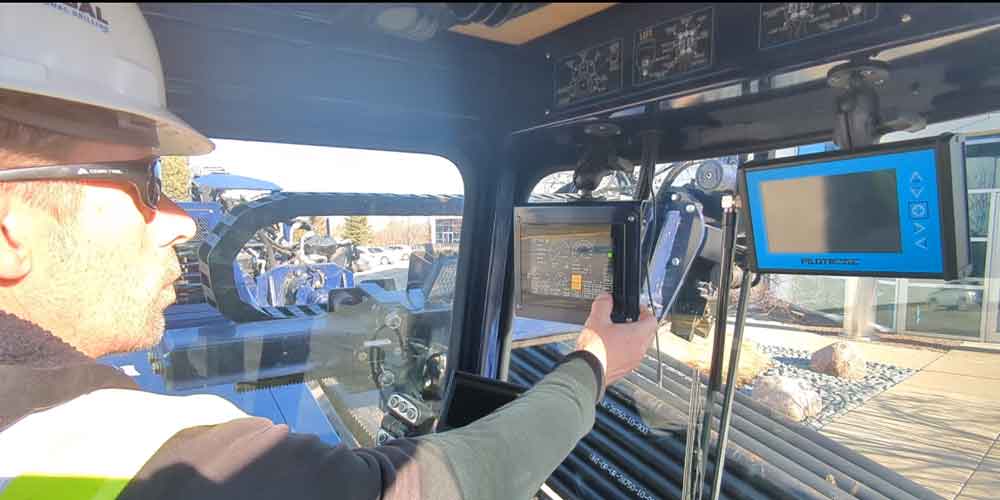

Locating System Yes On-board remote display

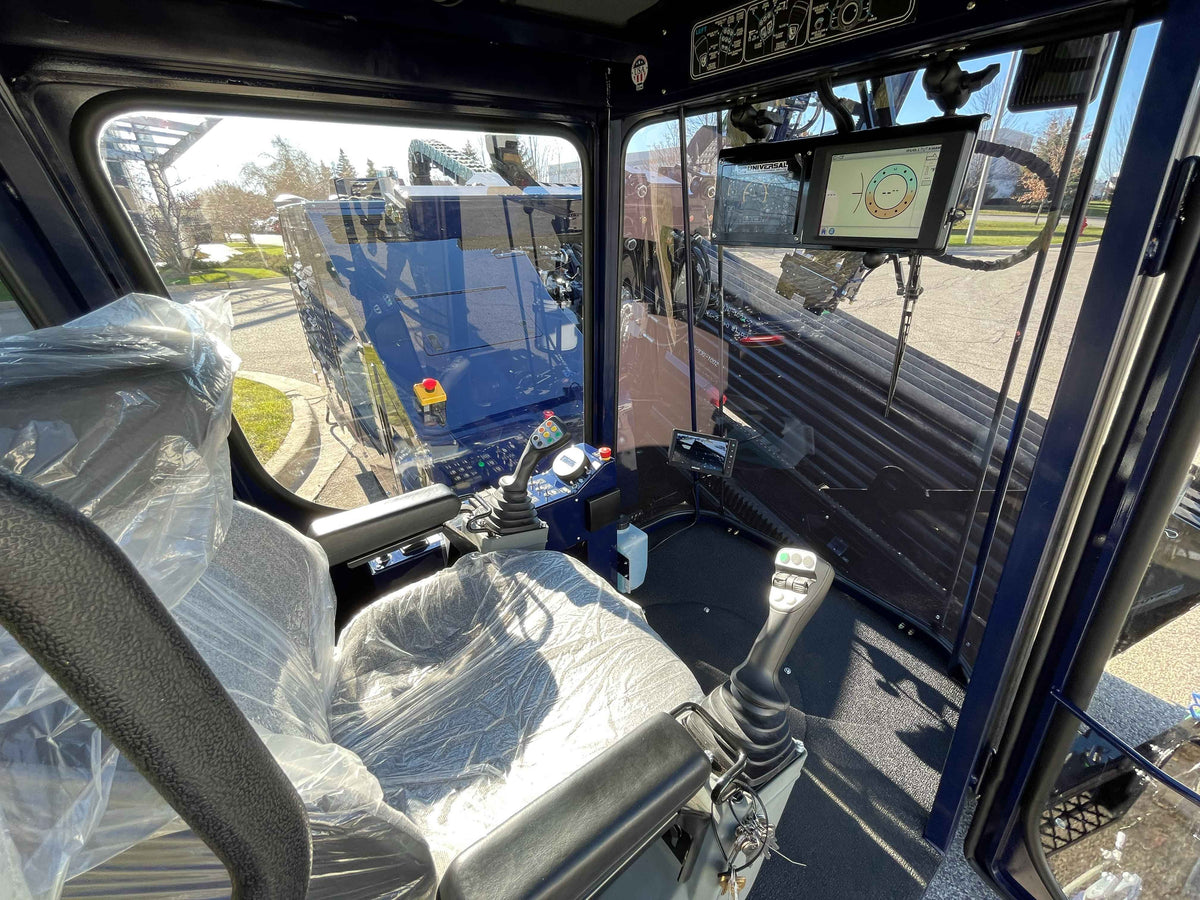

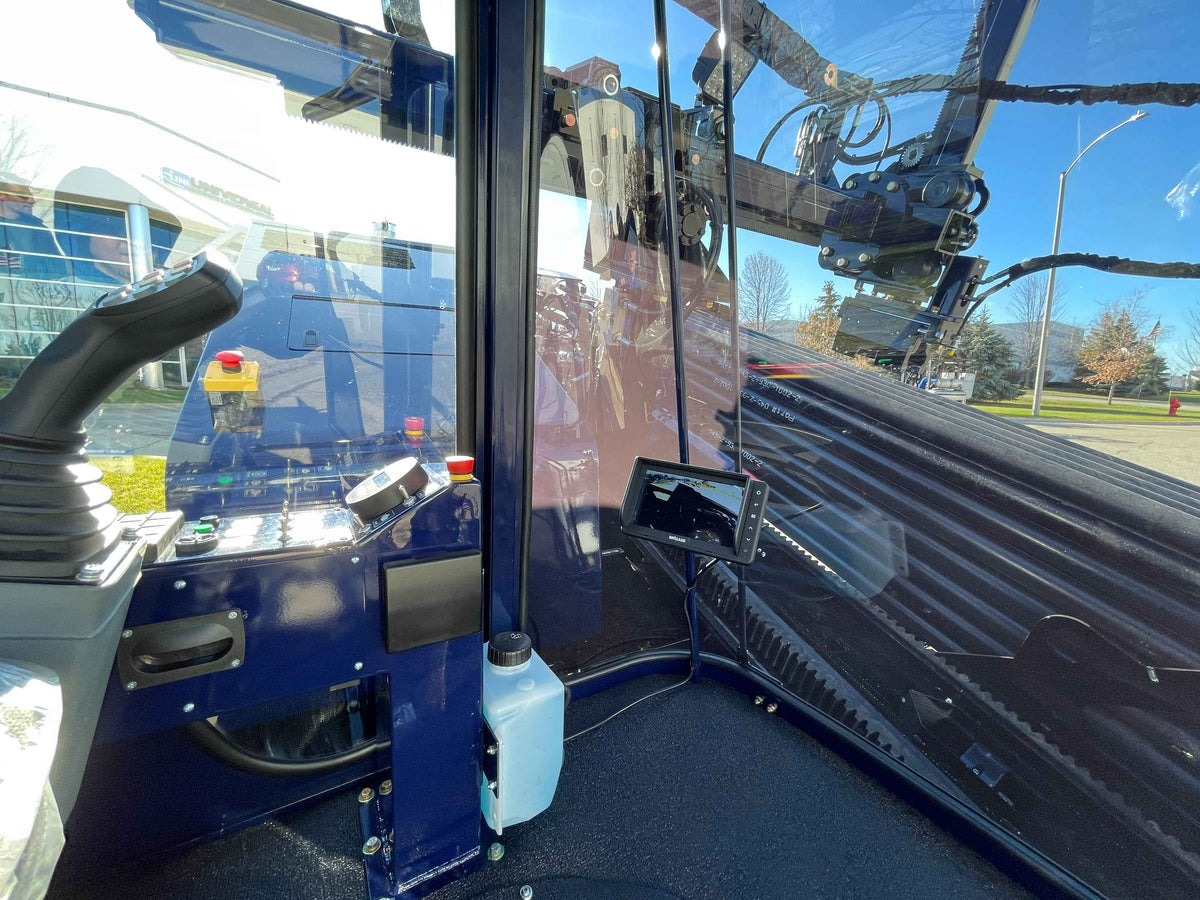

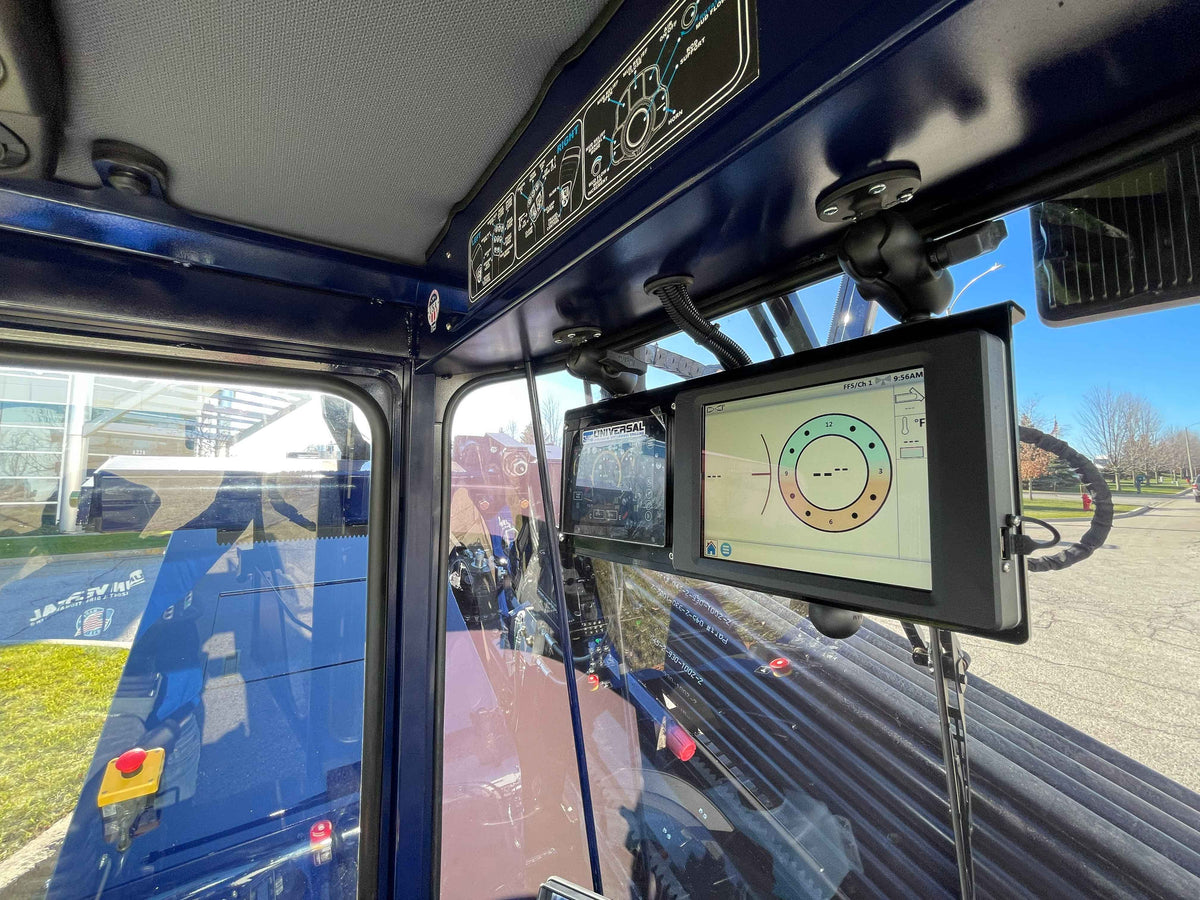

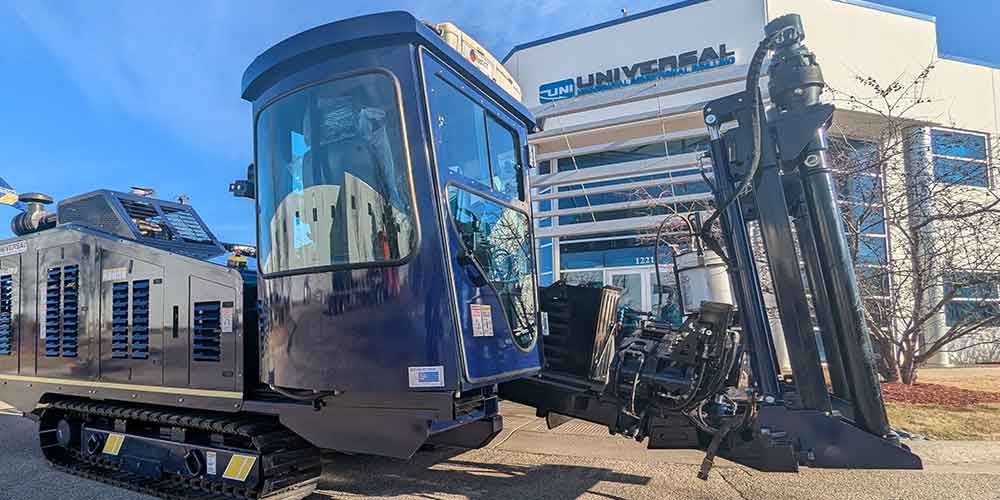

Operator's Station Glassed Cab (Heater & Air Conditioner, Aurora Digitrak Display, Video Camera with LCD monitor)
Auto Curve Yes
Wired Remote Yes Maneuver, load, unload and setup your rig
Wireless Remote Yes Control essential functions from safe distance
