UNIMAG X HDD Locator System

Precision underground tracking built for modern HDD operations.

UNIMAG X HDD Locator System

Precision underground tracking built for modern HDD operations.
System Frequencies

0.325 Hz – 41 kHz


Telemetry

4 radio channels

Range

3,000 ft

Weight

8.5 lbs

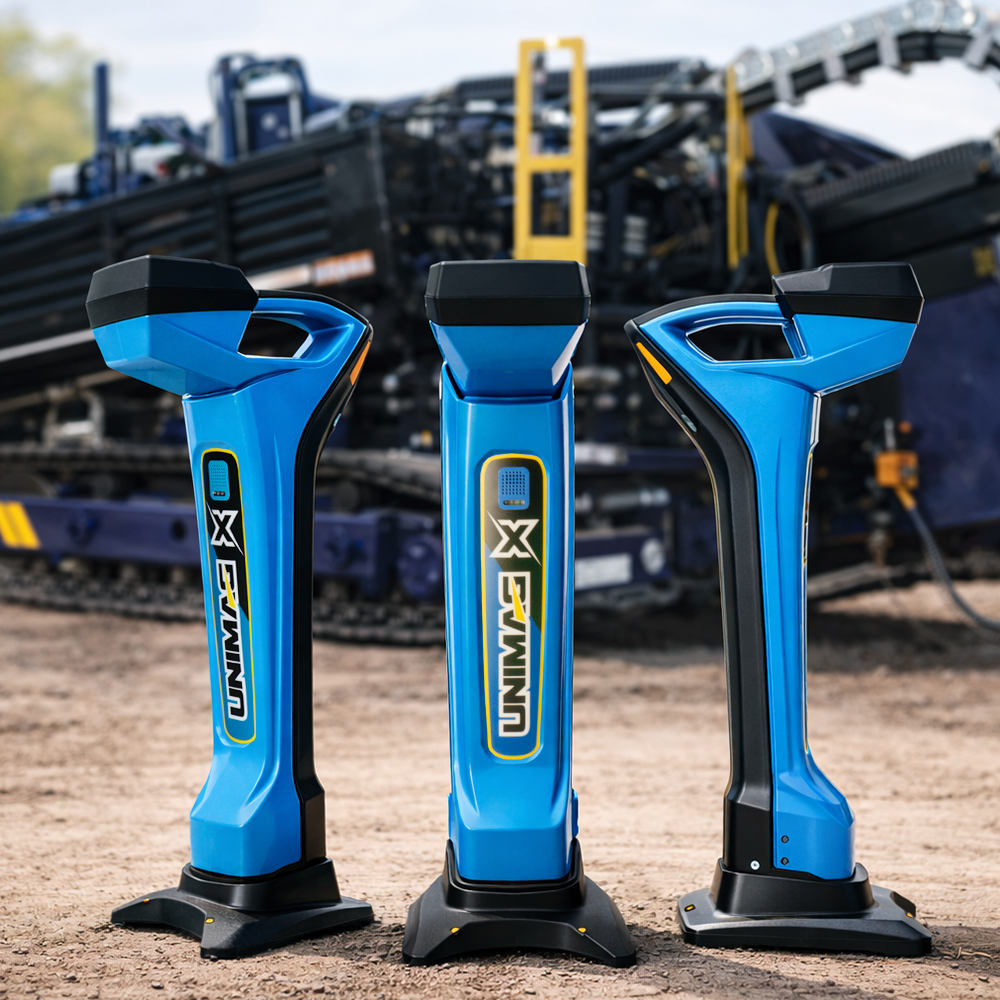

UNIMAG X HDD Locator System

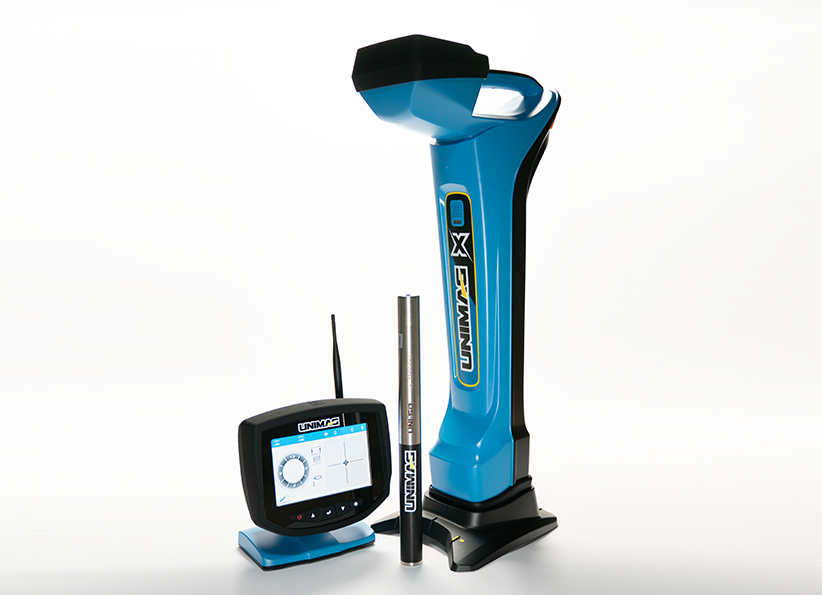

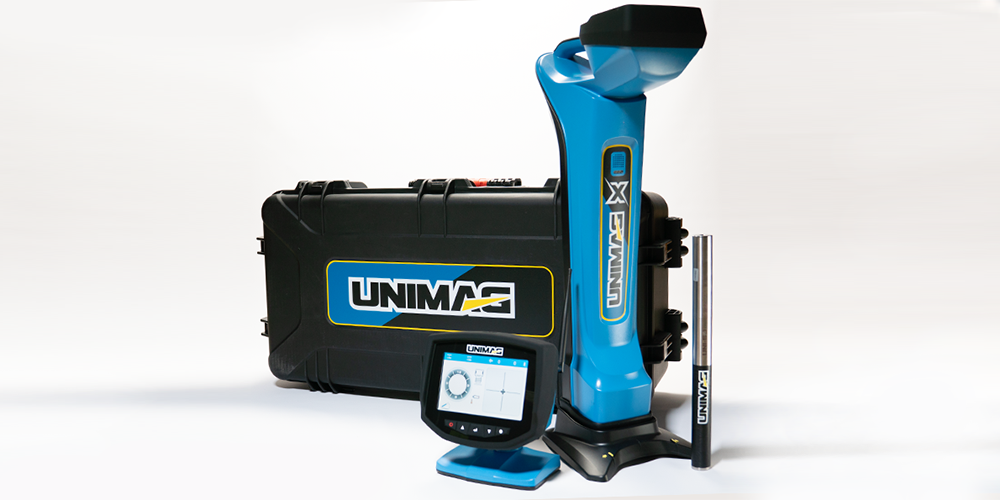

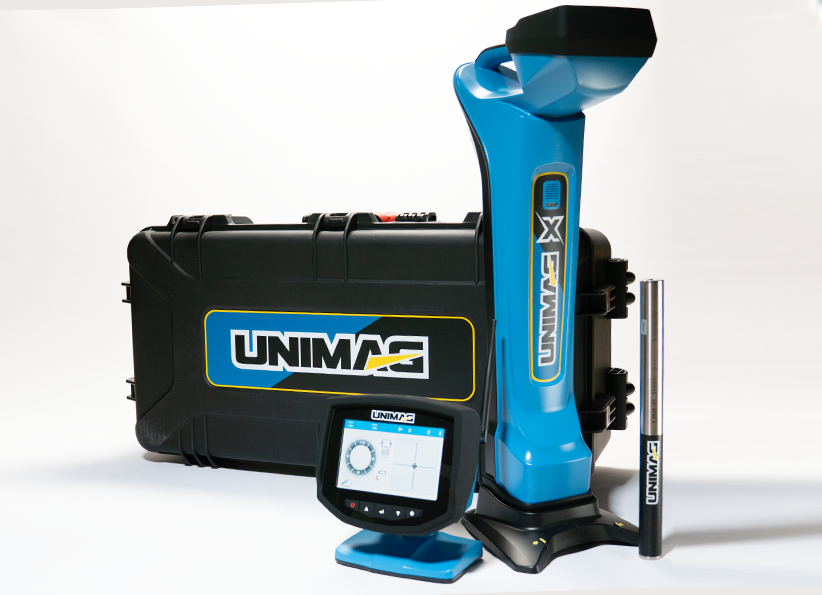

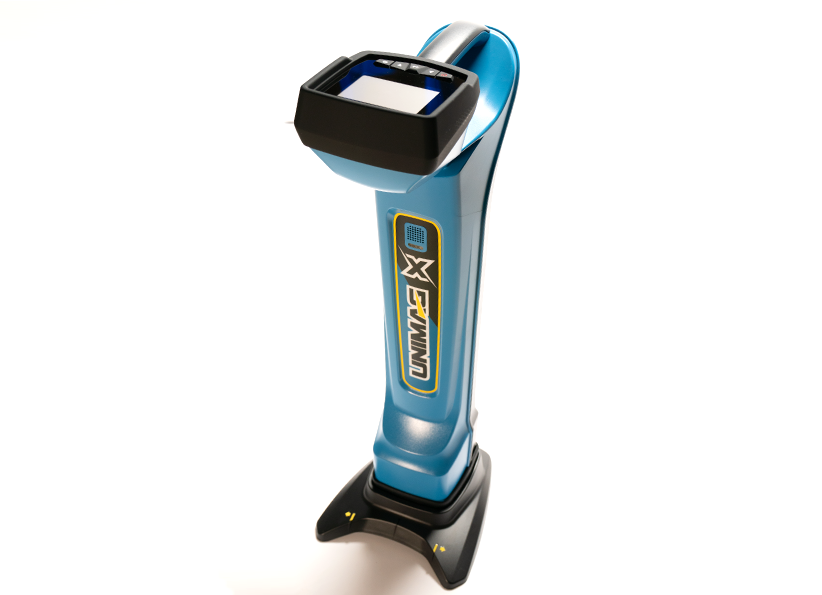

The UNIMAG X HDD Locator System is designed to provide drilling crews with reliable underground tracking and accurate bore guidance during horizontal directional drilling operations. Built with modern locating technology and intuitive controls, the system allows operators to monitor the drill head position while maintaining an efficient workflow on the job site.

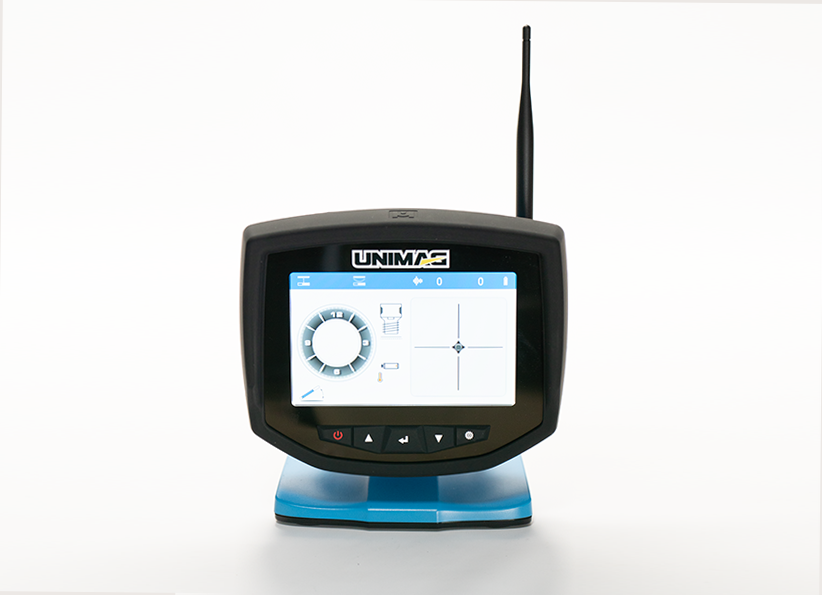

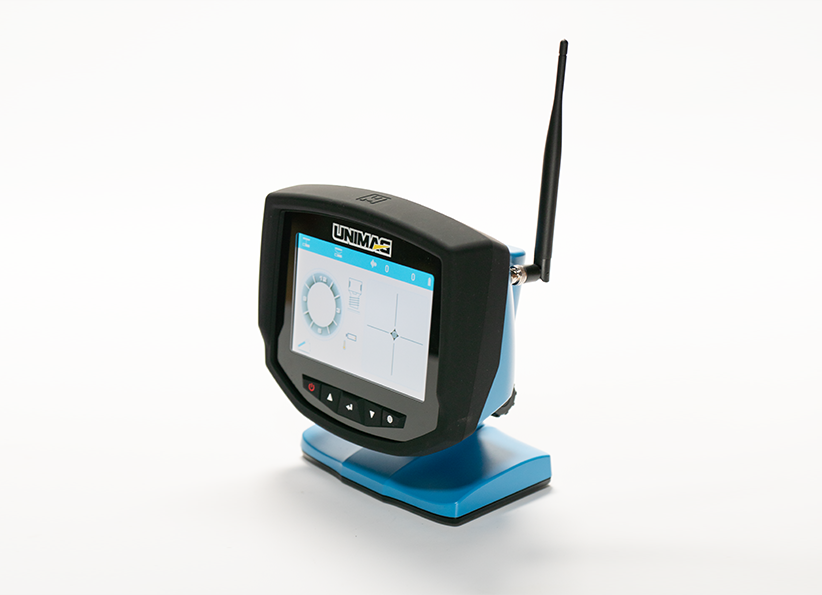

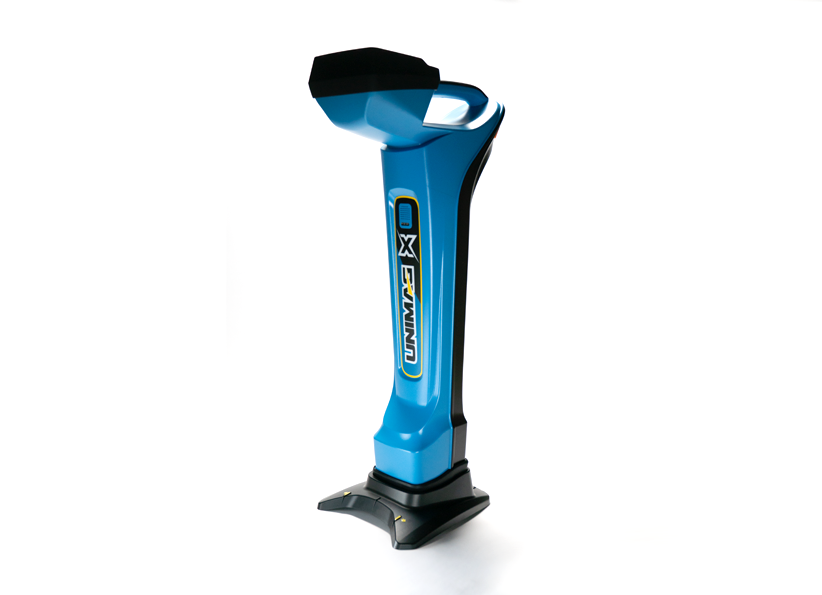

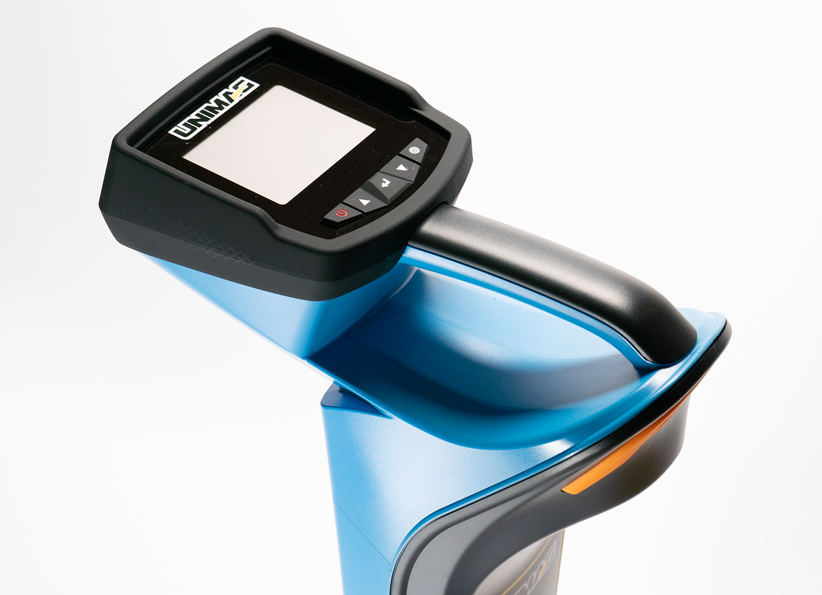

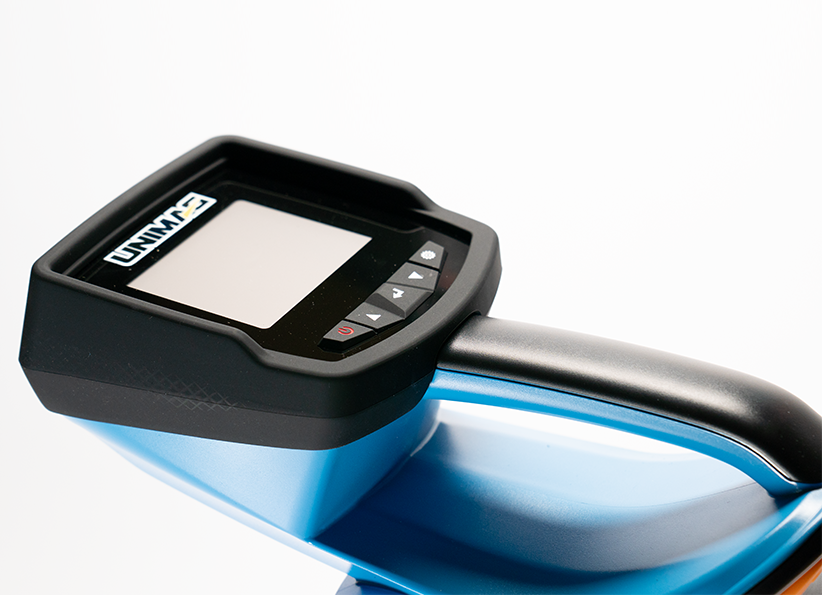

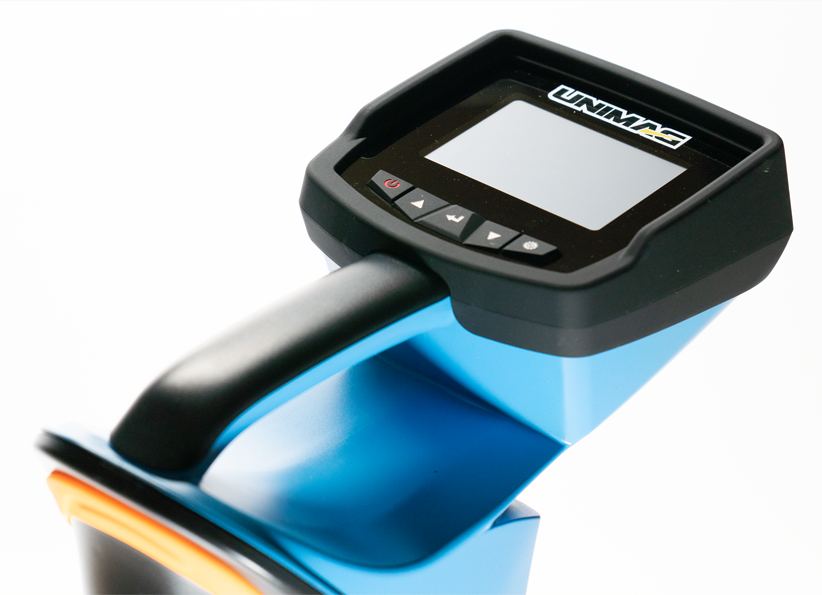

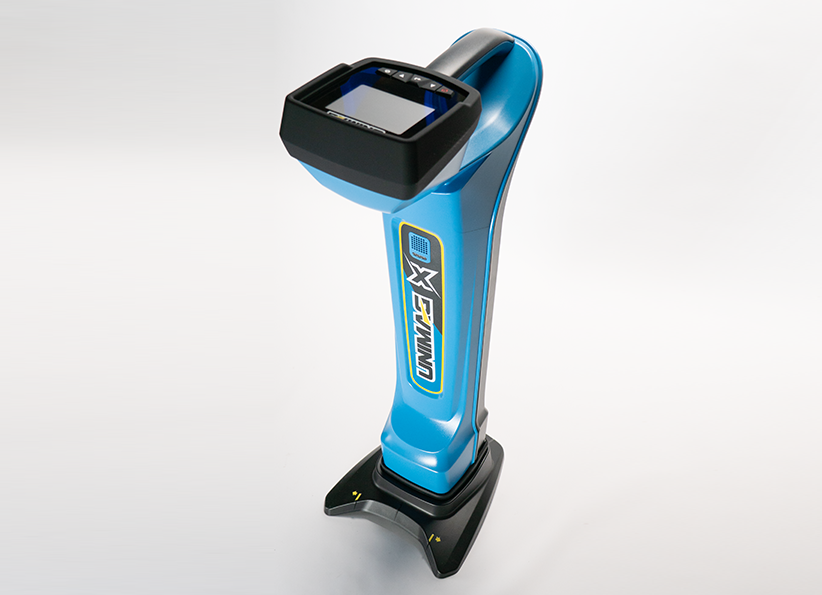

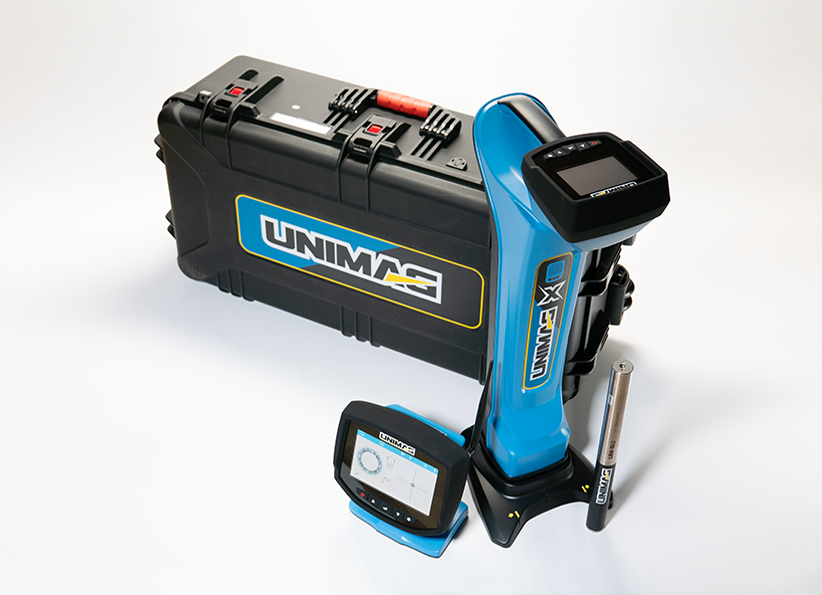

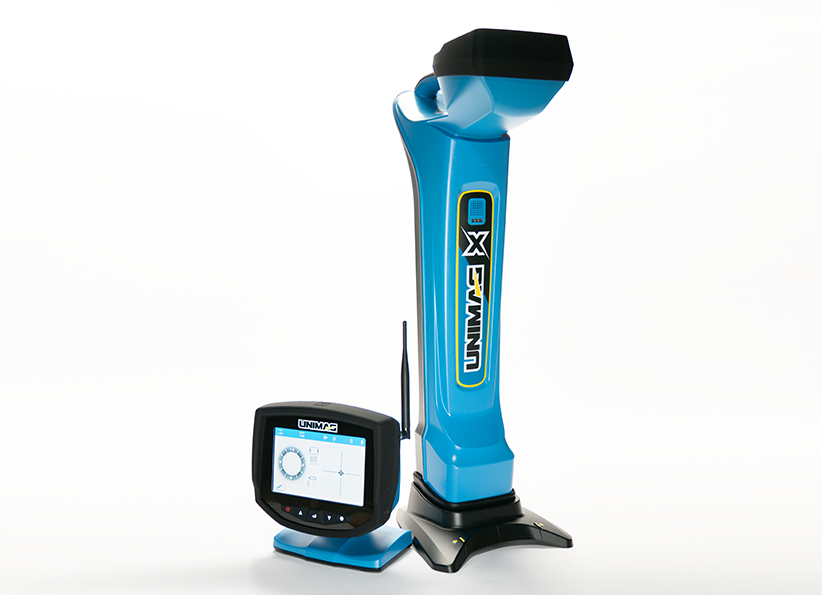

The system combines a rugged stand-up receiver with a high-visibility reflective display and a 7-inch Android-based touchscreen drill monitor, delivering clear real-time drilling information for confident steering decisions.

UNIMAG X supports real-time tracking during active drilling, allowing crews to quickly locate the transmitter signal while maintaining consistent drilling accuracy in a wide range of underground environments.

Integrated data logging enables one-touch recording directly from the drill display. Operators can review rod-by-rod bore data, analyze drilling charts, and document utility crossings for project reporting and compliance.


UNIMAG X HDD Locator System +1 Transmitter $14,900
UNIMAG X HDD Locator System +2 Transmitter $16,900

DOWNLOAD SPECIFICATIONS CALL (847) 955-0050

Specification UNIMAG X HDD Locator System

Parameter Specification
System Frequencies 16 frequencies (0.325 Hz – 41 kHz)
Radio Frequencies 915 MHz
Telemetry 4 radio channels
Maximum Telemetry Range up to 3,000 ft (900 m)
Accuracy ±5%
Power Supply Rechargeable lithium battery 12.5V
Battery Life Up to 50 hours

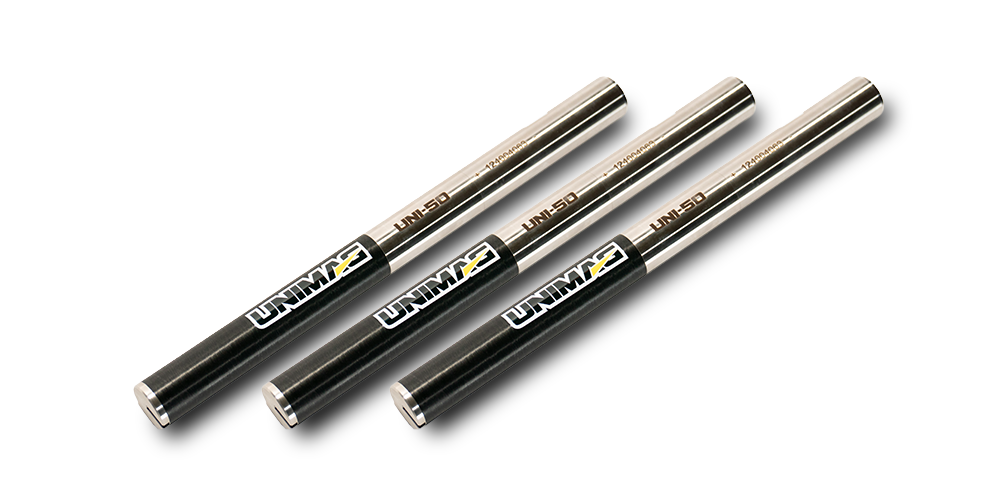

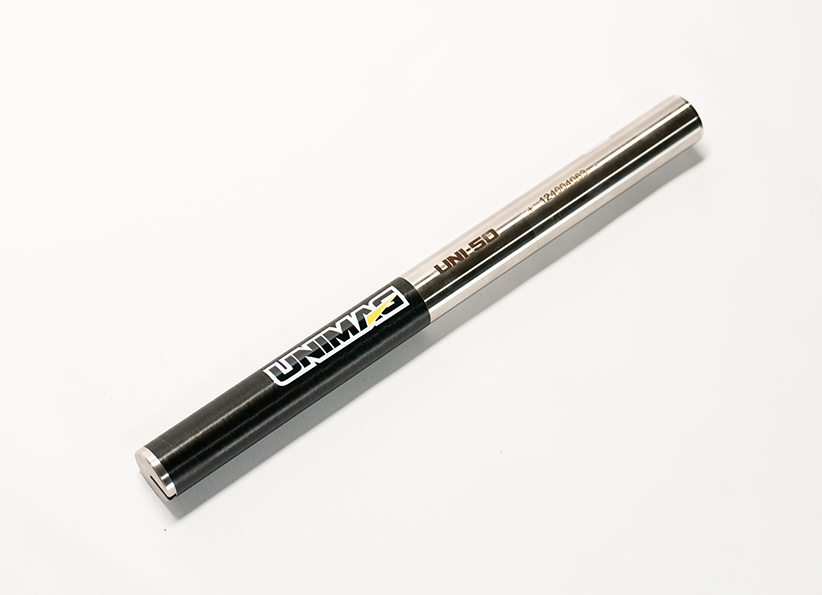

Compatible Transmitter Transmitter UNI 50, Echo 50
Dimensions 29 in × 9 in × 13 in / 73.5 × 23 × 33 cm
Weight 8.5 lbs (3.85 kg)
Parameter Specification
Display 7-inch color touchscreen, Android
Data-log Built-in
Radio Frequency 915 MHz
Telemetry 4 radio channels
Maximum Range up to 3,000 ft (900 m)
Power Supply Rechargeable lithium battery 12.5V
Battery Life Up to 50 hours
Waterproof IP65
DOWNLOAD SPECIFICATIONS CALL (847) 955-0050

Key Features & Available Options

Max Telemetry Range - up to 3,000 ft

0.325 Hz – 41 kHz

7-inch color touchscreen, Android

Transmitter UNI 50

Same day delivery
Lead time - immediately
Full service Support
Worldwide Delivery

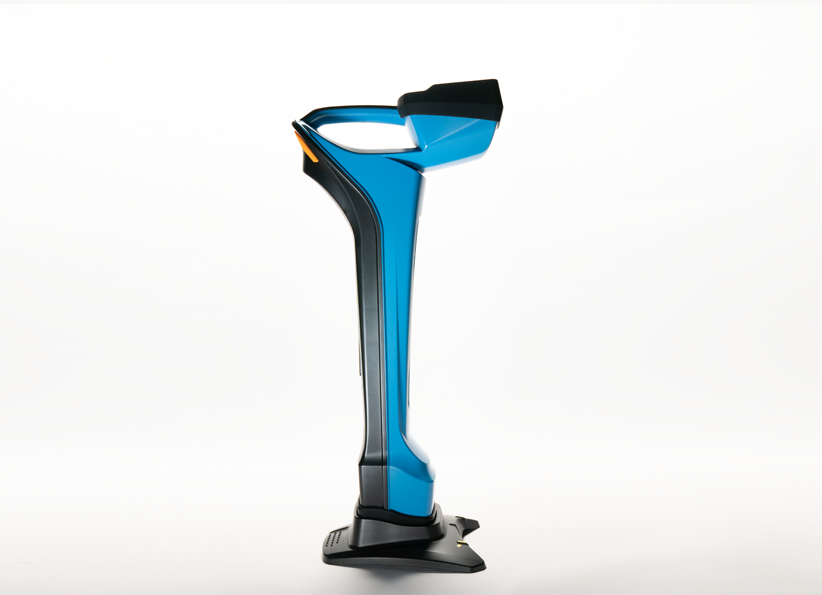

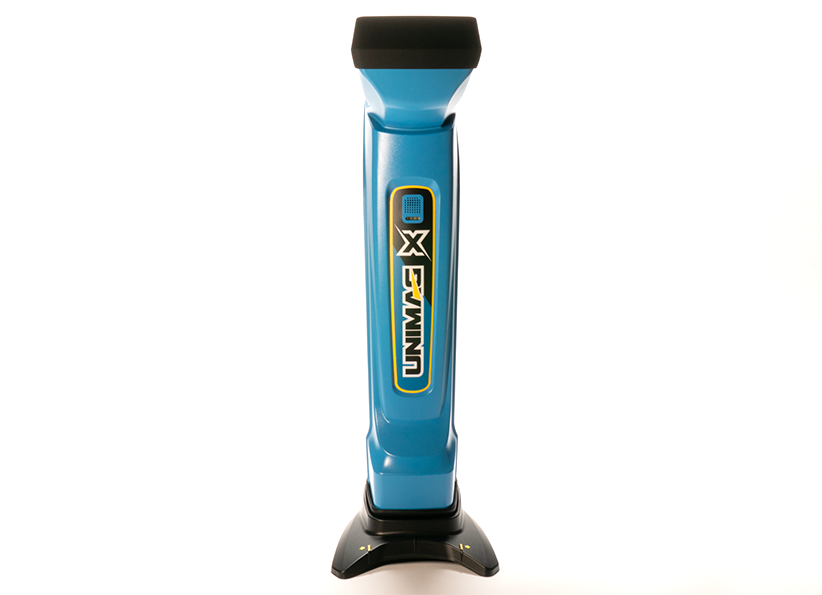

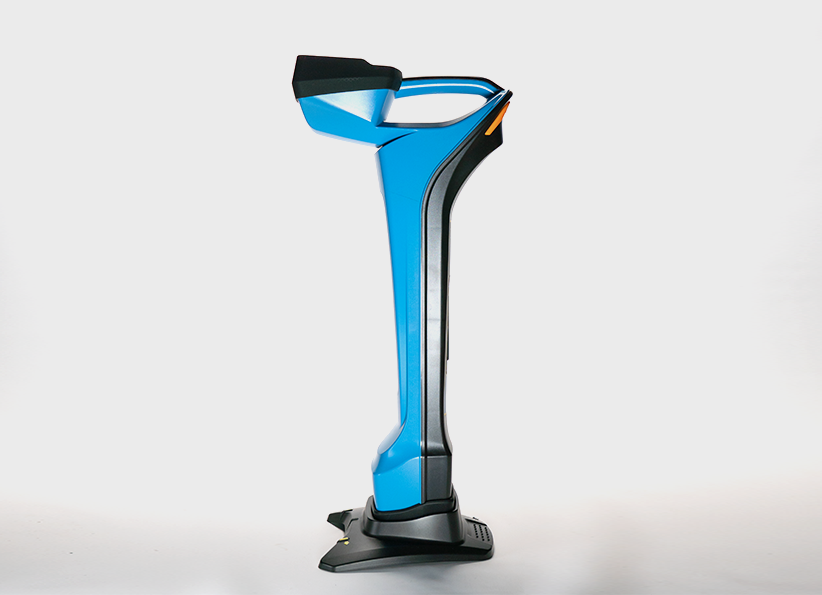

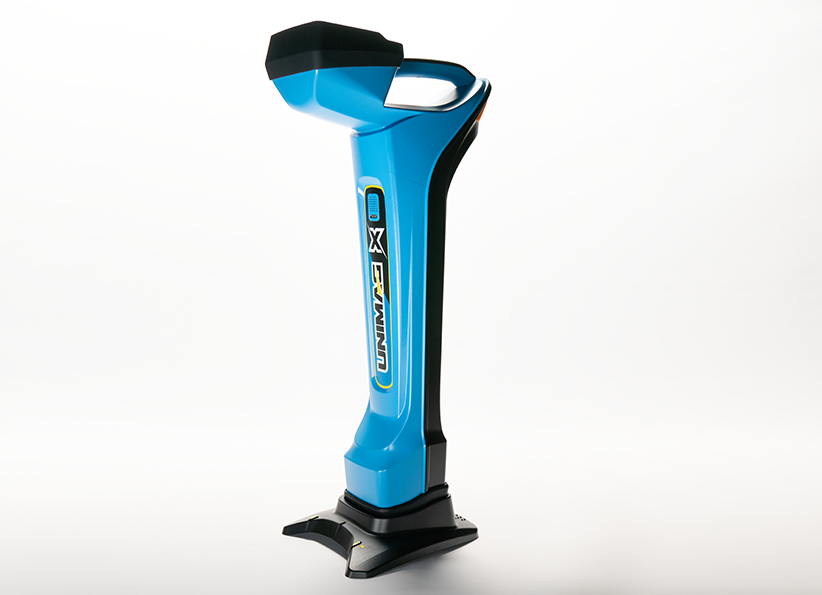

Explore the UNIMAG X from multiple angles

HDD Locator Overview
DOWNLOAD SPECIFICATIONS CALL (847) 955-0050

The UNIMAG X HDD Locator System is a professional locating solution designed Universal HDD to provide accurate underground tracking for horizontal directional drilling operations. Built for modern drilling crews, the system combines reliable signal detection, real-time drill guidance, and integrated data logging to improve locating accuracy and drilling efficiency.

The locating system allows operators to track the transmitter position, monitor bore path direction, and document drilling progress during every stage of the project. With its rugged receiver construction and high-visibility display, the UNIMAG X system performs reliably in a wide range of field conditions including urban environments and complex underground utility areas.

The integrated Android-based drill display provides intuitive control and quick access to drilling data. Operators can log bore information rod by rod, view drilling charts, and record underground utility crossings for project documentation.

Designed for HDD contractors performing utility installation, pipeline construction, telecommunications projects, and infrastructure drilling, the UNIMAG X locator system delivers dependable performance and streamlined workflow for daily drilling operations.
