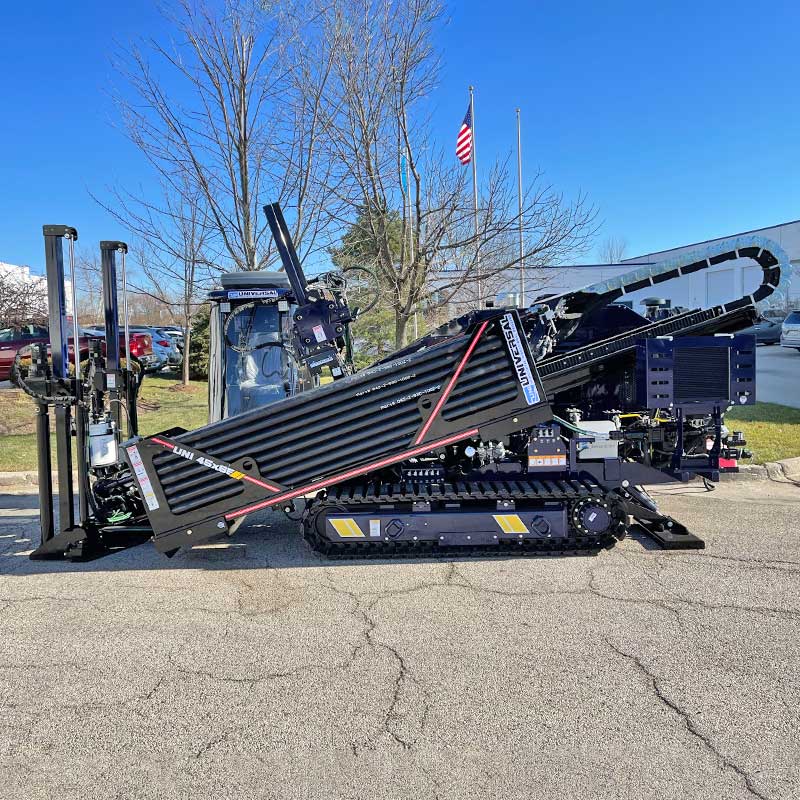

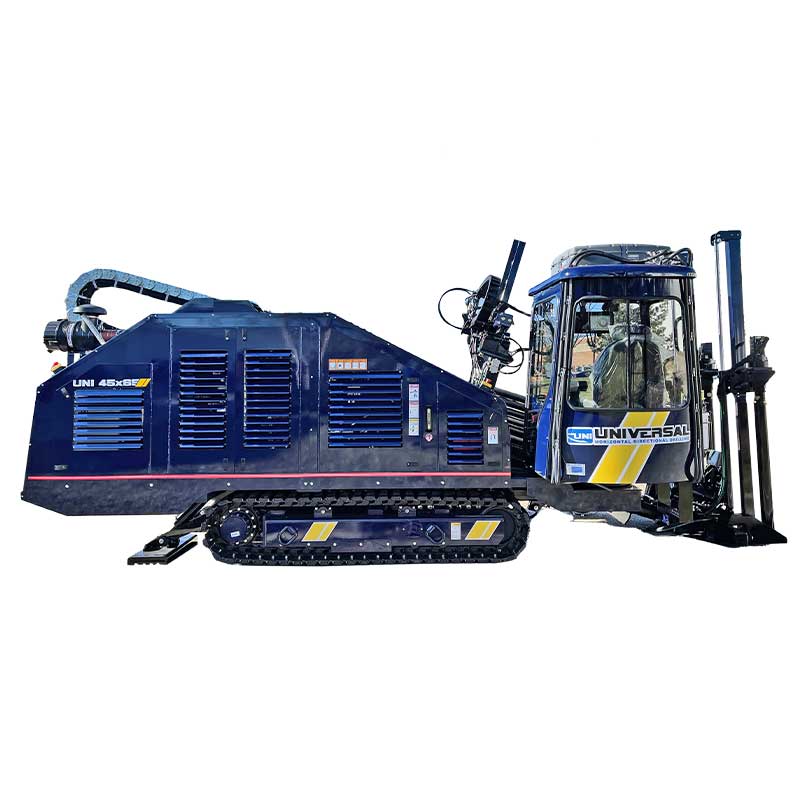

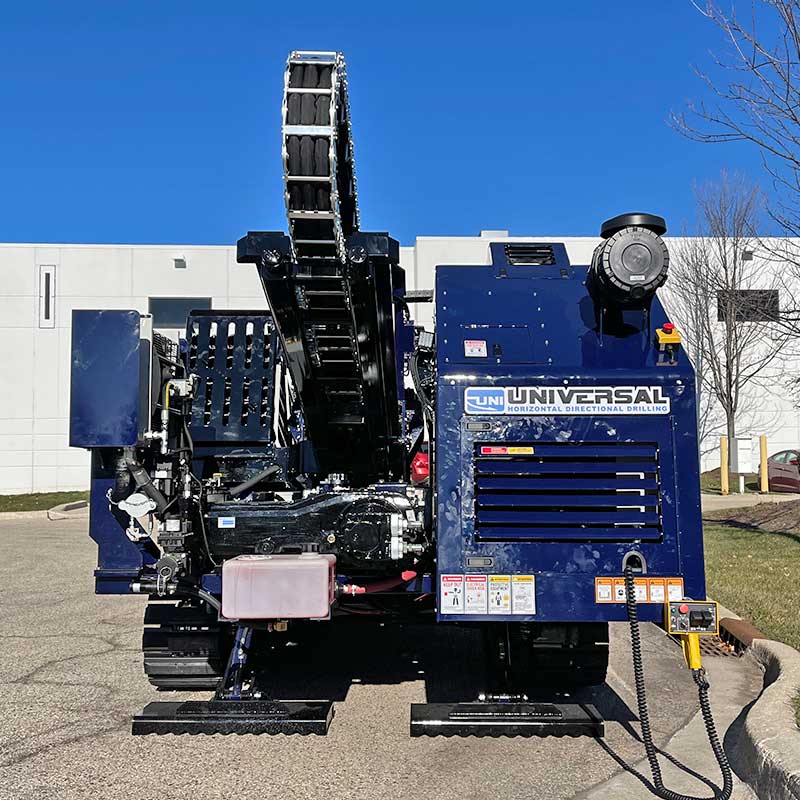

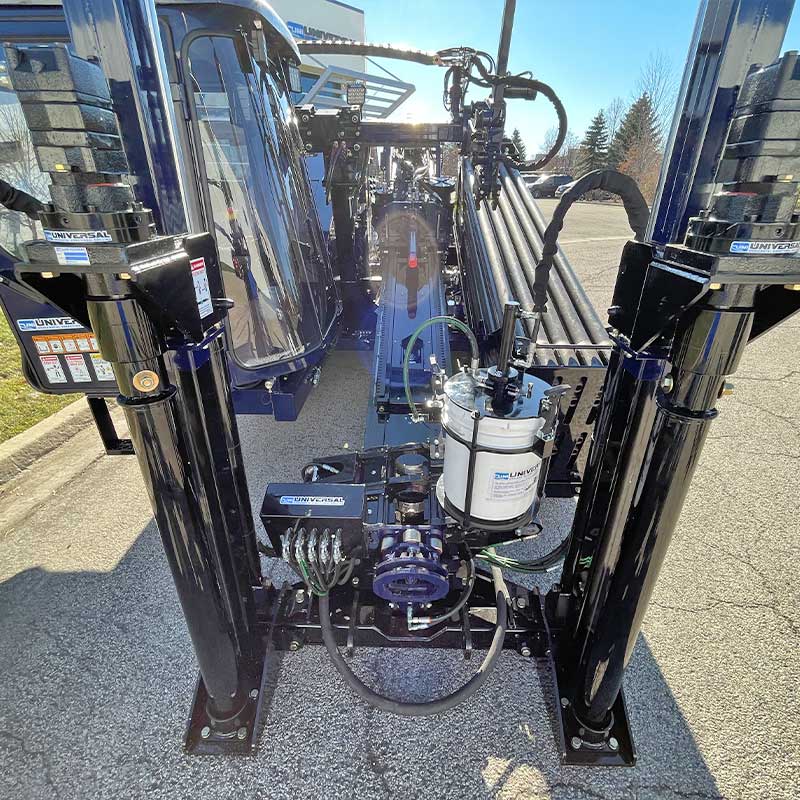

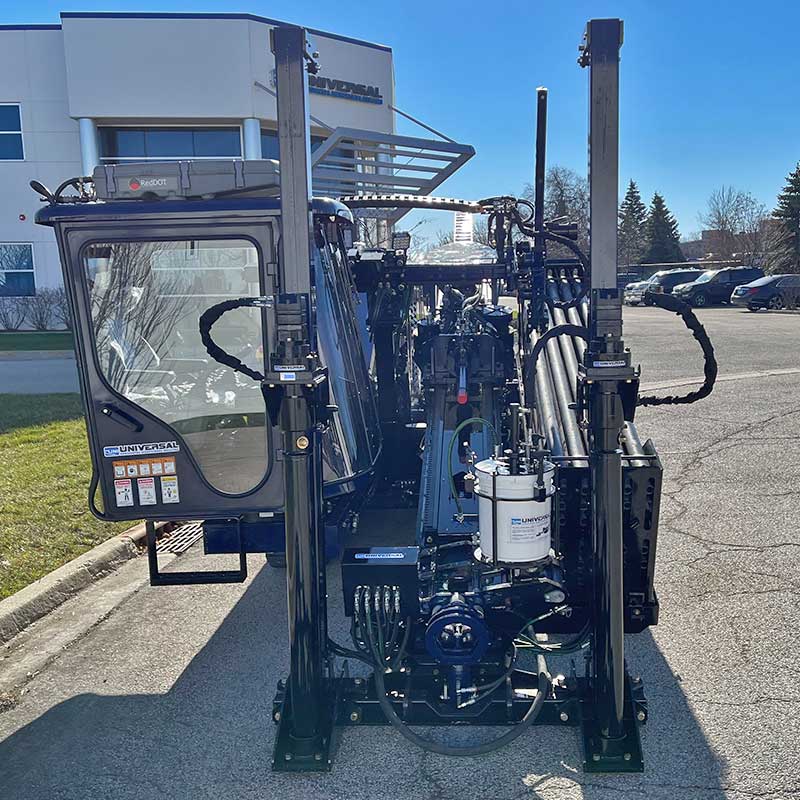

UNI 45x65 Directional Drill

The following directional drill is available in two configurations:

  • 10 ft drill rods
  • 15 ft drill rods

Quick Specs:


45000 lbs


6500 ft-lb


173 hp

Mud Pump

107 gpm

See Full Specification
Specification Sheet

UNI 45x65

Upgrade option UNI 45x90

Up to 9,000 ft-lb Rotary Torque

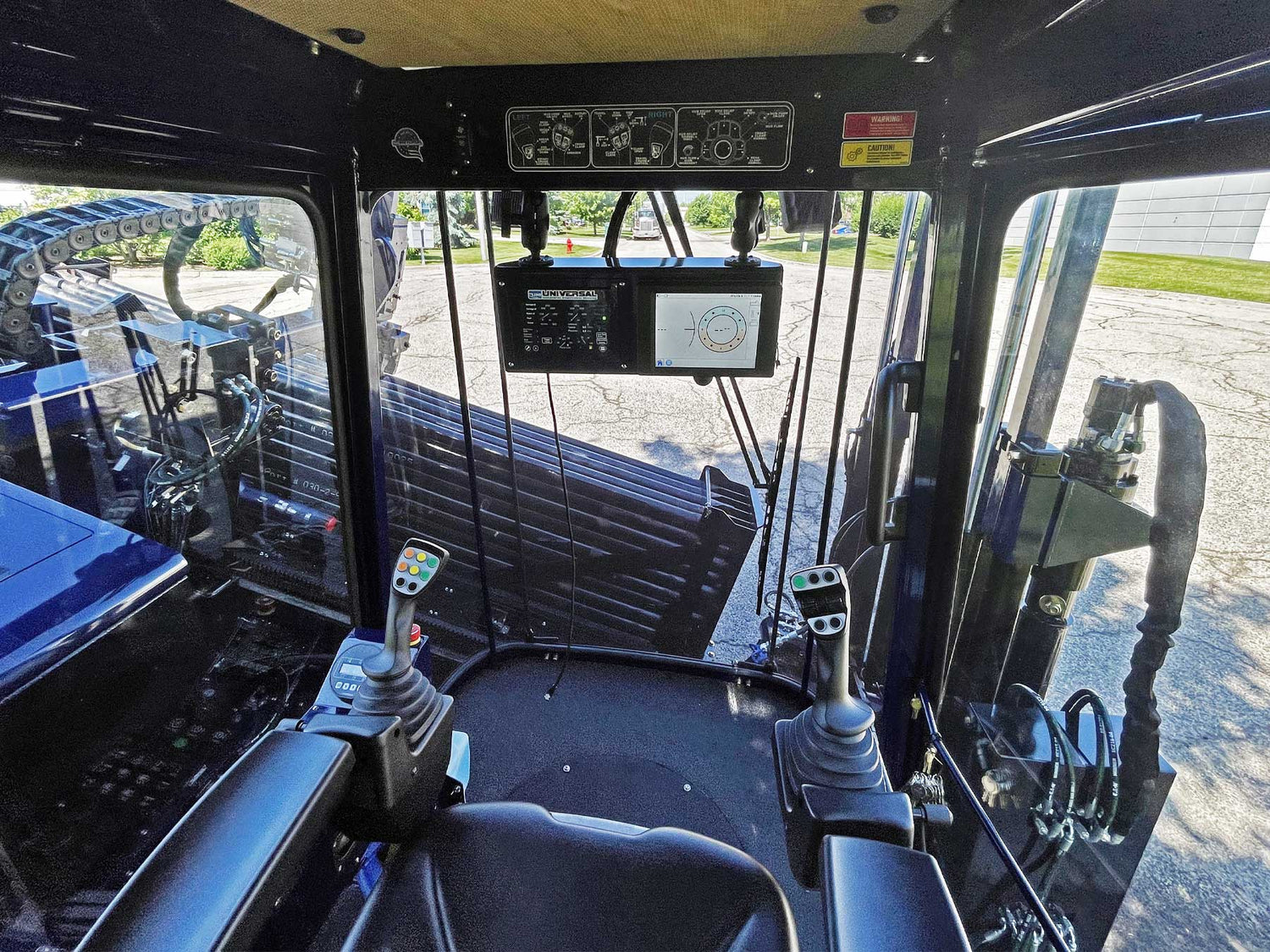

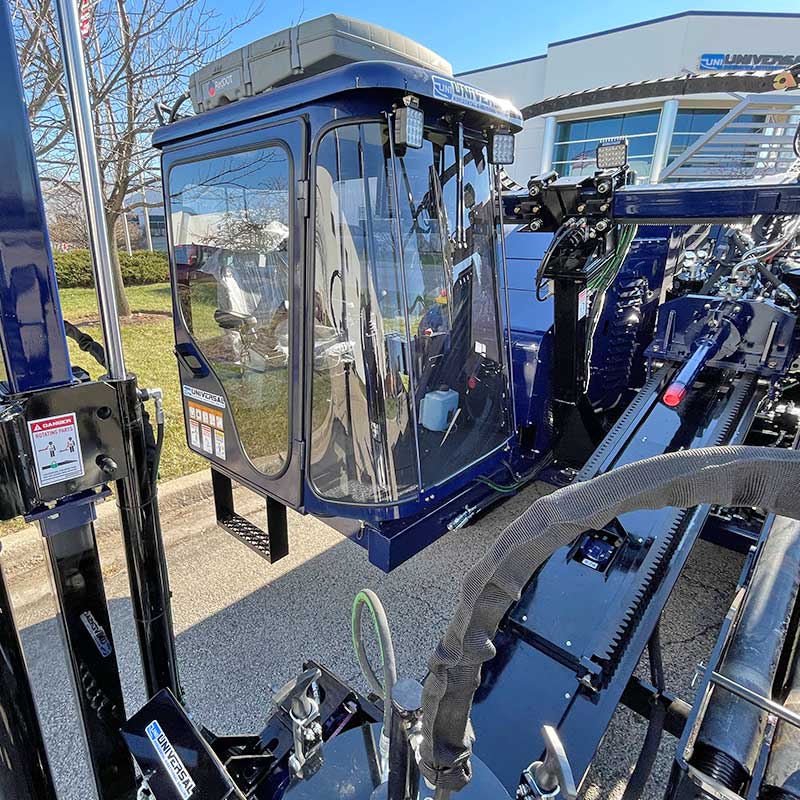

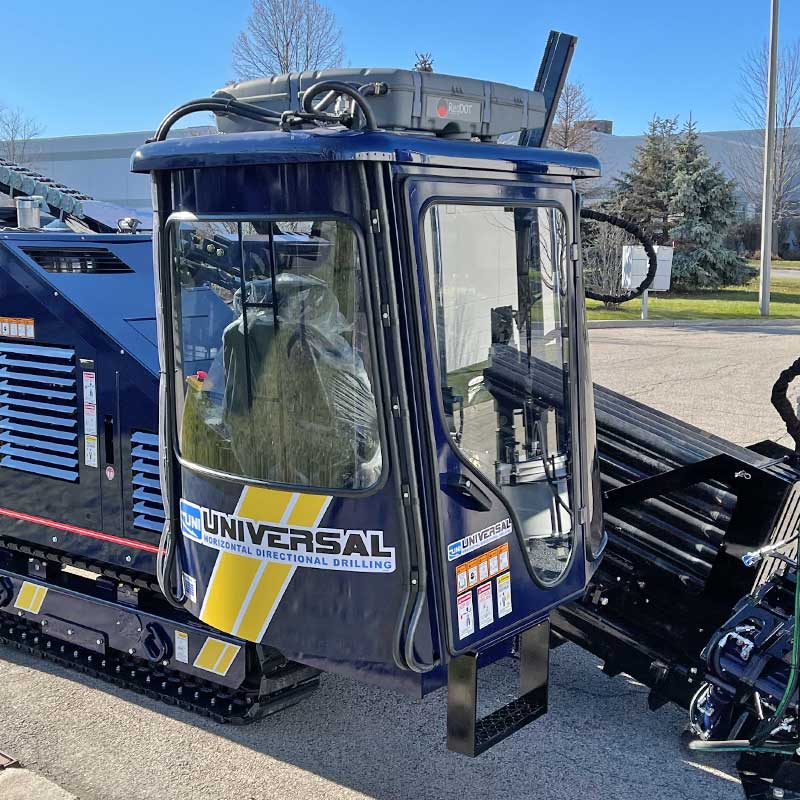

The New Operator's Cab

The New Operator's Cab

We understand that the most important factor in your drill rig's effectiveness is the performance of its operator. To help make their workday as productive as possible, we've incorporated safety and comfort features into the new operator's cab. The new cab ensures operator comfort with features like climate control, all around visibility, air suspension seat and easy to use controls.

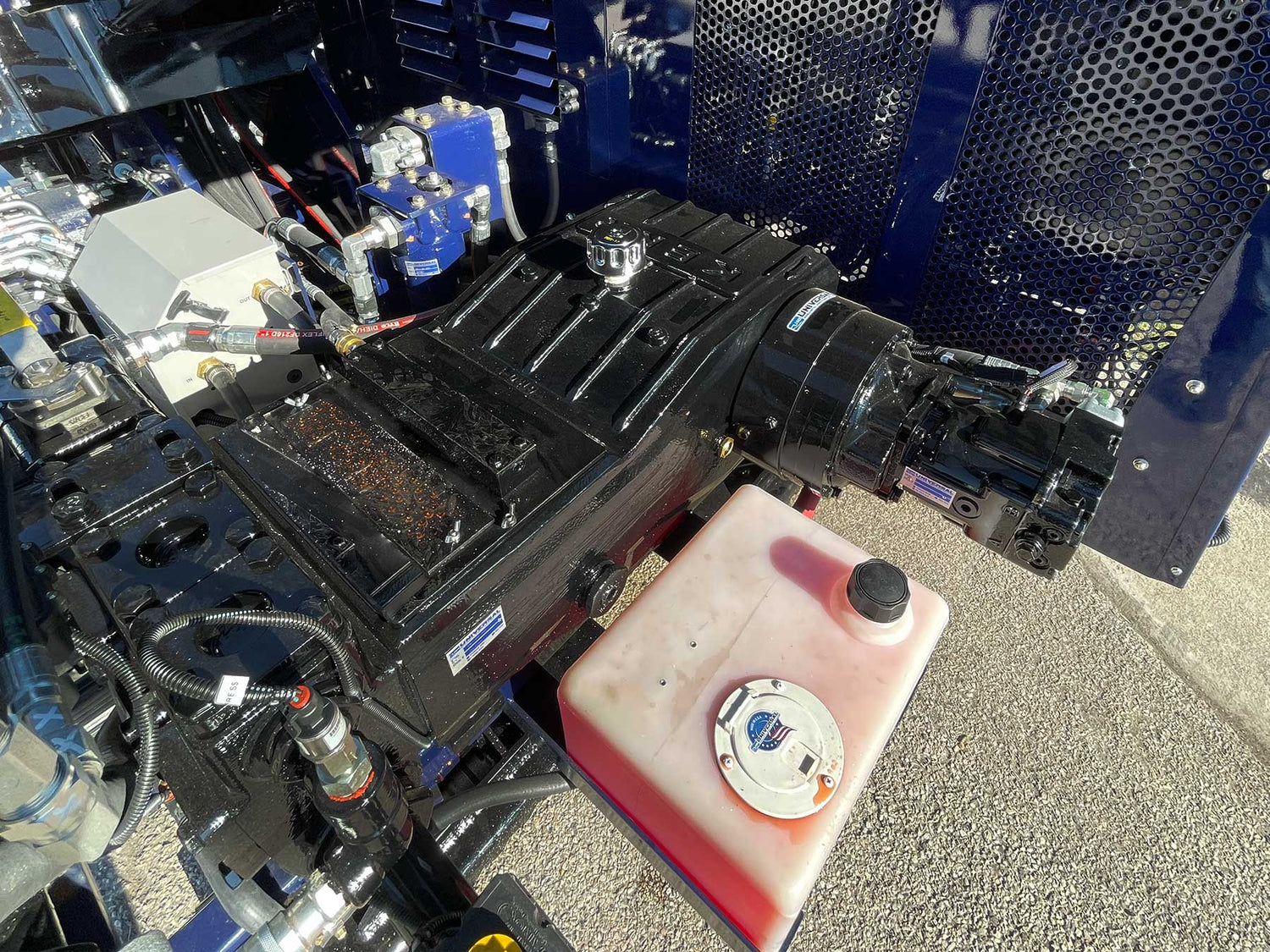

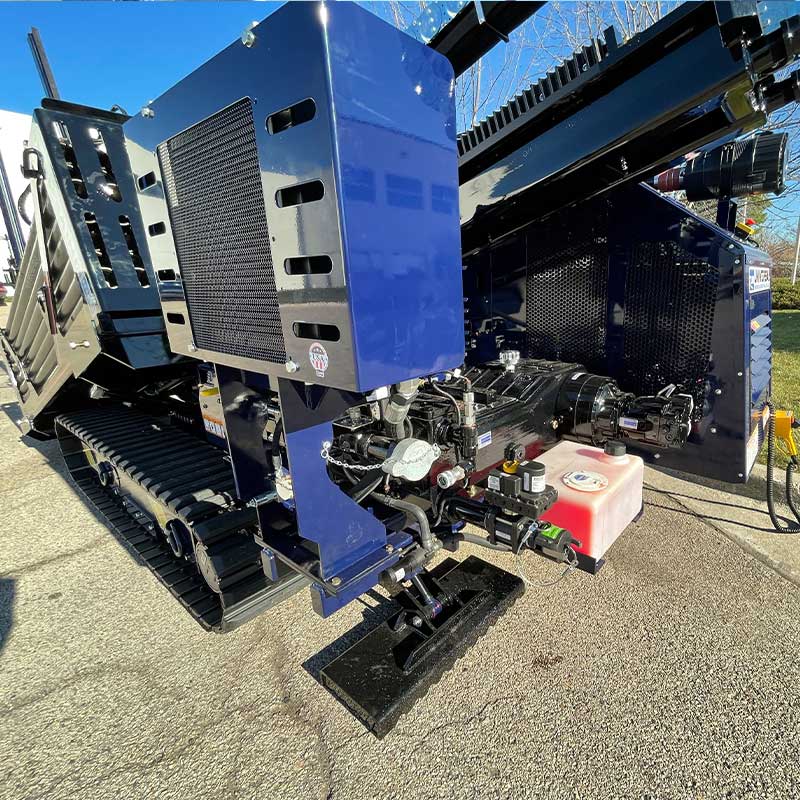

On-Board Mud Pump

On-Board Mud Pump

UNI 45x65 is eqpuiped with on-board mud pump. The pump is capable of delivering up to 107 gal/min and up to 1000 psi. The rig is also equipped with a Pressure Relief Valve for rod loading and unloading.

Auto Greaser

The auto greasing pump delivers the precise amount of clean lubricant on to a rod thread exactly when required.

Wireles Remote

Heated Rack

Steel Tracks with Rubber Pads

Specification, Dimensions and Features:

Dimensions and Weight

Parameters USA Metric
Length 251 inch 638 cm
Width 101 inch 257 cm
Height 95 inch 241 cm
Weight (w/o drill rods) 19200 lbs 8709 kg

Engine Specification

Parameters USA Metric
Make and model Turbo Diesel
Fuel Type Diesel
Gross Horsepower 173 hp 129.0 kw
Rated RPM 2400 rpm
EPA Certification Tier IV

Operational Specification

Parameters USA Metric
Thrust 45000 lbs 200.2 kN
Pullback 45000 lbs 200.2 kN
Spindle Torque (Low) 3250 ft-lb 4406.4 Nm
Spindle Torque (High) 6500 ft-lb 8812.8 Nm
Rotation Speed (Low) 100 rpm
Rotation Speed (High) 200 rpm
Operating Angle 18 °

Drill Pipe Specification

Parameters USA Metric
2 7/8" FS1 900 (Vermeer® compatible) 10 ft 3.0 m
Basket Capacity 40 rods
2 7/8" FS1 (Vermeer® compatible) 15 ft 4.6 m
Basket Capacity 40 rods

Fluid Specification

Parameters USA Metric
Make and model Kerr KT-3300PT
Flow (*Max) 107 gpm 405.5 lpm
Pressure (*Max) 1000 psi 68.9 bar
Fuel Tank 40 gal 151.4 lit
Hydraulic Tank 55 gal 208.2 lit


Feature Available Notes
Automatic Rod Loader Yes
Stake-down System Yes 2 Point Auger System
Strike Alert Yes
Mud Flow Indicator Yes
Support Lights Yes
Auto Rod Greaser Yes
Air Hammer Ready Yes
Locating System Yes On-board remote display
Operator's Station Glassed Cab (Heater & Air Conditioner, Aurora Digitrak Display, Video Camera with LCD monitor)
Auto Curve Yes
Wired Remote Yes Maneuver, load, unload and setup your rig
Wireless Remote Yes Control essential functions from safe distance
Wire Line Ready Yes
