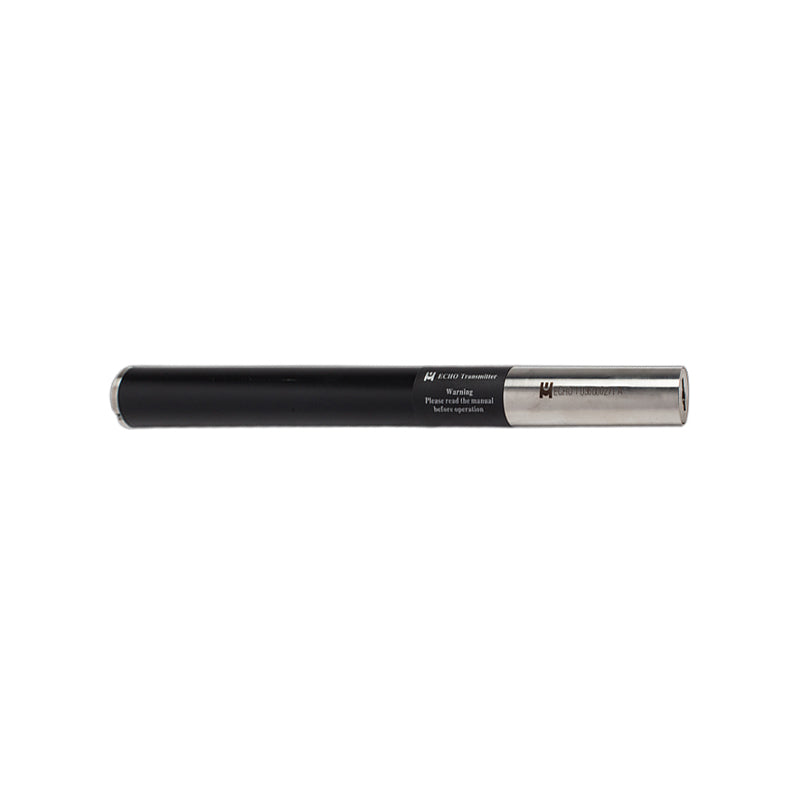

Underground Magnetics Echo 1 Transmitter

The Echo 1 is a multi frequency standard transmitter. It offers three frequencies which can be selected via the receiver. Add in the ability to go up to 130 feet deep and you have a standard transmitter that can power through interference. With a battery life of up to 48 hours of continuous usage and the power to cut through noise, this standard transmitter is one of the most advanced on the market.

The power you need, the price you want.

Weight 1.5 lbs
Dimensions 15 x 1.25 in
Frequency

4kHz/19kHz/30kHz

Depth Range

90ft/130ft/130ft

Power

2 C-cell batteries, Echo Cell Kit or lithium battery pack

Battery life

12 hours, 20 hours or 48 hours

Roll

24 Transmitter Roll Positions

Pitch

0.1% resolution

Temperature Allowed

Under 190°F
