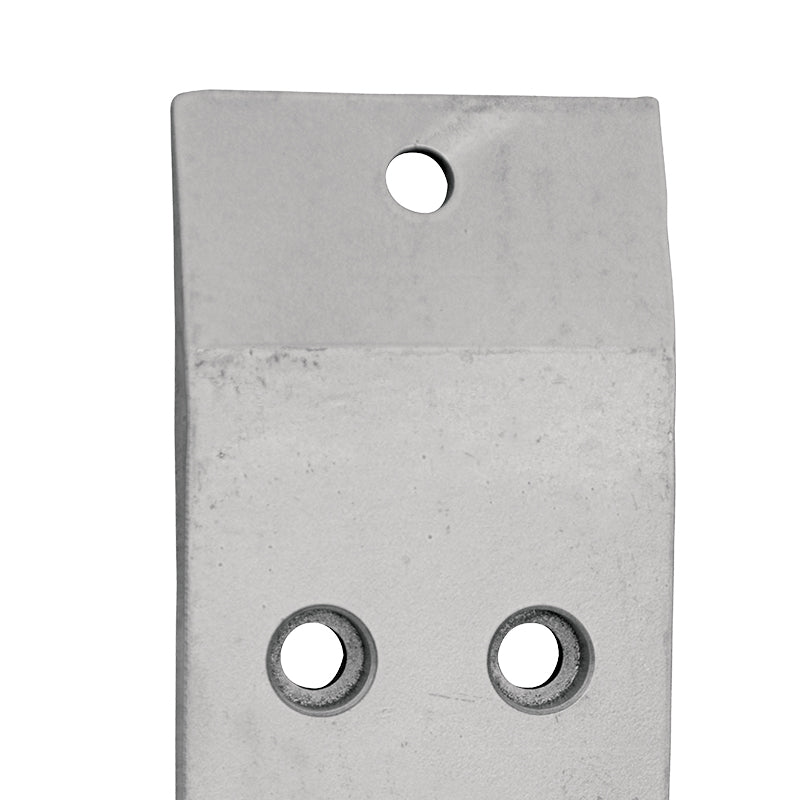

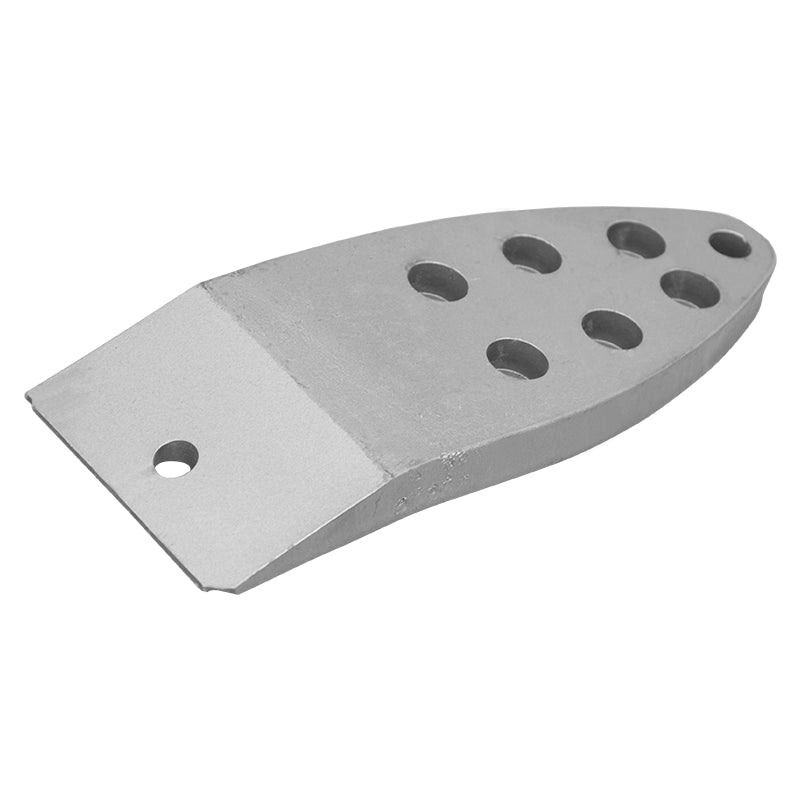

Standard HDD Drill Bit

Vermeer® Compatible Bits

Size Type Bolt Pattern
3" Standard Small
3-1/2" Standard Small
4-1/2" Standard Small
5" Standard Small

Size Type Bolt Pattern
4-1/2" Standard Large
5" Standard Large
5-1/2" Standard Large
6" Standard Large

Ditch Witch® Compatible Bits

Size Type Bolt Pattern
3" Standard 5 Bolt
3-1/2" Standard 5 Bolt
4" Standard 5 Bolt
4-1/2" Standard 5 Bolt
5" Standard 5 Bolt

Size Type Bolt Pattern
5" Standard 6 Bolt
5-1/2" Standard 6 Bolt
6" Standard 6 Bolt
