COMPACT HDD MUD MIXING SYSTEMS

Available in gasoline and diesel configurations, delivering reliable slurry preparation, high flow performance, and consistent drilling fluid quality for demanding jobsite conditions

COMPACT HDD MUD MIXING SYSTEMS

Available in gasoline and diesel configurations, delivering reliable slurry preparation, high flow performance, and consistent drilling fluid quality for demanding jobsite conditions
Flow Capacity

up to 370 GPM

Mixing System

Venturi

Engine

24 hp

Power Options

Gasoline , Diesel

UNIMIX 24 Series Mud Mixing Systems

The UNIMIX 24 mud mixing system is designed for reliable drilling fluid preparation in horizontal directional drilling operations. Equipped with a high-capacity centrifugal pump and an integrated Venturi hopper, the system ensures fast and consistent mixing of bentonite and drilling additives.

With flow capacity of up to 370 GPM, the UNIMIX 24 provides efficient slurry preparation for small and mid-size HDD rigs. The system is available in gasoline and diesel configurations, allowing contractors to select the most suitable power option for jobsite conditions. Its compact skid-mounted design allows easy transportation and quick deployment on drilling projects.

UNIMIX 24 $9,150 - gasoline
UNIMIX 24 $13,500 - diesel

2-3 days shipping - check availability.

2-3 days shipping CALL (847) 955-0050

Technical Specifications & Features UNIMIX 24

Gasoline, Diesel

Parameter UNIMIX 24 Gasoline - $9,150 UNIMIX 24 Diesel - $13,500
Pump Type Centrifugal Centrifugal
Maximum Flow up to 370 GPM up to 370 GPM
Rated Pump Speed 3600 RPM 3600 RPM
Mixing System Integrated Venturi hopper Integrated Venturi hopper
Parameter UNIMIX 24 Gasoline UNIMIX 24 Diesel
Rated Power 24.0 HP 24.0 HP

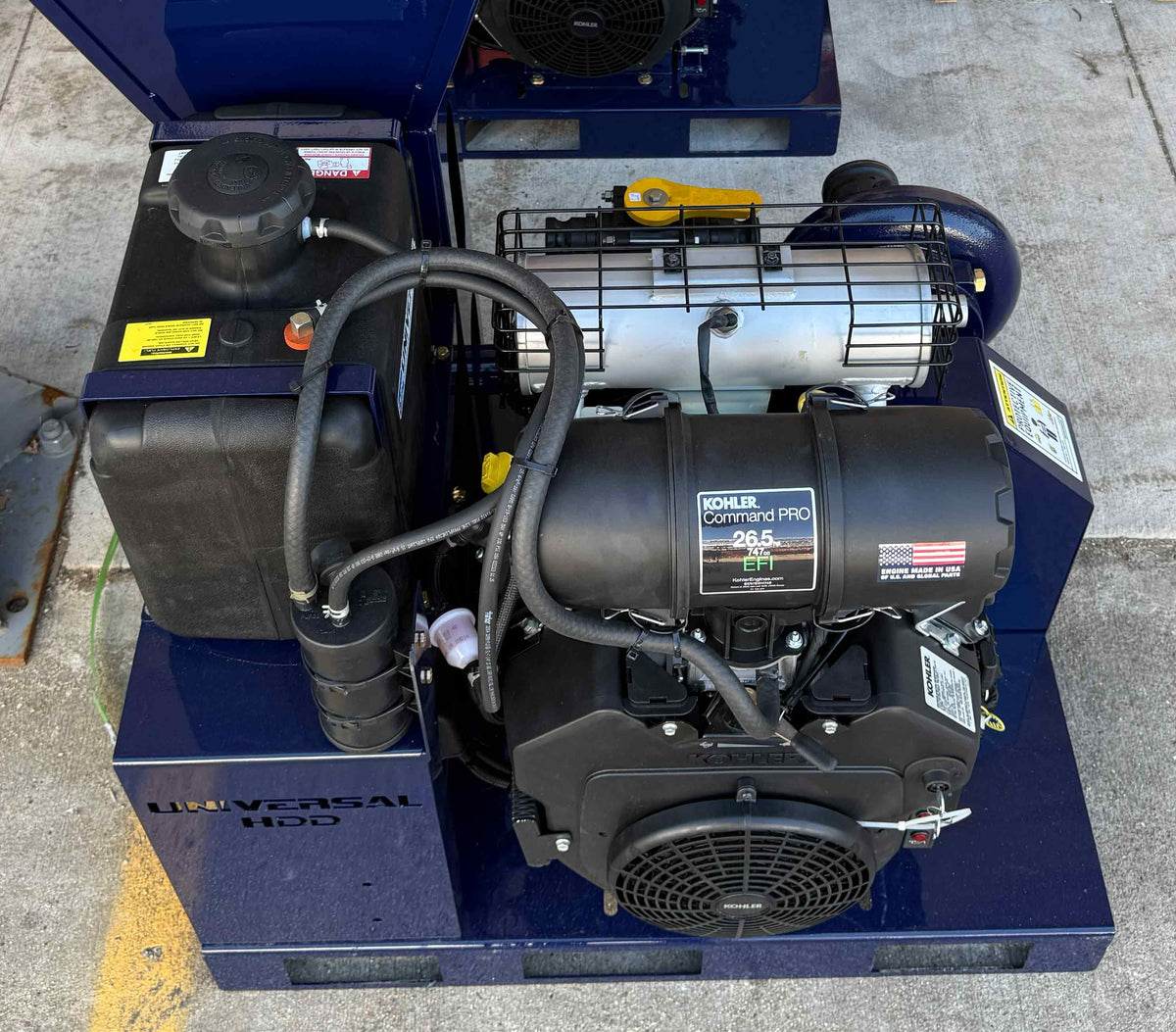

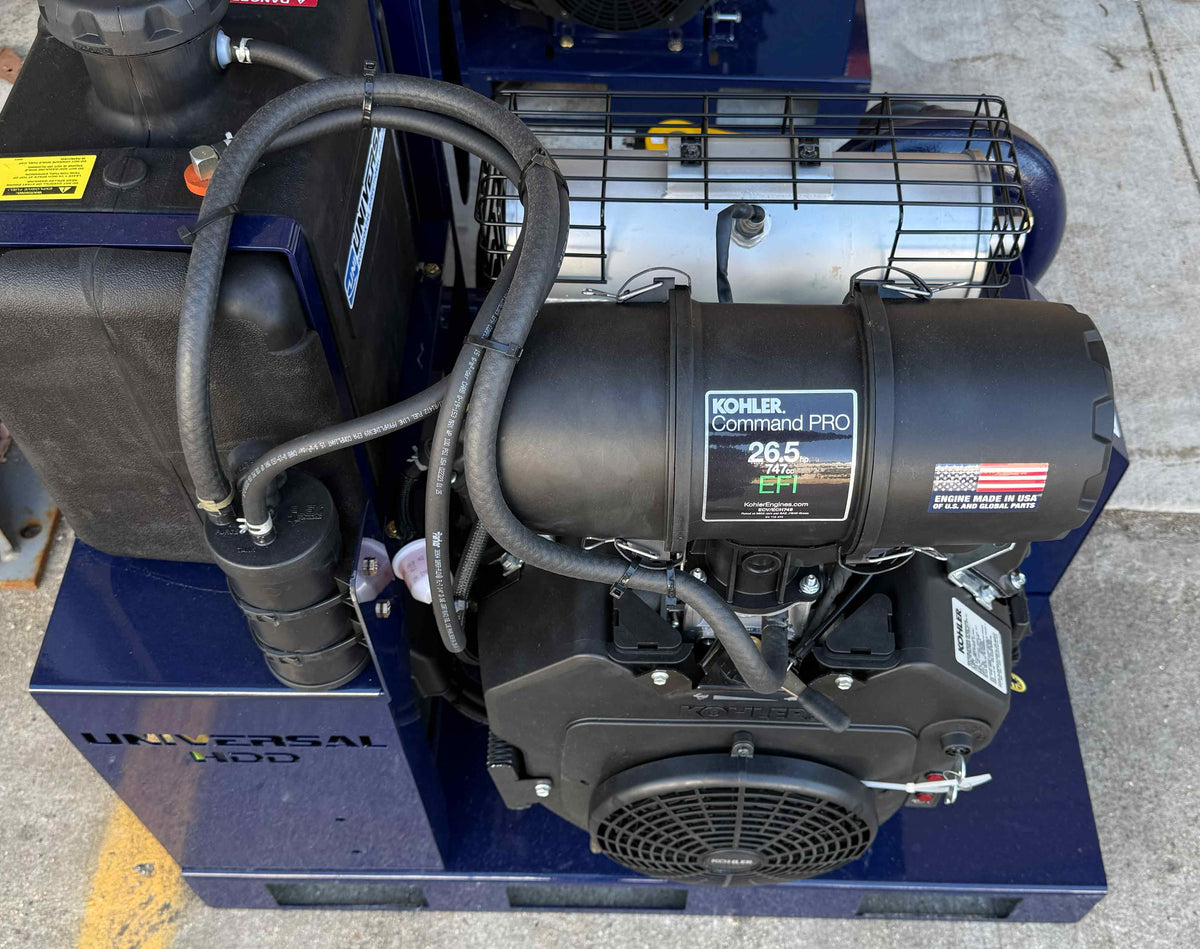

Engine / Motor Type Air-cooled, 4-stroke, OHV, single cylinder Air-cooled, 4-stroke, high-output diesel
Voltage - -
Amperage - -
Fuel Type Gasoline Diesel
Fuel Tank Capacity 6.4 qt 6.4 qt
Starter Electric start with manual bypass Electric start with manual bypass
Engine Hour Meter Included Included
Engine Protection Low Oil Alert Low Oil Alert
Parameter UNIMIX 24 Gasoline UNIMIX 24 Diesel
Operating Temperature 14°F to 104°F 14°F to 104°F
Mounting Type Skid-mounted Skid-mounted
Parameters UNIMIX 24 Gasoline UNIMIX 24 Diesel
Frame Material Carbon steel Carbon steel
Lifting points Included Included
Forklift pockets Included Included
Parameter UNIMIX 24 Gasoline UNIMIX 24 Diesel
Length 44.7 in 51.3 in
Width 33.9 in 43.7 in
Height 39.9 in 39.9 in
2-3 days Shipping CALL (847) 955-0050
Manufactured in USA
Lead time 1-2 days
Full service Support
Worldwide Delivery

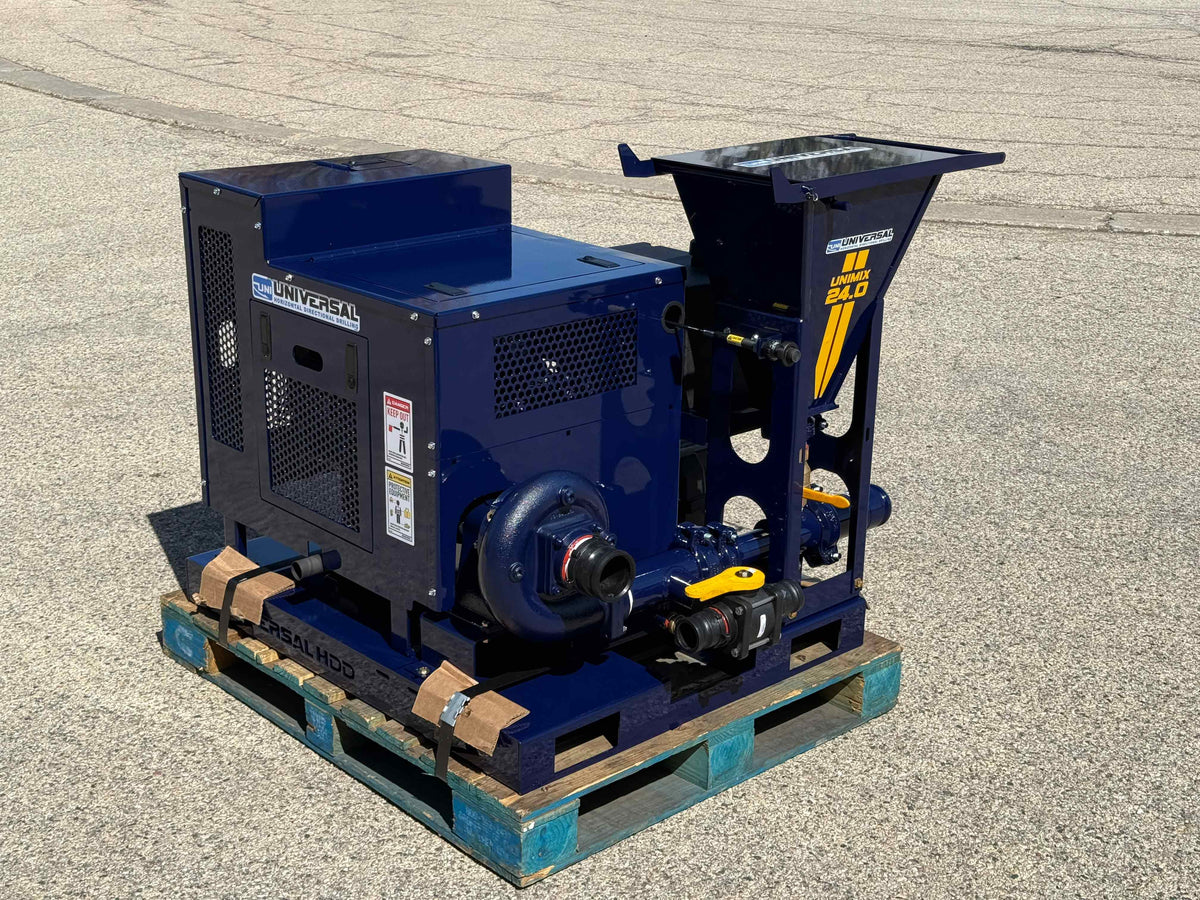

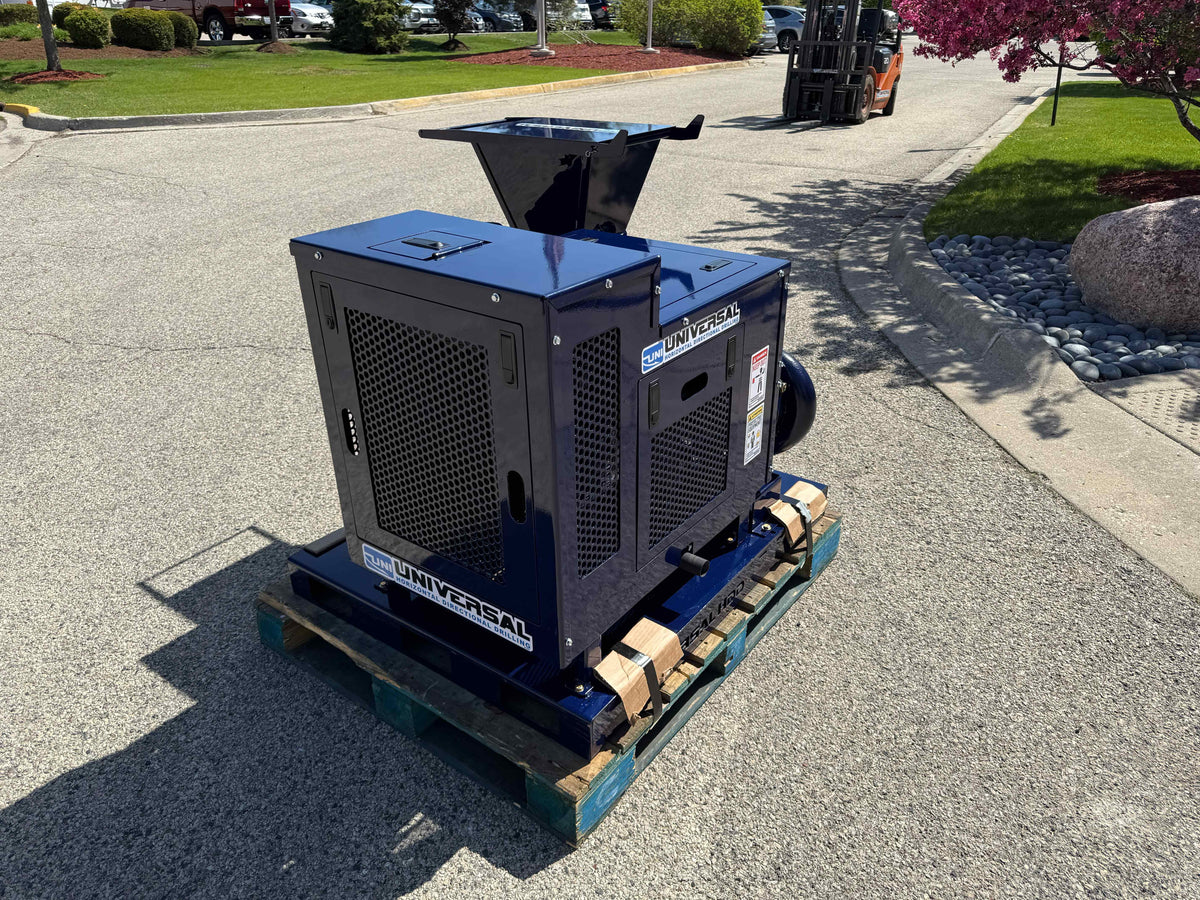

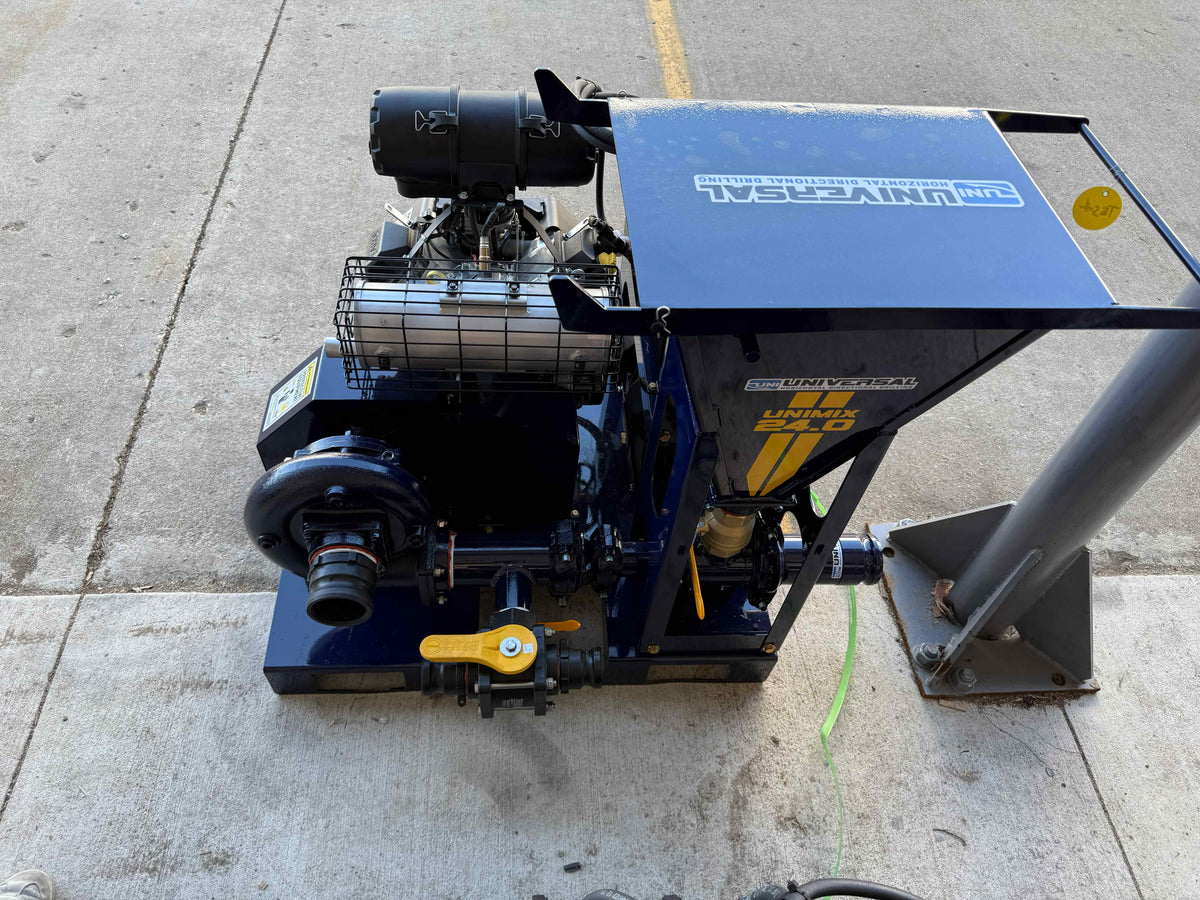

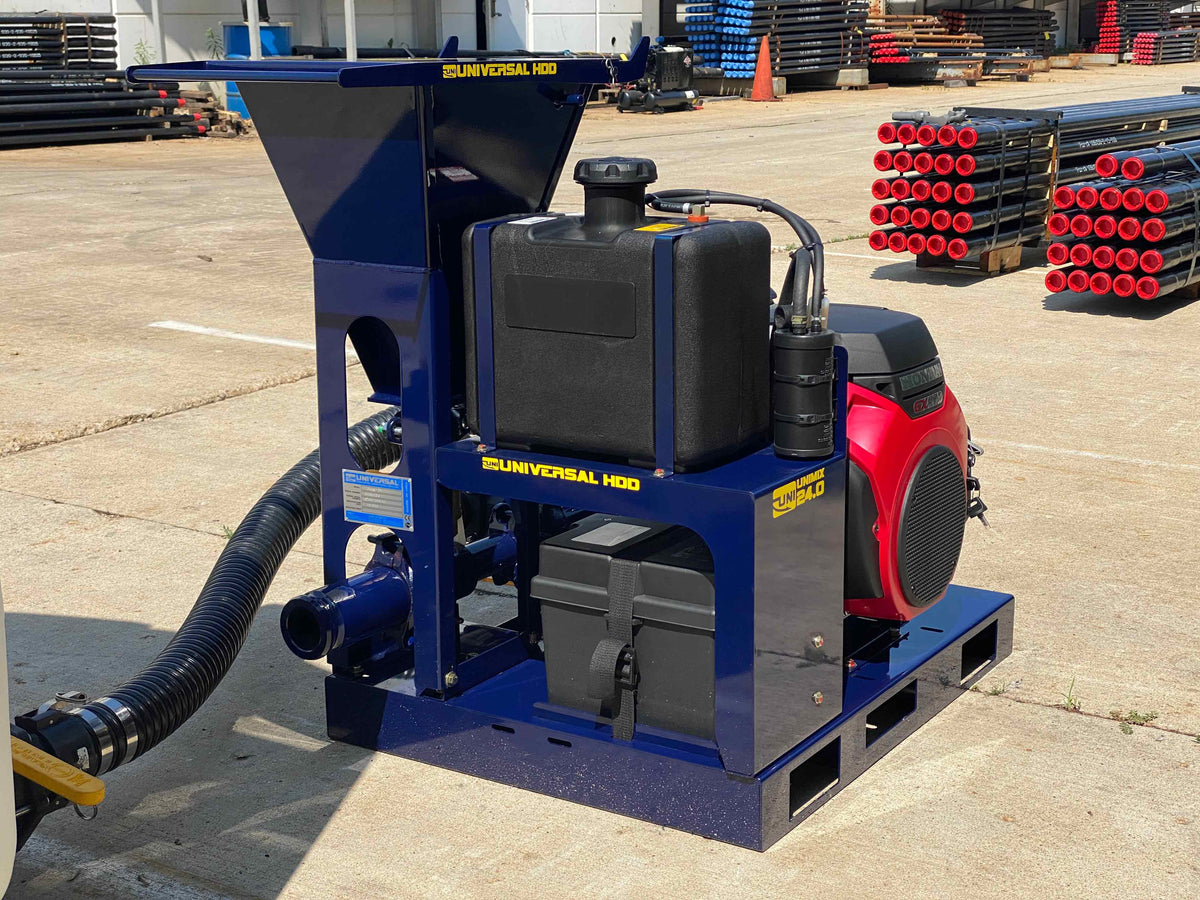

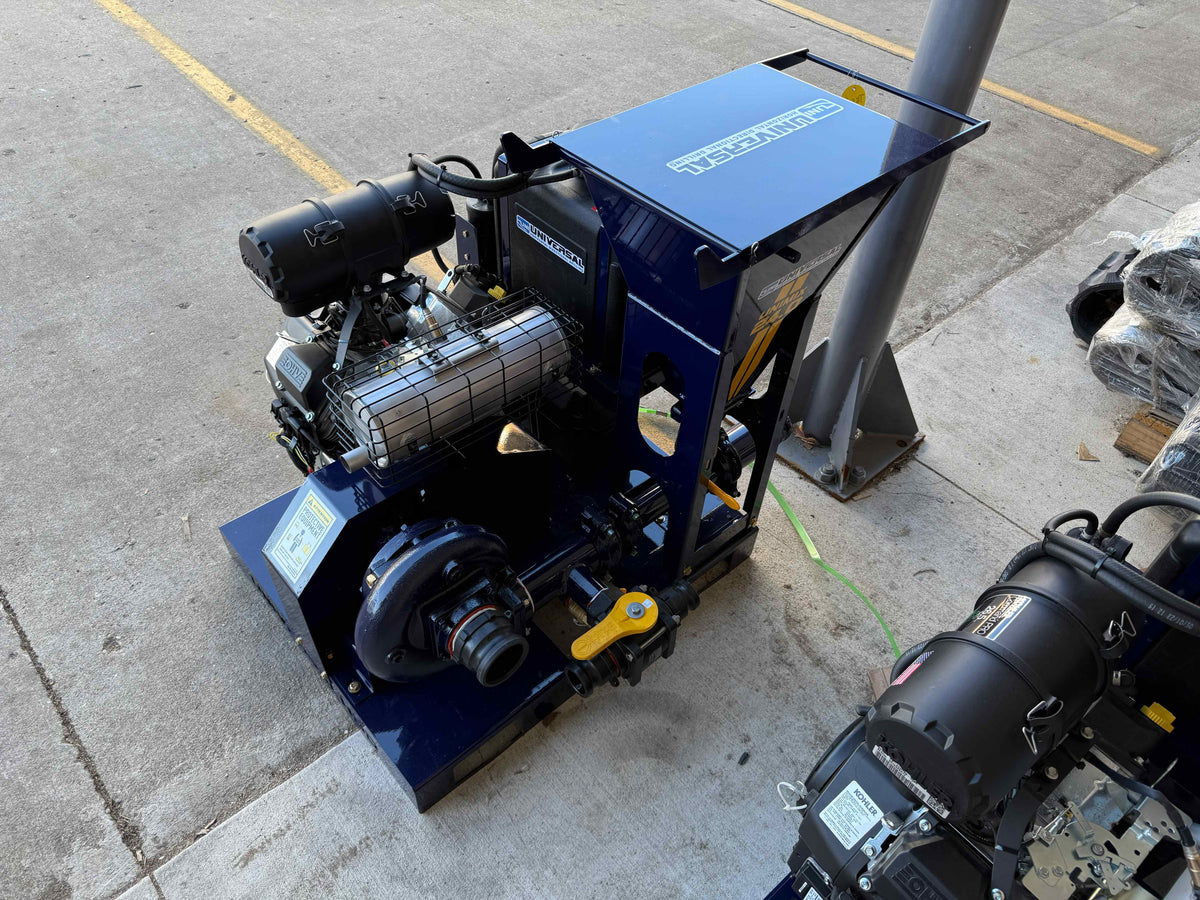

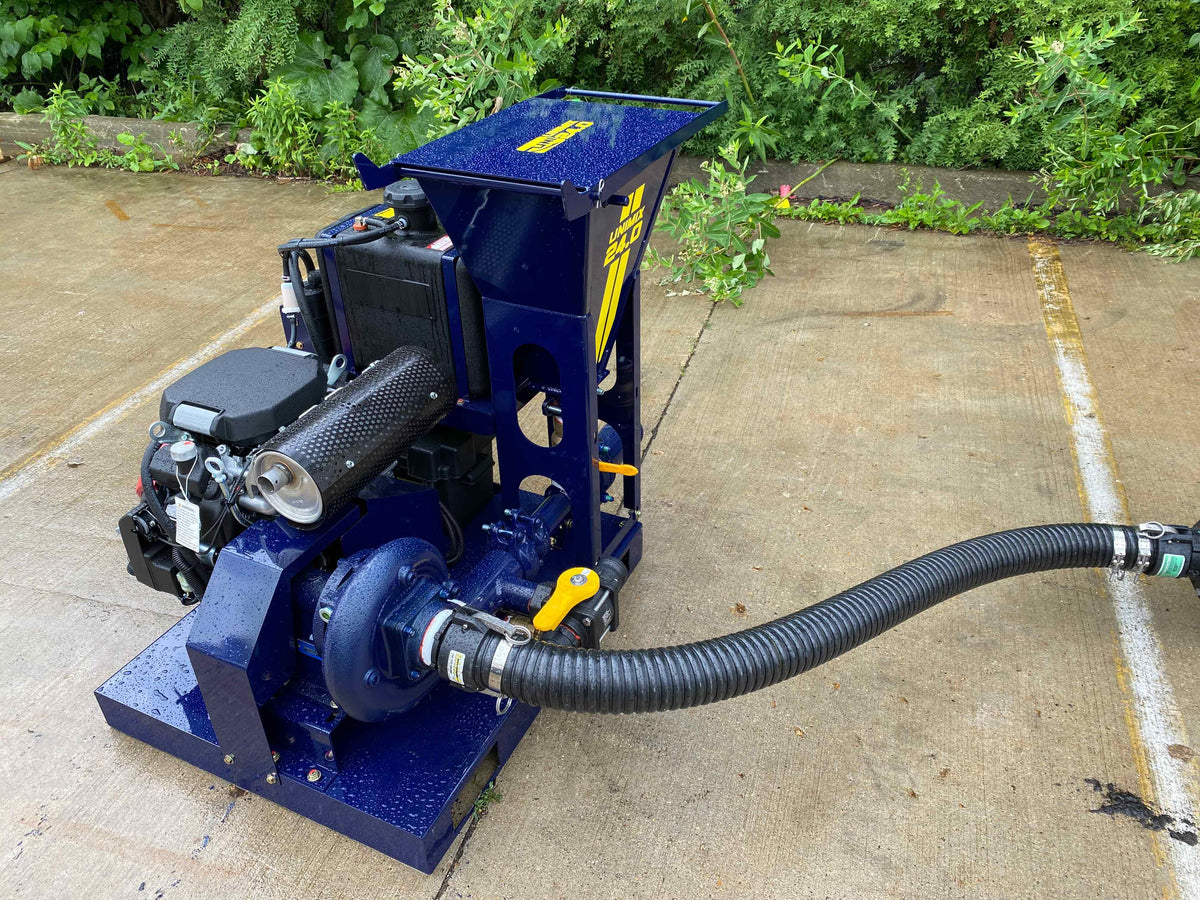

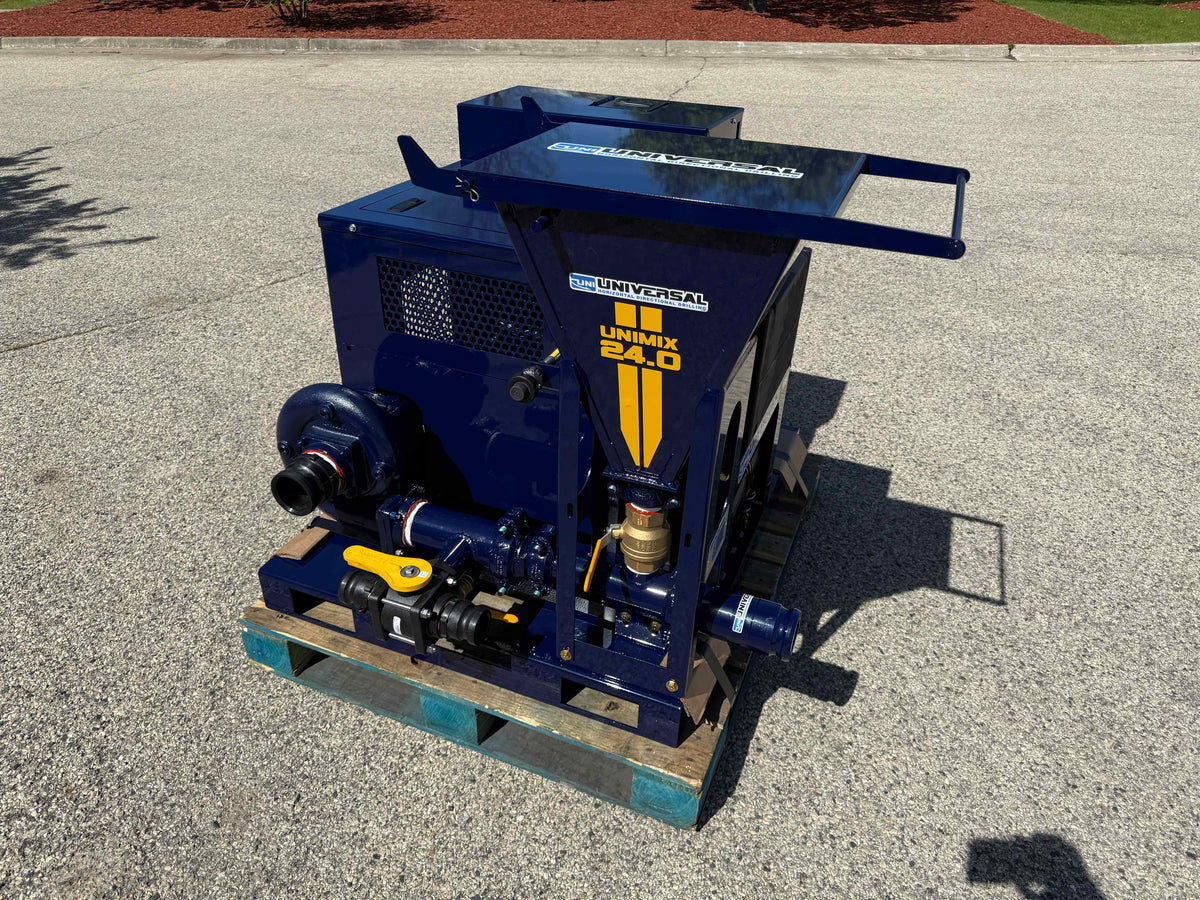

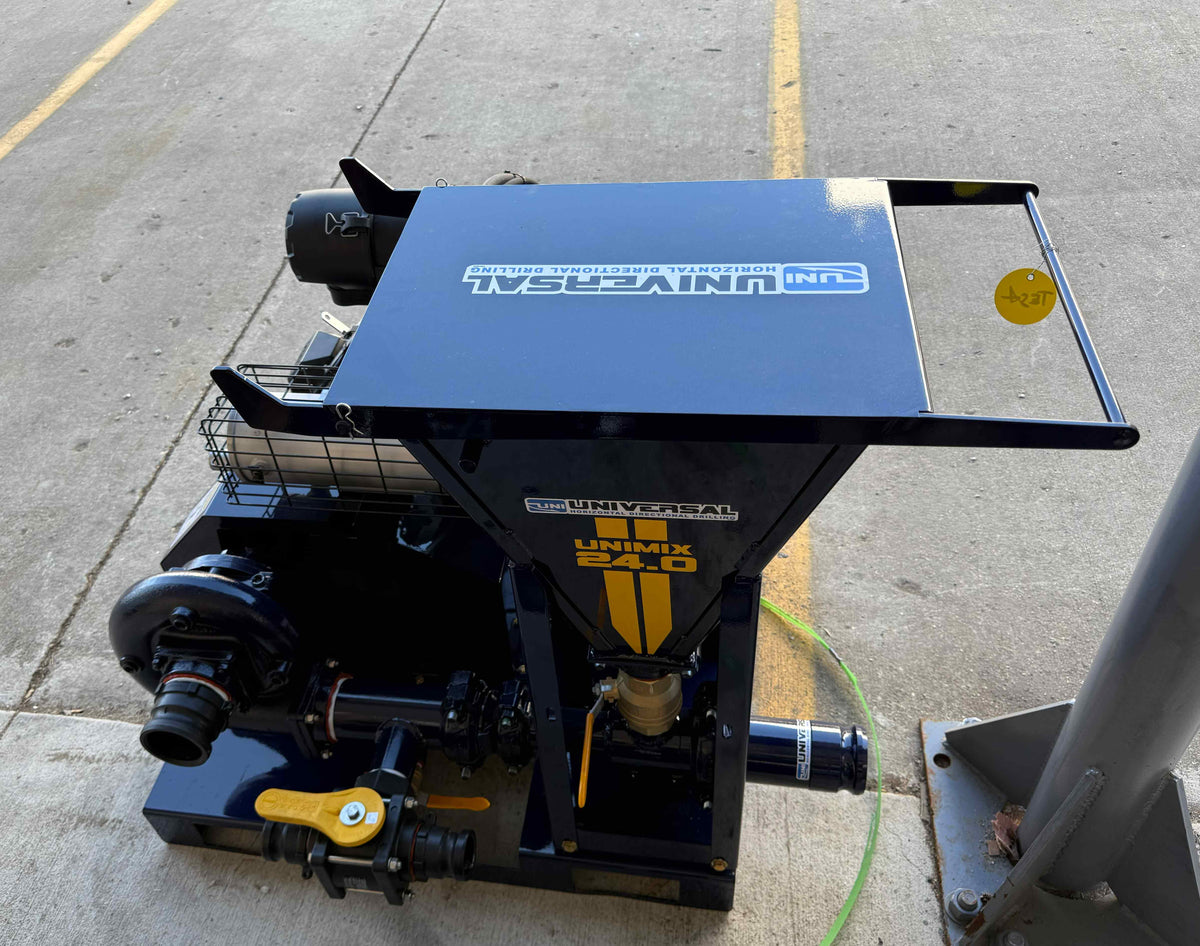

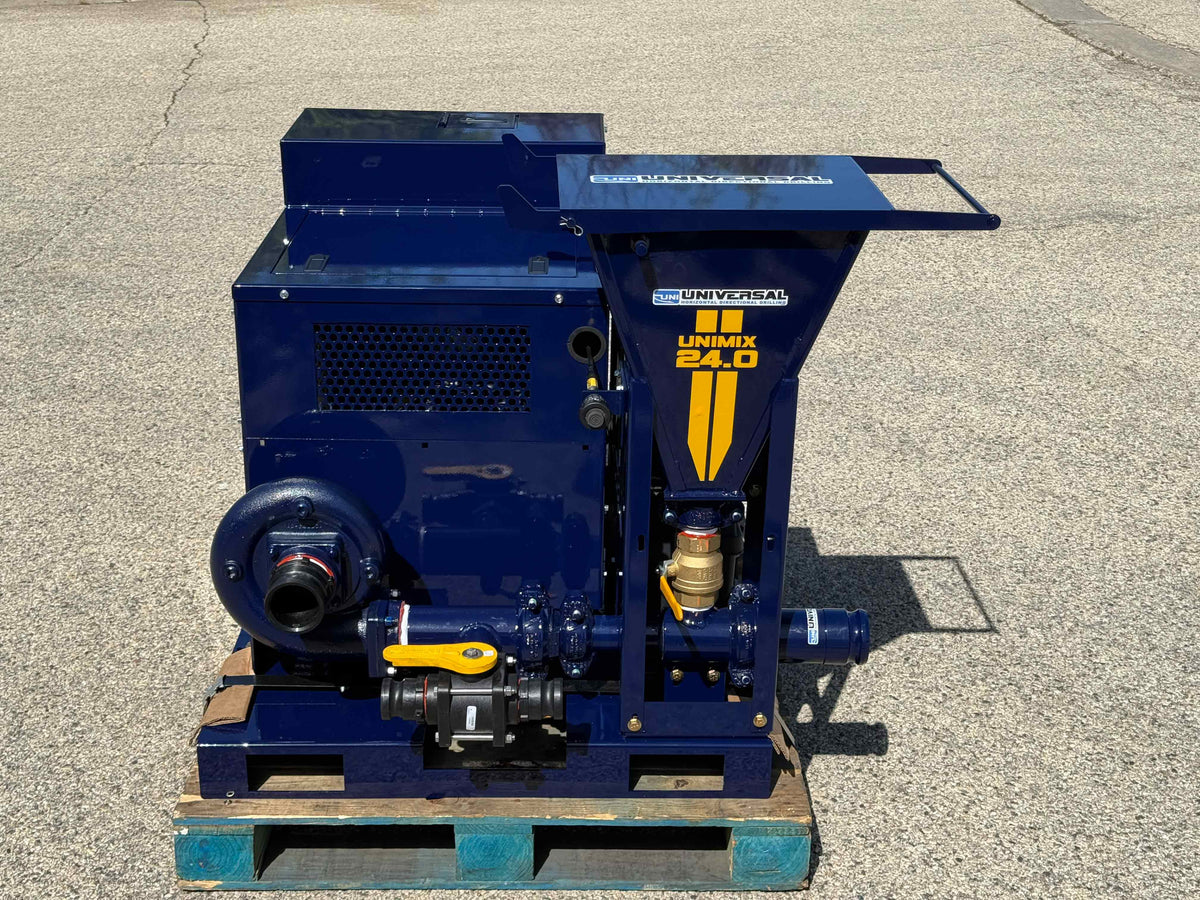

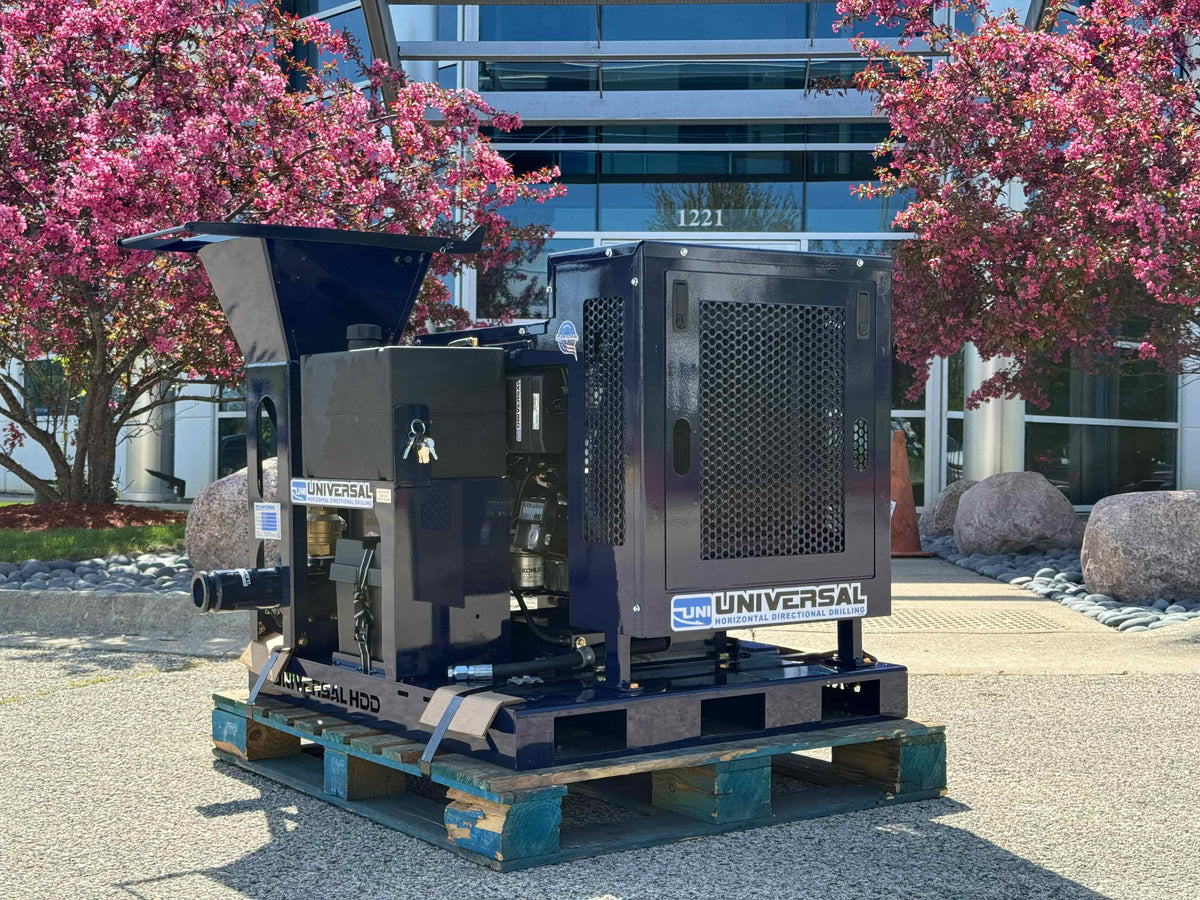

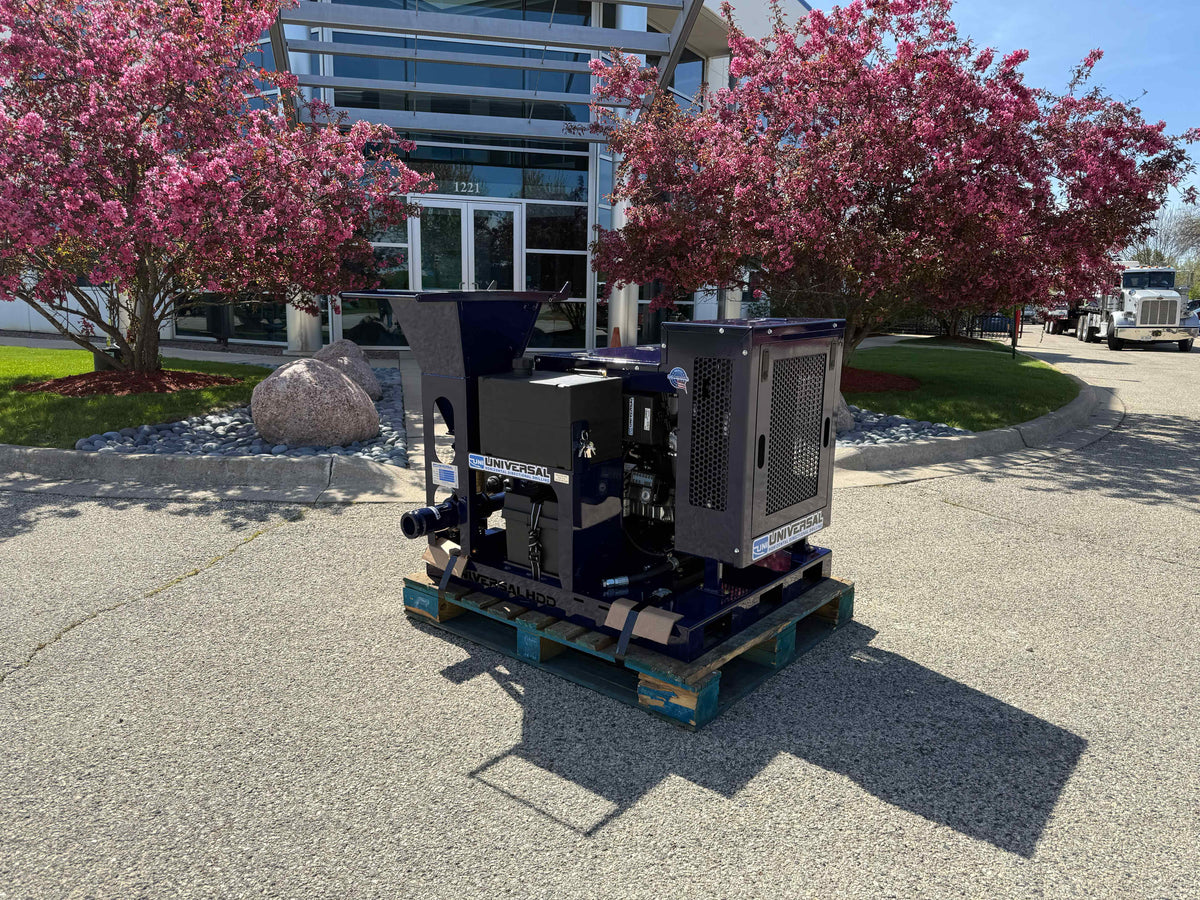

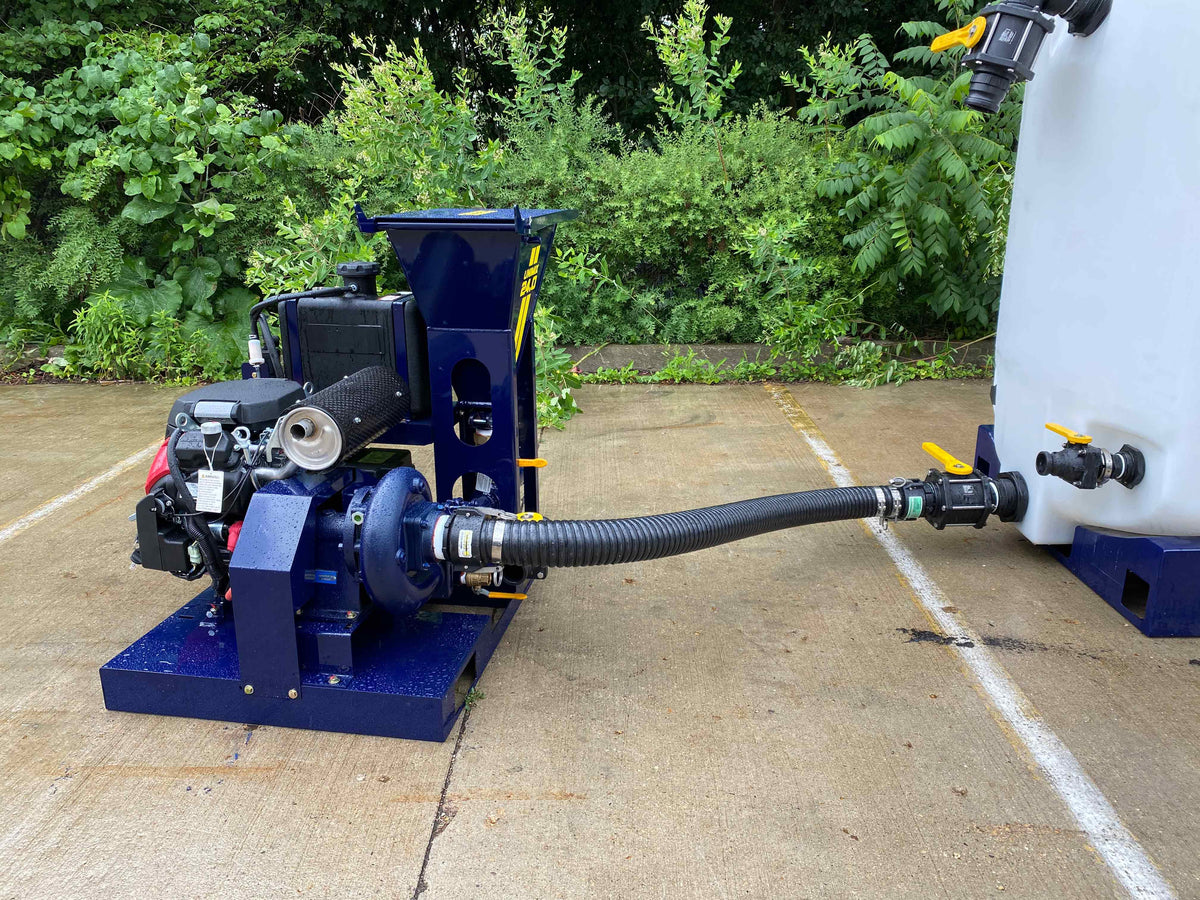

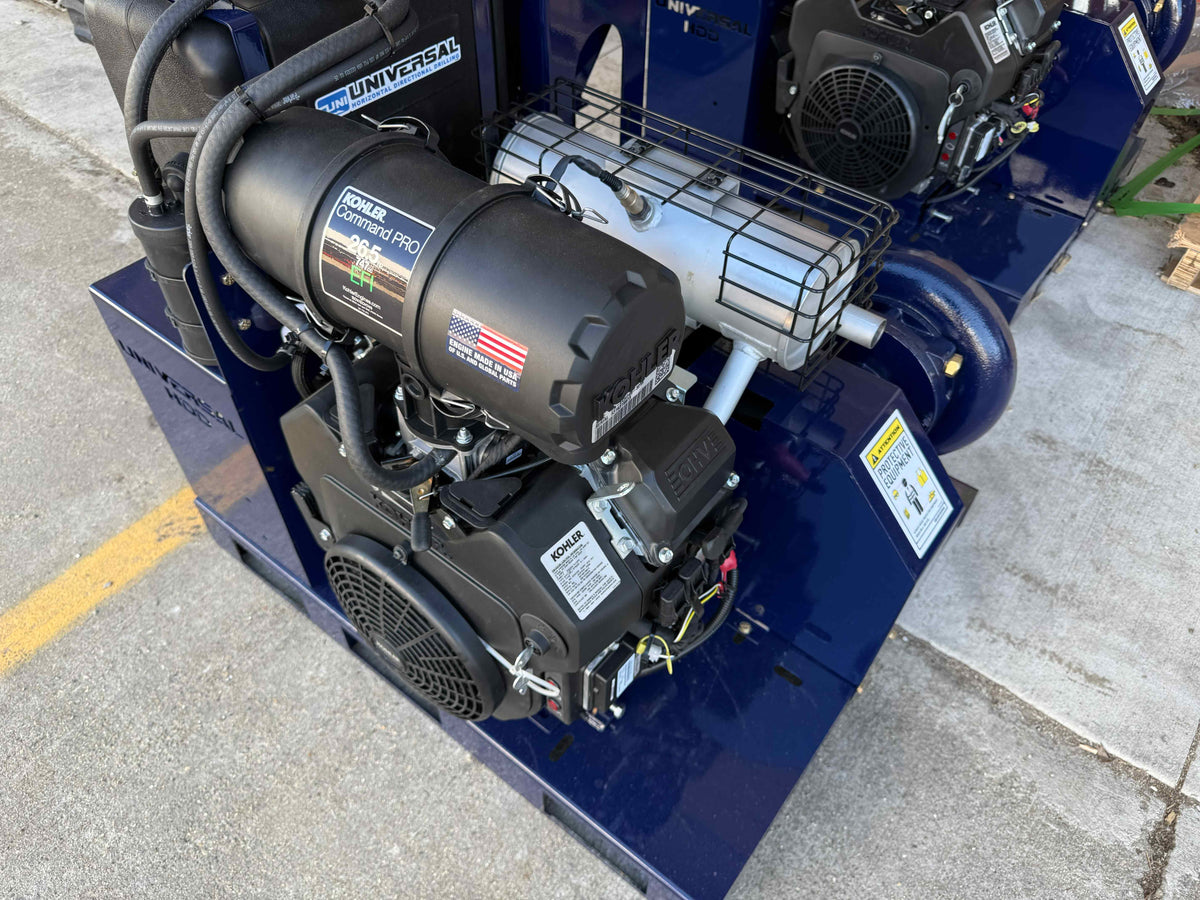

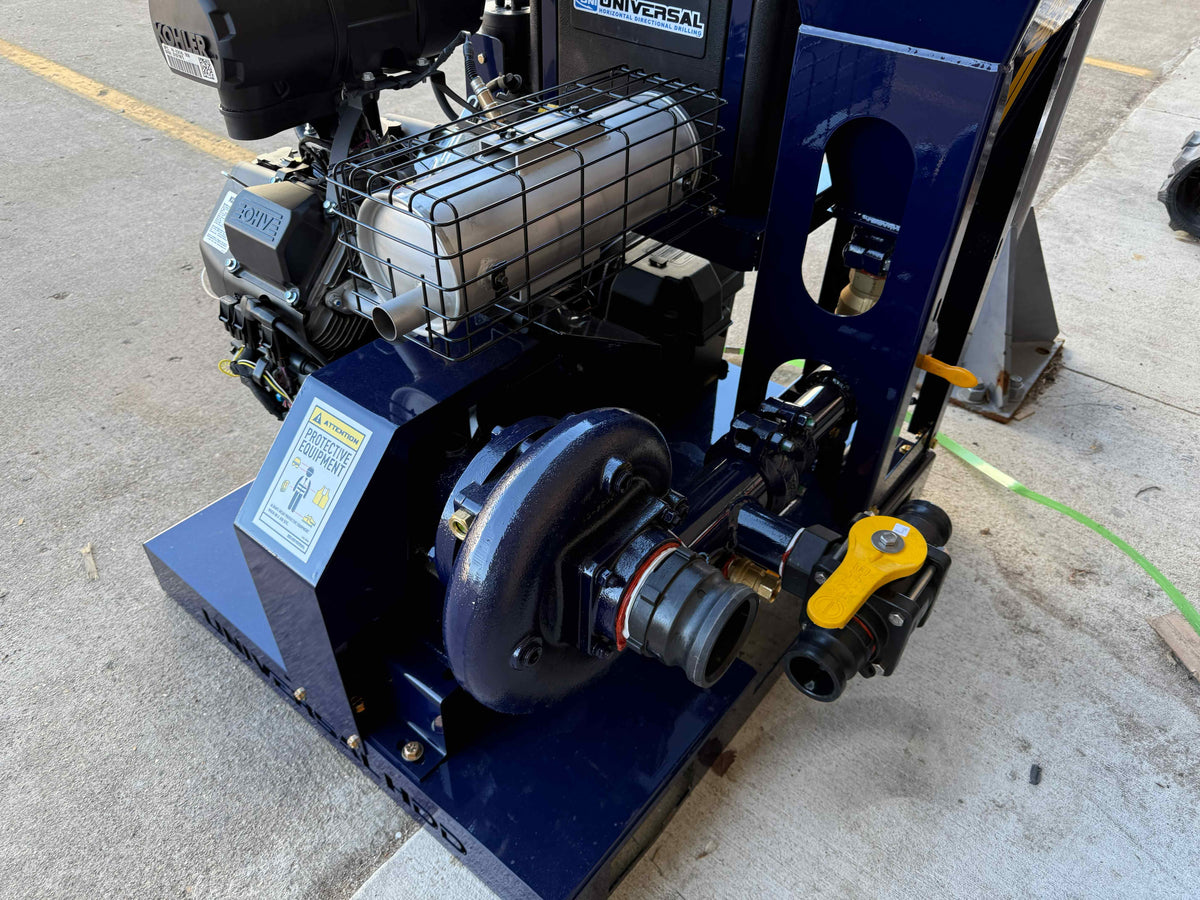

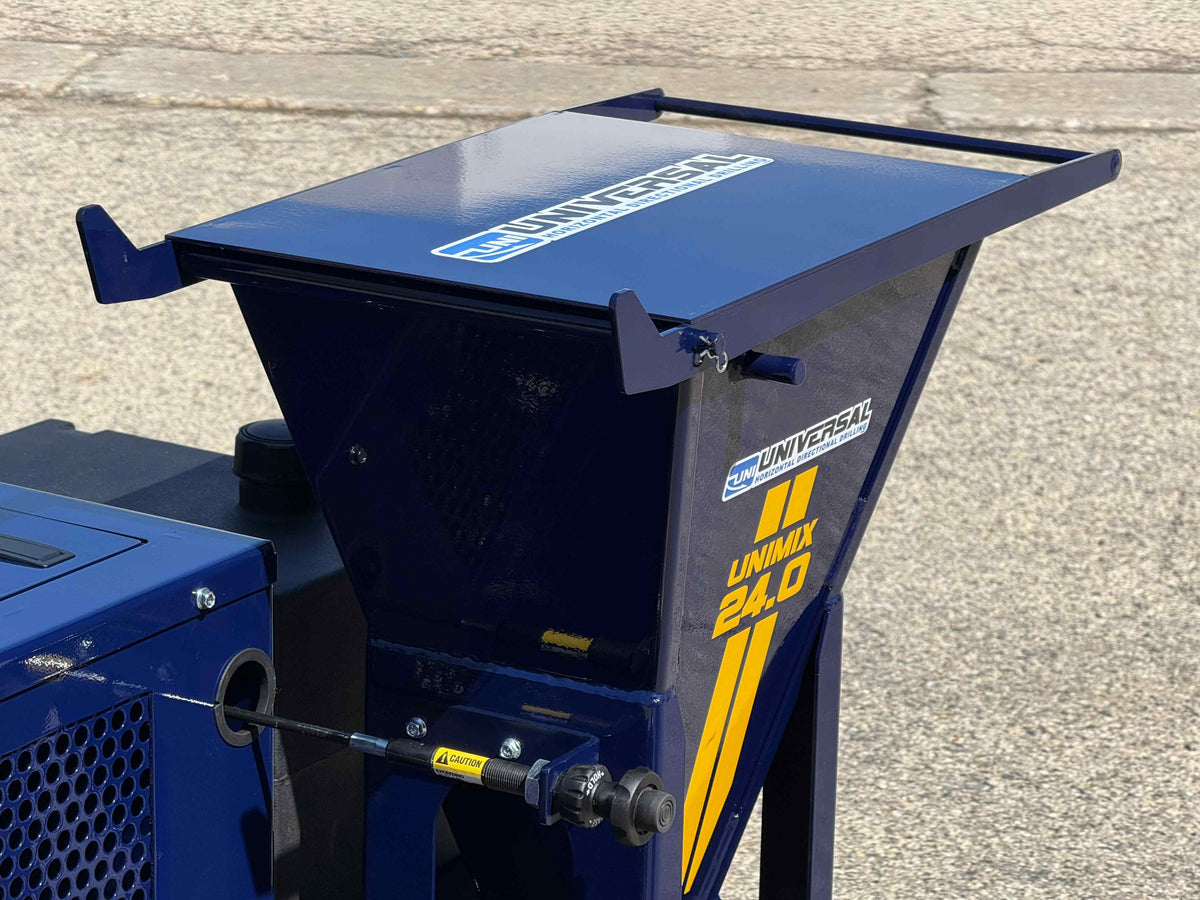

Explore the UNIMIX 24 from multiple angles

Gasoline, Diesel
2-3 days shipping CALL (847) 955-0050

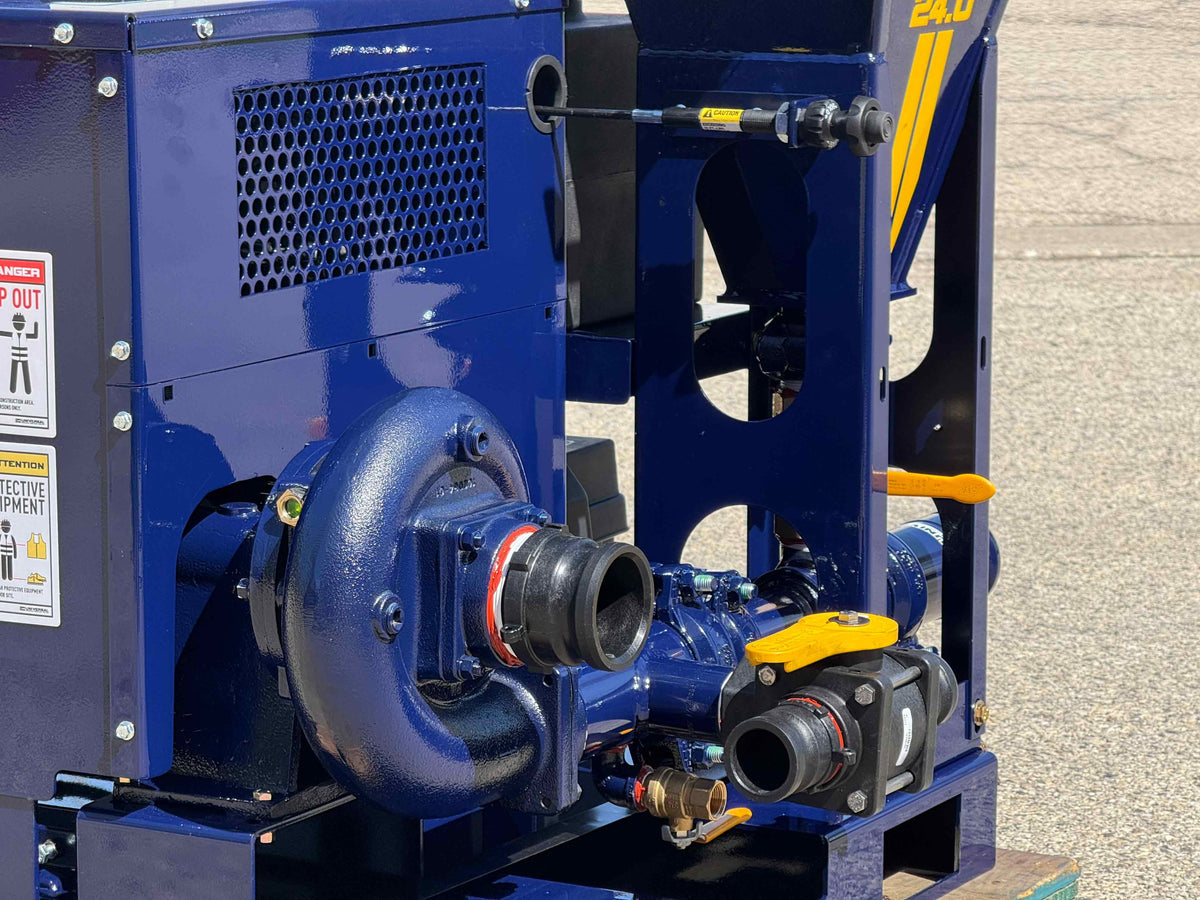

The UNIMIX 24 mud mixing system is a compact and efficient solution designed for drilling fluid preparation in horizontal directional drilling (HDD) operations. Engineered for durability and performance, the system combines a high-capacity centrifugal pump with an integrated Venturi mixing hopper to provide fast and consistent mixing of bentonite and drilling additives.

With a maximum flow of up to 370 GPM, the UNIMIX 24 delivers reliable slurry preparation for HDD contractors working with small and medium drilling rigs. The Venturi mixing system ensures efficient powder induction and uniform

mixing, helping maintain optimal drilling fluid properties and improving overall drilling performance.

The UNIMIX 24 is available in three power configurations: gasoline, diesel, and electric, allowing the system to be used in a wide range of jobsite environments. Gasoline and diesel versions provide автономную operation for remote drilling locations, while the electric model is ideal for industrial sites where a stable power supply is available.

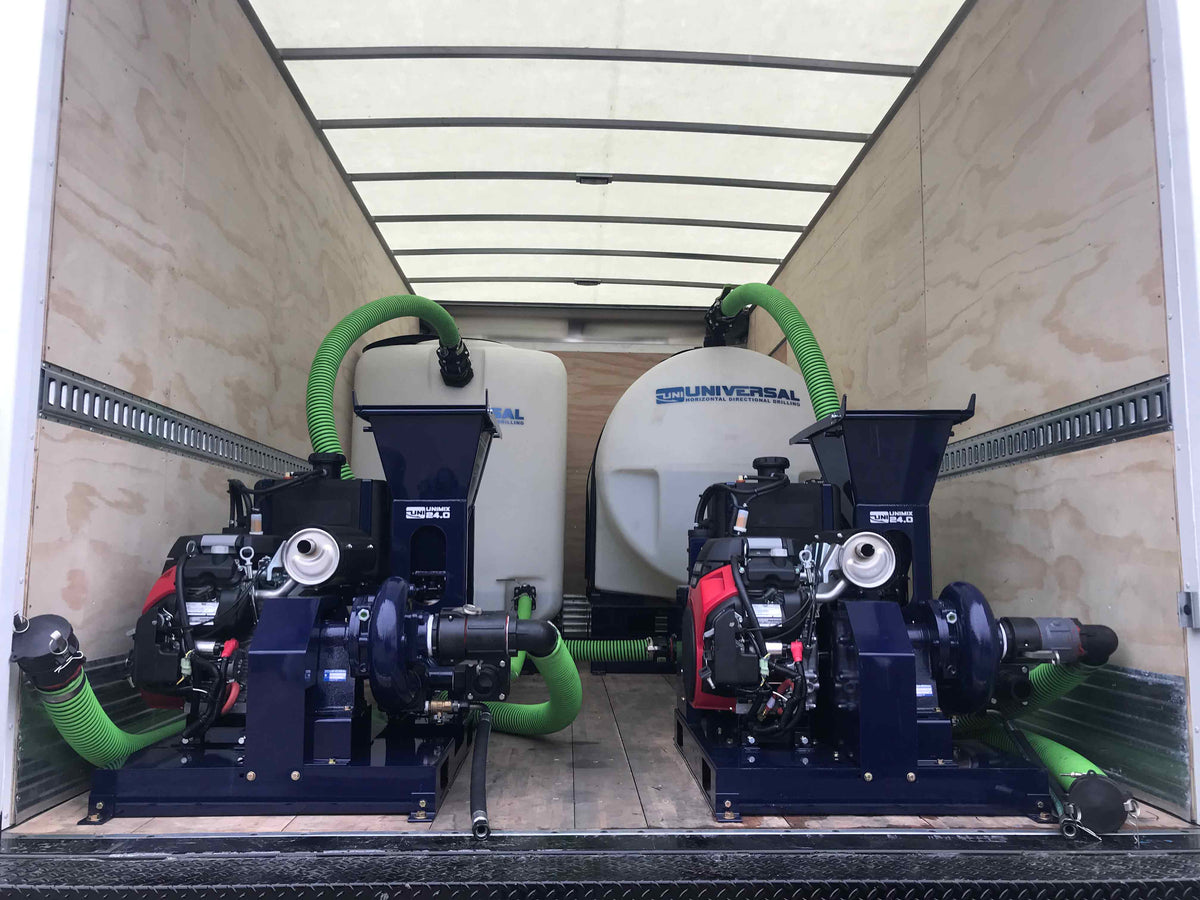

Built on a rugged skid-mounted steel frame, the system includes integrated lifting points and forklift pockets for easy transport and positioning on drilling sites. Designed for long-term durability and operational reliability, the UNIMIX 24 provides contractors with a dependable mud mixing solution for HDD drilling operations.
